Unocode 399 PLUS
3

MACHINE INSTALLATION AND PREPARATION

The key-cutting machine can be installed by the purchaser and does not require any special skills.
It is supplied ready for use and does not need any special set up. However, the operator may have to
control a few things before operating the machine.
3.1 C
HECKING FOR DAMAGE
UNOCODE 39 9 PLUS is solid and compact and will not normally damage if transpor t, unpacking and
installation have all been carried out acco rding to the instructions in th is manual. However , it is always
advisable to check that the machine has not suffered any damage.
3.2 E
NVIRONMENTAL CONDITIONS
To ensure that the best use is made of the key-c utting machine, it is important to place it in a well-aired
area which is not too damp.
The ideal conditions for the machine are:
3.3 P

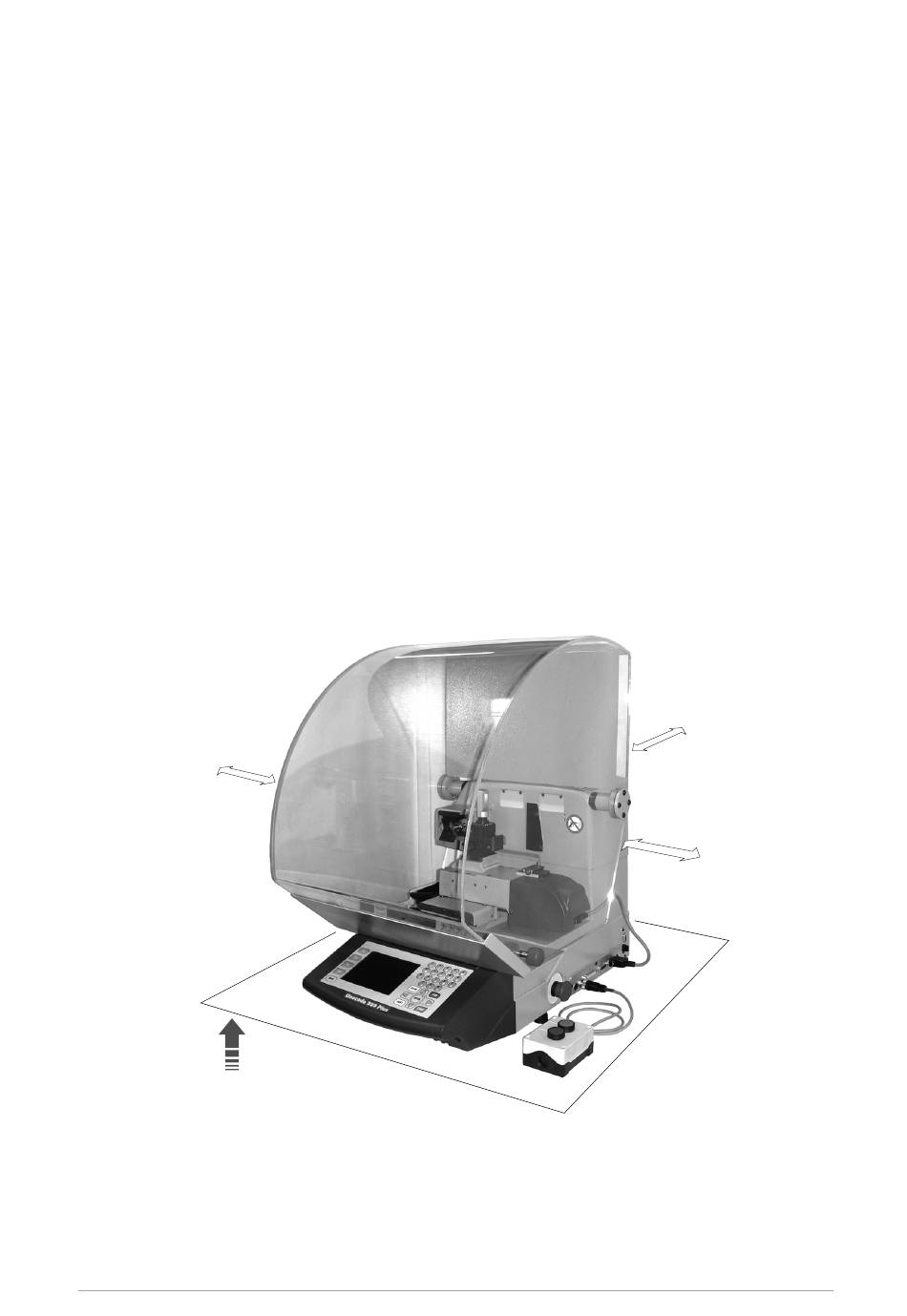

OSITIONING AND INSTALLATION
1) Place the machine on a horizontal surface, solid enough to support the weight of 51 Kg.
- to work with ease, we suggest that the workbench be approximately the height of the operator's
hip.
- it is im portant to leave clearance of at least 30 cm behind the machine and on each side to
ensure proper ventilation.
2) Ensure th at the machines voltage is the same as that of the main s power supply, which must be
properly earthed and provided with a differential switch.
3) Connect the power supply cable to the power supply socket.
30 cm
100 cm
Fig. 9
12
temperature between 10°C and 40°C;
Copyright S ilca 2010
Operating manual - English
relative humidity: approx 60%
30 cm
30 cm
