Operating manual - English
5.8.3

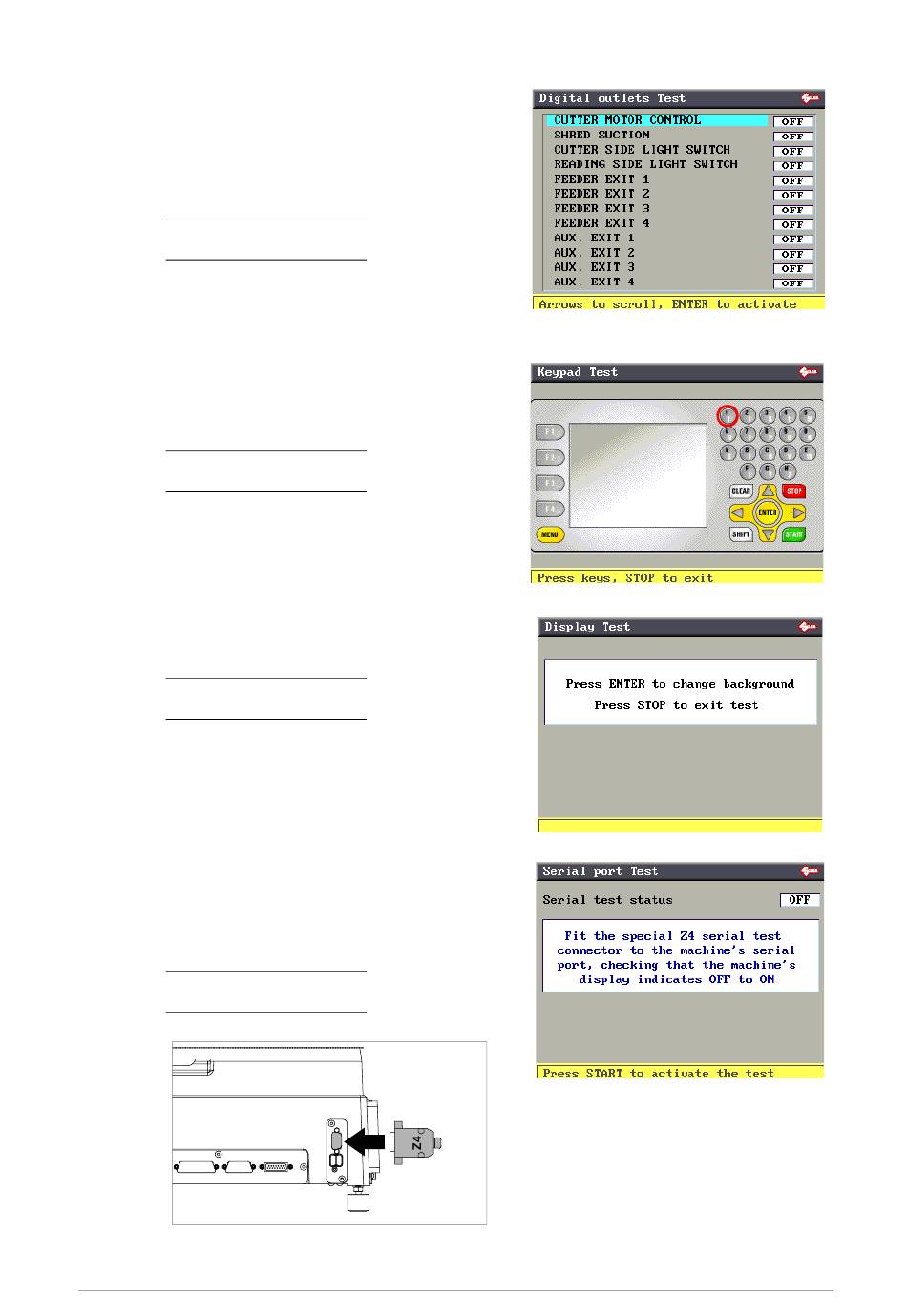

DIGITAL OUTLETS TESTS

Use the u p/down arro w keys to move onto the
required fie ld, lowe r th e safety shiel d an d press
START; it will go from OFF to ON.
- In the case of the cutter, the motor will also start.
- In the case of the cutting side or reading lamp, the
one in question will illuminate momentarily.
Note: if this is not so, contact Silca's Technical
Assistance Dept.
This test (Exit...) can be carried out only whe n an
automatic fe eder (or o ther option al compo nent) is
installed on the machine.
5.8.4

KEYPAD TEST

Press all keys (except STOP) one at time and verify
that for eve ry key pre ssed th e disp lay show s the
same key circle d. Press STOP at the e nd of the
operation to quit the test.
Note: if this is not so, contact Silca's Technical
Assistance Dept.
5.8.5

DISPLAY TEST

Press ENT ER repe atedly to verify chan ges in the
background colour.
Note: if no changes are noticed, contact Silca's
technical assistance department.
Press STOP to exit Test.
5.8.6

SERIAL PORT

Check that the machine's display indicates OFF.
Fit the special (Z4) serial test connector (accessories
provided) to the machine's serial port.
Press START and check that the machi ne's display
indicates OFF to ON.
Note: if the ON/OFF transition is not made, contact
Silca's Technical Assistance Dept.
Fig. 33
