Unocode 399 PLUS

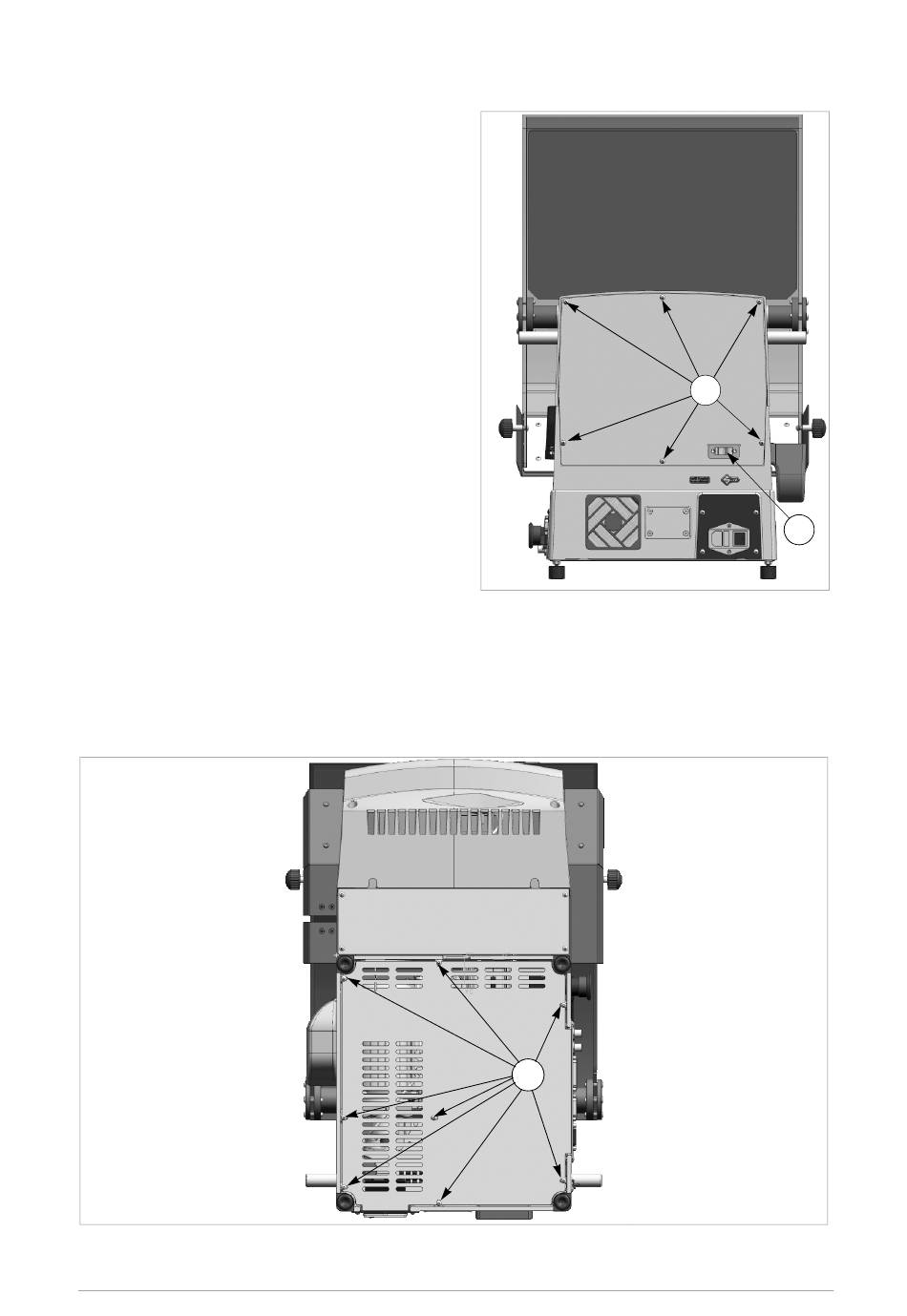

7.8 A
CCESS TO BACK
To gain a ccess to
proceed as follows:
1) turn the machine off and unplug it from its
power supply cable.
2) remove the vacuum system's connector (U2)
(fig. 7.9).
3) unscrew the 6 (M1) scre ws that secu re the
back panel (fig. 7.9) thus removing it.
7.9 A
CCESS TO BOTTOM COMPARTMENT
To gain access to the bottom compartment, proceed as follows:
1) turn the machine off and unplug it from its power supply cable.
2) remove the vacuum system's connector (U2) (fig. 7.9).
3) turn the machine on its back side.
4) remove the machine's bottom panel by unscrewing the 8 (L1) screws.
Fig. 57
70
C
OMPARTMENT
the back c ompartment,
Fig. 56
Copyright S ilca 2010
Operating manual - English
L1
M1
U2
