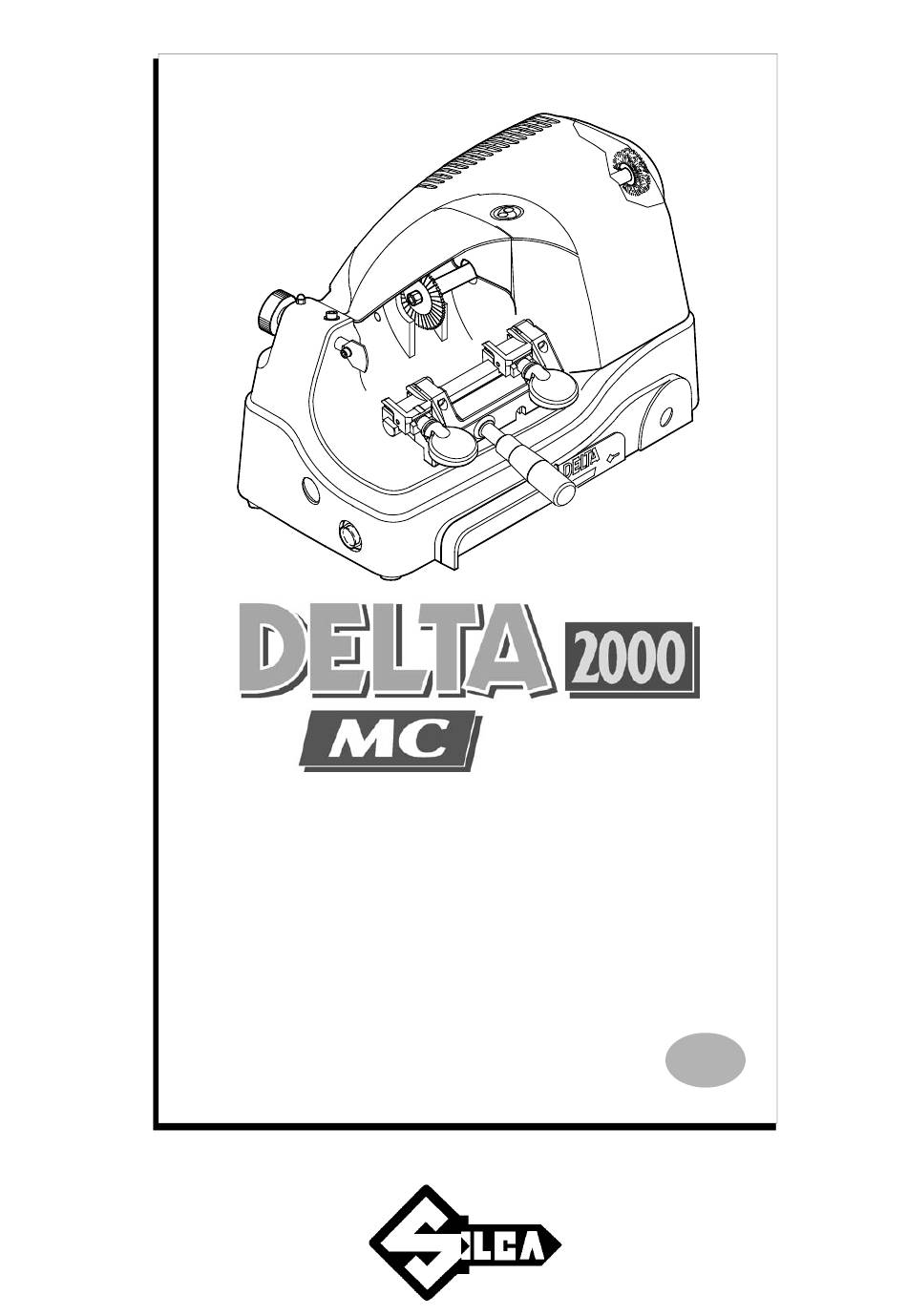

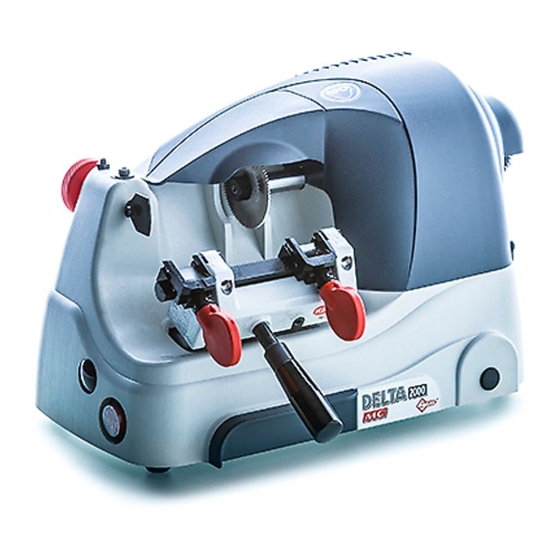

- Page 1 Operating manual Manuale d’uso Gebrauchsanleitung Manuel d’instructions Manual de instrucciones D413875XA vers. ®...
- Page 2 This manual has been drawn up by SILCA S.p.A. All rights reserved. No part of this publication may be reproduced or used in any form or by any means (photocopying, microfilm or other) without the written permission of SILCA S.p.A. Edition: February 2008 Printed in Vittorio Veneto by SILCA S.p.A.
-
Page 3: Table Of Contents
INDEX TRANSPORT ....................3 Packing ....................3 Transport ....................3 Unpacking .....................3 Machine handling ..................3 WORKING PARTS ..................4 MACHINE DESCRIPTION ................5 Technical data ..................6 Electrical circuit ..................7 ACCESSORIES PROVIDED ................8 MACHINE INSTALLATION and PREPARATION ..........9 Checking for damage ................9 Environmental conditions ..............9 Positioning . - Page 5 GUIDE TO THE MANUAL This manual has been produced to serve as a guide for users of the DELTA 2000 MC key-cutting ma- chine. Read it carefully; it is essential if you wish to operate your machine safely and efficiently.
- Page 6 The material used in the manufacture of this machine and the components employed during use of the machine are not dangerous and their use complies with standards. The DELTA 2000 MC key-cutting machine must be installed and used in the way laid down by the man- ufacturer, as illustrated in this manual.
-
Page 7: Transport
1 set of accessories. Machine handling When the DELTA 2000 MC key-cutting machine has been unpacked, place it directly on its workbench. This operation can be carried out by one person, firmly holding the base, and no other part, to lift and carry the machine. -
Page 8: Working Parts
DELTA 2000 MC Operating manual - English WORKING PARTS Fig. 5 A - right-hand clamp A1- right-hand clamp knob B - left-hand clamp B1- left-hand clamp knob C - tip stop C1- tip stop grub screw D - carriage D1 - carriage lever handle... -
Page 9: Machine Description
Cutting tool (H) The cutting tool is the part of the DELTA 2000 MC machine which cuts the key blank. The tool is in HSS super rapid steel and is protected by a special cover (I) to ensure safe operation. -
Page 10: Technical Data
DELTA 2000 MC Operating manual - English Technical data ELECTRICAL PROPERTIES: 230V - 50Hz 190W 1,5A CUTTING TOOL: Super Rapid Steel (HSS) MOTOR: One speed single phase 230V-50Hz 1350 rpm 0,145 Kw CARRIAGE MOVEMENT: manual CLAMPS: rocker SAFETY DEVICE: supplied with the 230V machines; on request for other voltages... -
Page 11: Electrical Circuit
DELTA 2000 MC Electrical circuit The DELTA 2000 MC key-cutting machine is provided with a motor which performs at 1350 rpm with con- sumption of approx. 0,19 kw and absorption of 1,5A. The main parts of the electrical circuit are listed below:... -
Page 12: Accessories Provided
Operating manual - English ACCESSORIES PROVIDED To ensure trouble-free working with t he DELTA 2000 MC, it is advisable to always have certain spare parts on hand. It is advisable to always have a tool box containing: tools, cutting tools, brushes and small replacement parts. -
Page 13: Machine Installation And Preparation
However, some checks and preparation for use need to be carried out by the operator. Checking for damage The DELTA 2000 MC is solid and compact and will not normally damage if transport, unpacking and in- stallation have all been carried out according to the instructions on the packing box. -
Page 14: Description Of Work Station
Carriage lever handle (D1). Fig. 8 Separate parts The detachable parts of the machine are packed separately and must be fitted to the DELTA 2000 MC by the operator, as follows: OWER CABLE First connect the safety device (X) to the key-cutting machine and the power cable then connect the free end of the power cable to the power mains (fig. -
Page 15: Regulation And Use Of The Machine
REGULATION AND USE OF THE MACHINE Checking and Setting The cutting tool on the DELTA 2000 MC is used to cut the key blanks and must be periodically checked and replaced. Periodically, and whenever the cutting tool is replaced, check the key-cutting machine settings, to ensure perfect machine efficiency. -
Page 16: Cutting Operations
DELTA 2000 MC Operating manual - English Cutting operations WARNING: to work in complete safety, pay special attention to the following recommendations: • Always work with dry hands. • Check that the machine is properly earthed. • Use the protective goggles, even if the cutting tool is fitted with a protective shield. - Page 17 Operating manual - English DELTA 2000 MC EY CUTTING 1) Fit the original key into the left-hand jaw (B) and secure in the way described above; 2) fit the key blank into the right-hand jaw (A) and secure in the way described above;...
-
Page 18: Maintenance
‘CE’ mark is guaranteed only if original spare parts provided by the manufacturer are used. Although the DELTA 2000 MC key-cutting machine does not require special maintenance, it is advisable to check and, if necessary, replace the parts subject to wear (cutting tool, brush, tracer point). -
Page 19: Tracer Point Replacement
Operating manual - English DELTA 2000 MC Tracer point replacement To replace the tracer point (G), proceed as follows (fig. 17): WARNING: unplug the machine from the mains. 1) loosen and remove the tracer point locking screw (G1). 2) remove the tracer point. -
Page 20: Disposal
DELTA 2000 MC Operating manual - English DISPOSAL For correct disposal please refer to current standards. INFORMATION FOR USERS OF PROFESSIONAL EQUIPMENT From "Actuation of Directive 2012/19/EU regarding Waste Electrical and Elec- tronic Equipment (WEEE)" The symbol of a crossed waste bin found on equipment or its packing indicates that at the end of the product’s useful life it must be collected separately from other waste so that it can be properly treated... -
Page 21: Assistance
Service Centres. How to request service The guarantee attached to DELTA 2000 MC key-cutting machine ensures free repairs or replacements of faulty parts within 24 months of purchase. All other service calls must be arranged by the cu stomer with Silca or with a Silca Service Centre. - Page 22 IEC 801-4 Standards | 97 | European Union DIRECTIVE 2006/95/CE (Low Voltage) and with the EN 60204-1 EN 60950 Standards Claudio Tomasella of the Silca S.p.A. Research & Development Division is authorized to create a Technical File. General Manager Basic Production Center...
- Page 23 SILCA S.p.A. Via Podgora, 20 (Z.I.) 31029 VITTORIO VENETO (TV) Tel. 0438 9136 Fax 0438 913800 E-mail: silca@silca.it www.silca.biz Members of the Kaba Group...
