Configuring the MVI56E-MCMR Module
User Manual
2

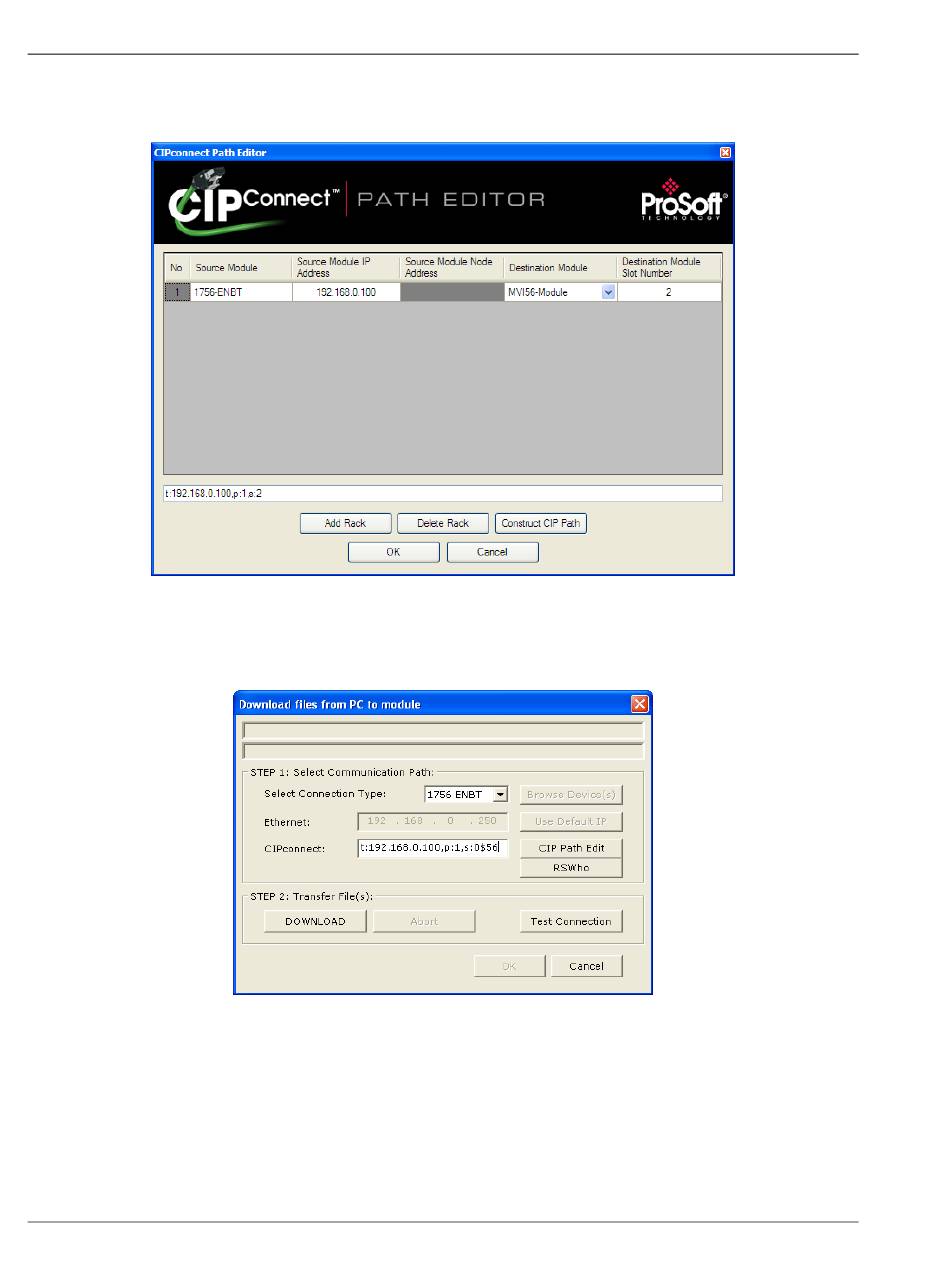

Configure the path as shown in the following illustration, and click
C
ONSTRUCT
Click OK to close the CIPconnect Path Editor and return to the Download
dialog box.
3
Check the new path in the Download dialog box.
Page 98 of 223
CIP P
to build the path in text format.
ATH
MVI56E-MCMR ♦ ControlLogix Platform
Modbus Communication Module with Reduced Data Block
ProSoft Technology, Inc.
