Your first task is to add the MVI56E-MCMR module to the project.
1 Use the mouse to select D
right mouse button to open a shortcut menu.
2 On the shortcut menu, select C

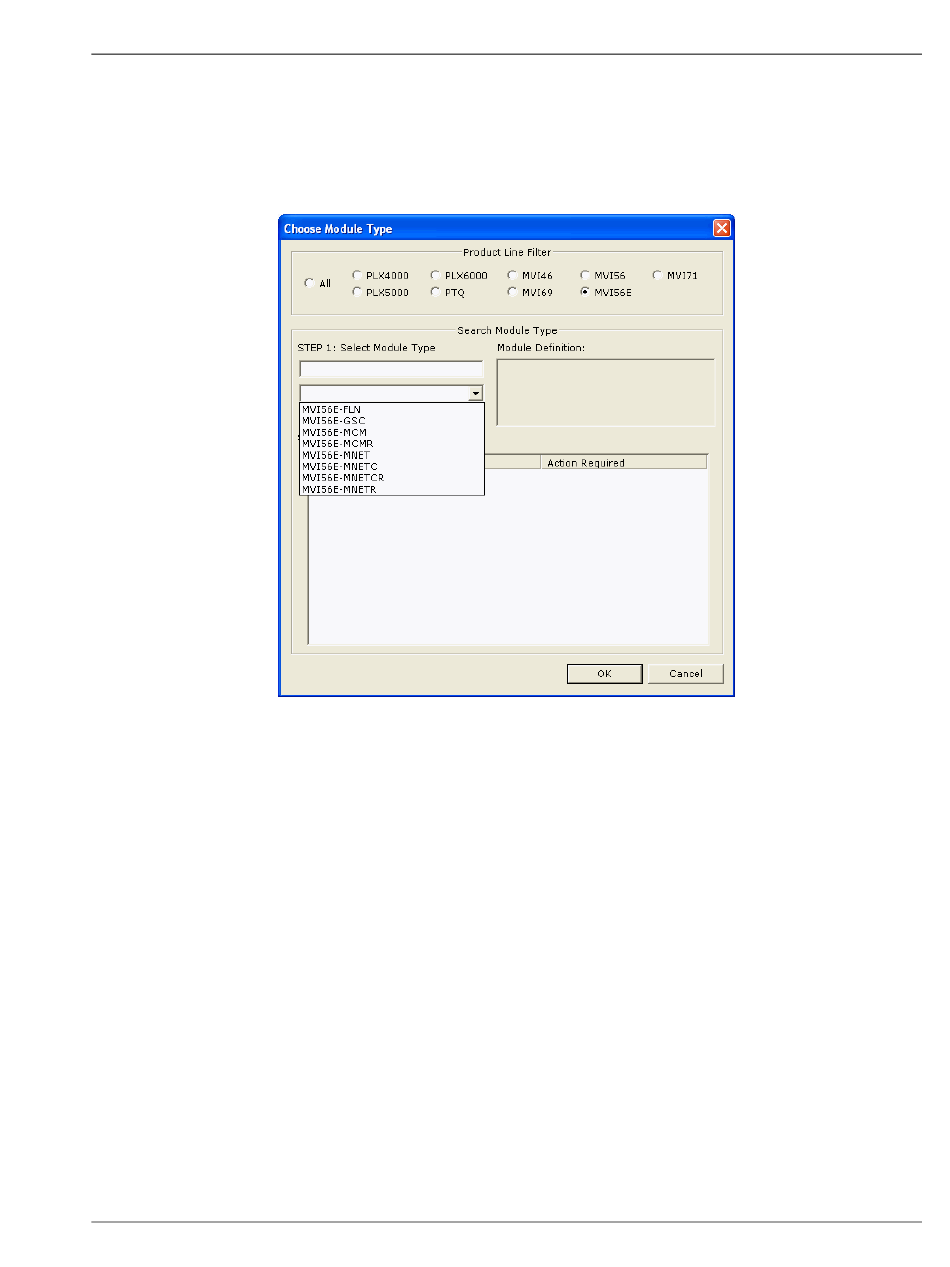

Choose Module Type dialog box.
3 In the Product Line Filter area of the dialog box, select MVI56E. In the Select
Module Type dropdown list, select MVI56E-MCMR, and then click OK to save
your settings and return to the ProSoft Configuration Builder window.
