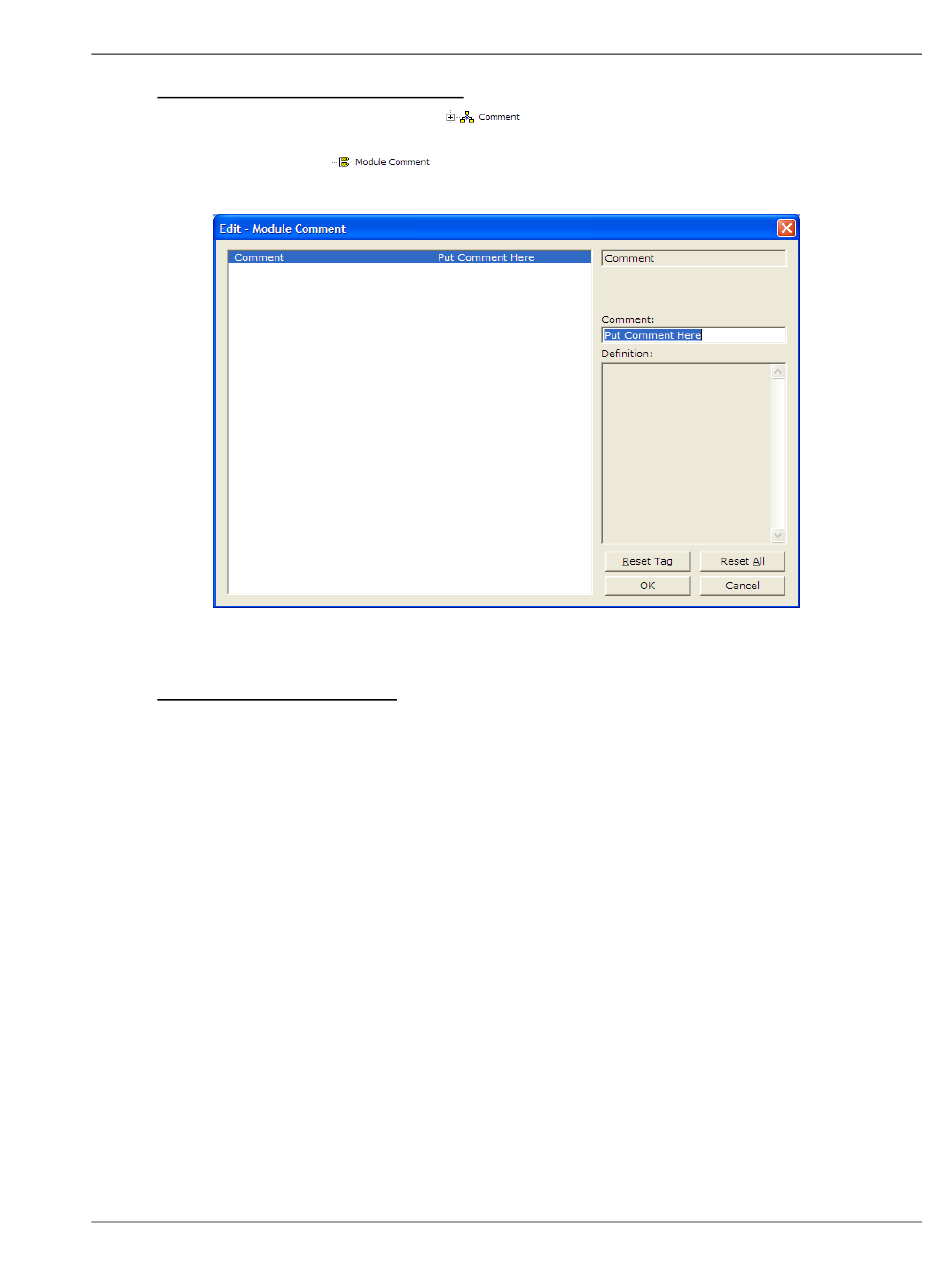

Creating Optional Comment Entries
1 Click the [+] to the left of the
comments.
2 Double-click the
appears.
3 Enter your comment and click OK to save your changes.
Printing a Configuration File
1 Select the module icon, and then click the right mouse button to open a
shortcut menu.
2 On the shortcut menu, choose V
View Configuration window.
3 In the View Configuration window, open the F
This action opens the Print dialog box.
4 In the Print dialog box, choose the printer to use from the drop-down list,
select printing options, and then click OK.
ProSoft Technology, Inc.
icon to expand the module
icon. The Edit - Module Comment dialog box
C
IEW ONFIGURATION
menu, and choose P
ILE
Configuring the MVI56E-MCMR Module
. This action opens the
RINT
