Diagnostics and Troubleshooting
User Manual
5.1

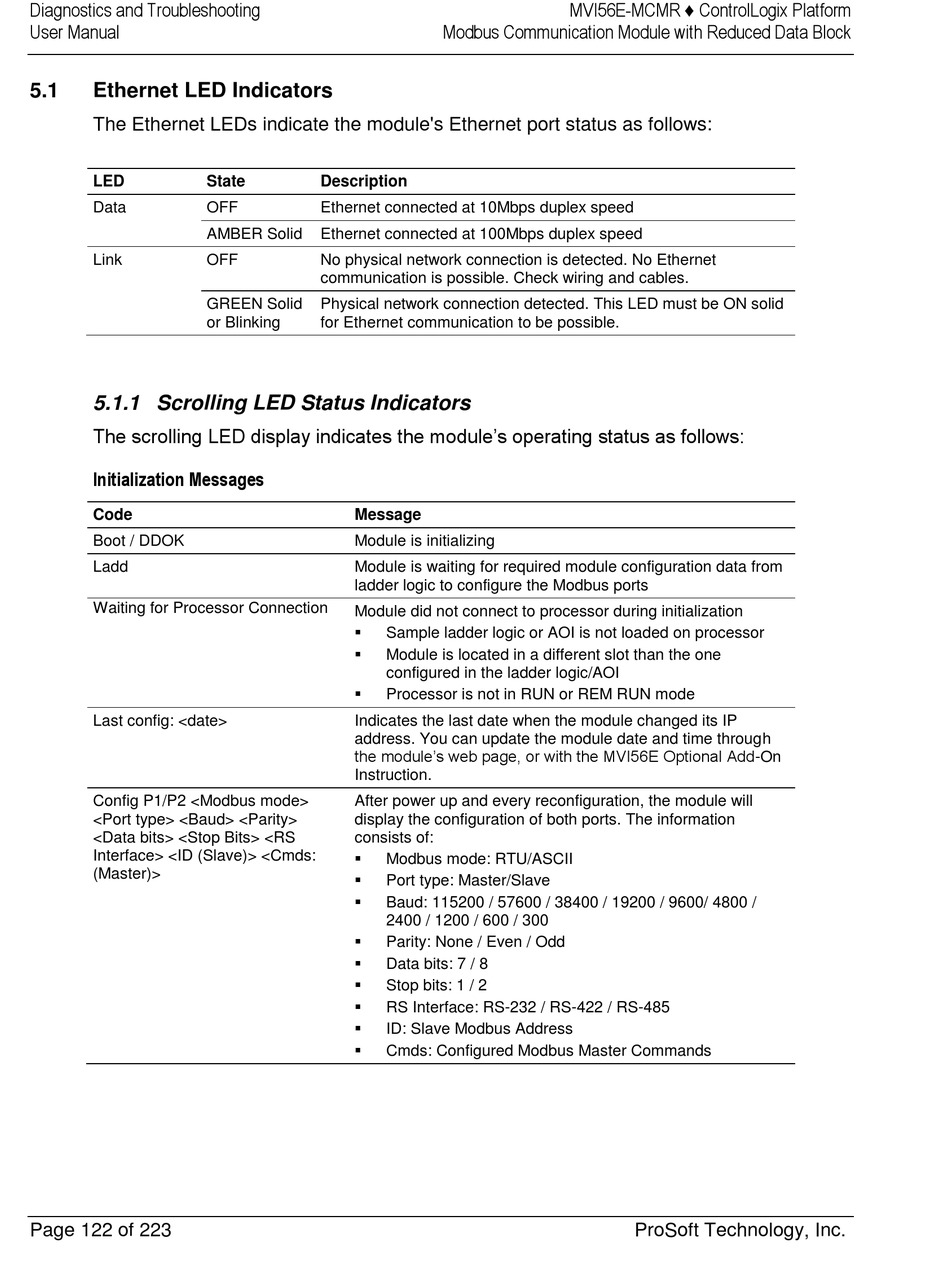

Ethernet LED Indicators

The Ethernet LEDs indicate the module's Ethernet port status as follows:
LED State
Data OFF
AMBER Solid
Link OFF
GREEN Solid
or Blinking

5.1.1 Scrolling LED Status Indicators

The scrolling LED display indicates the module's operating status as follows:
Initialization Messages
Code
Boot / DDOK
Ladd
Waiting for Processor Connection
Last config: <date>
Config P1/P2 <Modbus mode>
<Port type> <Baud> <Parity>
<Data bits> <Stop Bits> <RS
Interface> <ID (Slave)> <Cmds:
(Master)>
Page 122 of 223
Modbus Communication Module with Reduced Data Block
Description
Ethernet connected at 10Mbps duplex speed
Ethernet connected at 100Mbps duplex speed
No physical network connection is detected. No Ethernet
communication is possible. Check wiring and cables.
Physical network connection detected. This LED must be ON solid
for Ethernet communication to be possible.
Message
Module is initializing
Module is waiting for required module configuration data from
ladder logic to configure the Modbus ports
Module did not connect to processor during initialization

Sample ladder logic or AOI is not loaded on processor

Module is located in a different slot than the one
configured in the ladder logic/AOI

Processor is not in RUN or REM RUN mode
Indicates the last date when the module changed its IP
address. You can update the module date and time through
the module's web page, or with the MVI56E Optional Add-On
Instruction.
After power up and every reconfiguration, the module will
display the configuration of both ports. The information
consists of:

Modbus mode: RTU/ASCII

Port type: Master/Slave

Baud: 115200 / 57600 / 38400 / 19200 / 9600/ 4800 /
2400 / 1200 / 600 / 300

Parity: None / Even / Odd

Data bits: 7 / 8

Stop bits: 1 / 2

RS Interface: RS-232 / RS-422 / RS-485

ID: Slave Modbus Address

Cmds: Configured Modbus Master Commands
