MVI56E-MCMR ♦ ControlLogix Platform
Modbus Communication Module with Reduced Data Block
2.5

Ethernet Configuration

Use this procedure to configure the Ethernet settings for your module. You must
assign an IP address, subnet mask and gateway address. After you complete
this step, you can connect to the module with an Ethernet cable.
1 Determine the network settings for your module, with the help of your network
administrator if necessary. You will need the following information:
o IP address (fixed IP required) _____ . _____ . _____ . _____
Subnet mask
o
Gateway address
o
Note: The gateway address is optional, and is not required for networks that do not use a default
gateway.

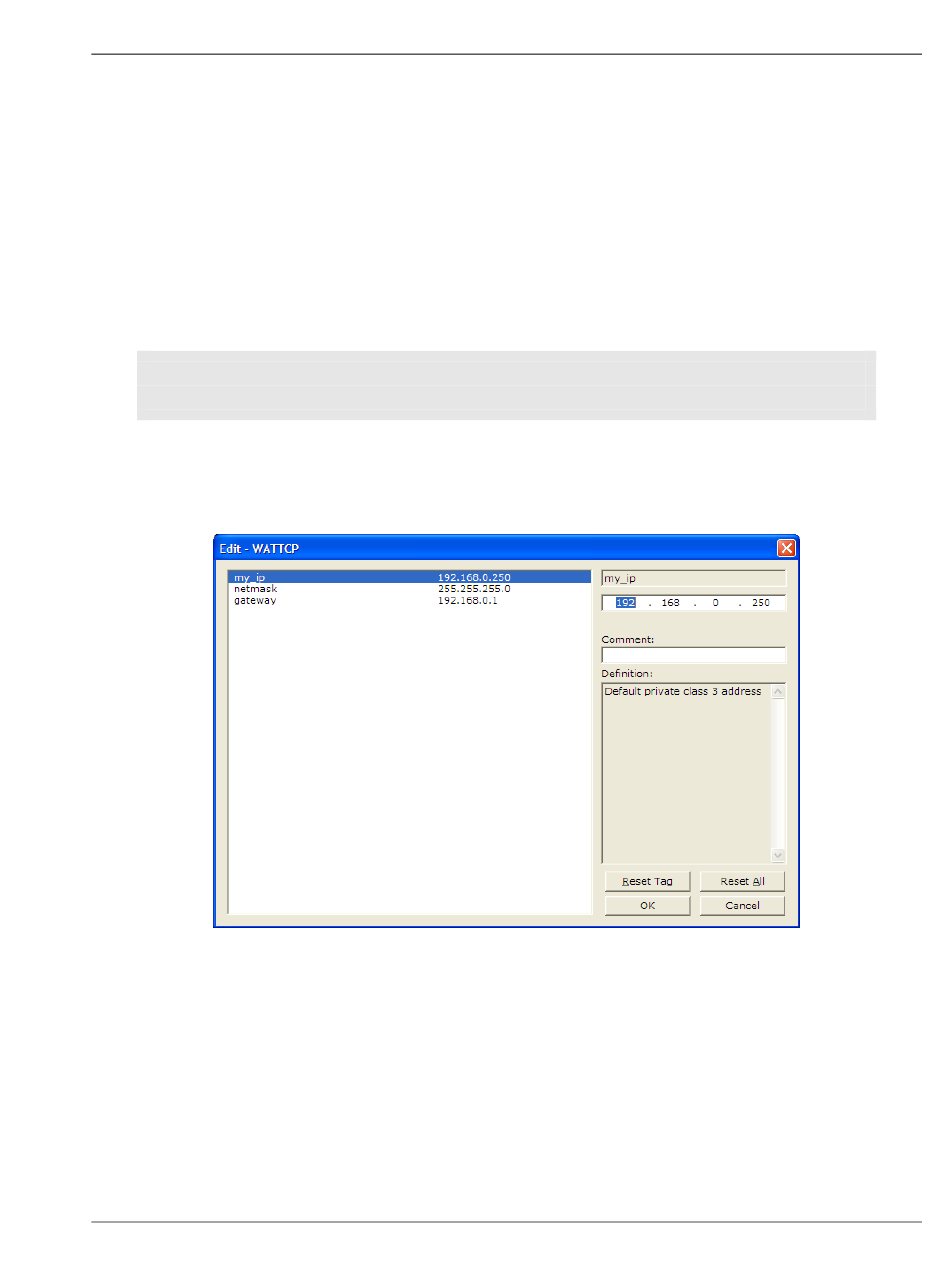

2 Double-click the E
dialog box.
3 Edit the values for my_ip, netmask (subnet mask) and gateway (default
gateway).
4 When you are finished editing, click OK to save your changes and return to
the ProSoft Configuration Builder window.
ProSoft Technology, Inc.
_____ . _____ . _____ . _____
_____ . _____ . _____ . _____
C
THERNET ONFIGURATION
Configuring the MVI56E-MCMR Module
icon. This action opens the Edit
User Manual
Page 87 of 223
