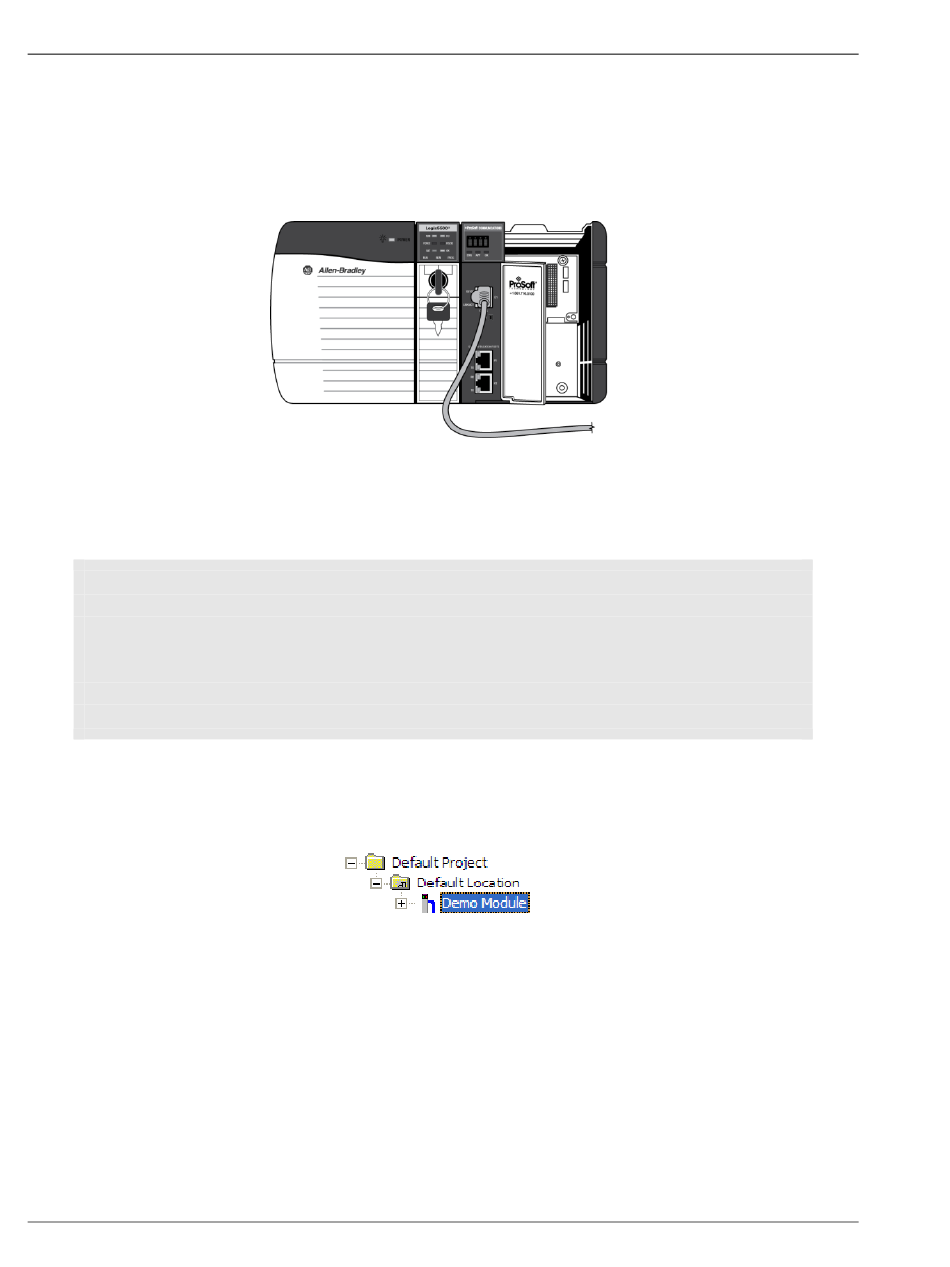

Connecting Your PC to the Module's Ethernet Port

ith the module securely mounted, connect one end of the Ethernet cable to the
C (E1) Port, and the other end to an Ethernet hub or switch accessible from
ONFIG
the same network as your PC. Or, you can connect directly from the Ethernet
Port on your PC to the C

2.6.1 Setting Up a Temporary IP Address

Important: ProSoft Configuration Builder locates MVI56E-MCMR modules through UDP broadcast
messages. These messages may be blocked by routers or layer 3 switches. In that case, ProSoft
Discovery Service will be unable to locate the modules.
To use ProSoft Configuration Builder, arrange the Ethernet connection so that there is no router/
layer 3 switch between the computer and the module OR reconfigure the router/ layer 3 switch to
allow routing of the UDP broadcast messages.
1 In the tree view in ProSoft Configuration Builder, select the MVI56E-MCMR
module.
Page 88 of 223
Modbus Communication Module with Reduced Data Block
(E1) Port on the module.
