Configuring the MVI56E-MCMR Module
User Manual

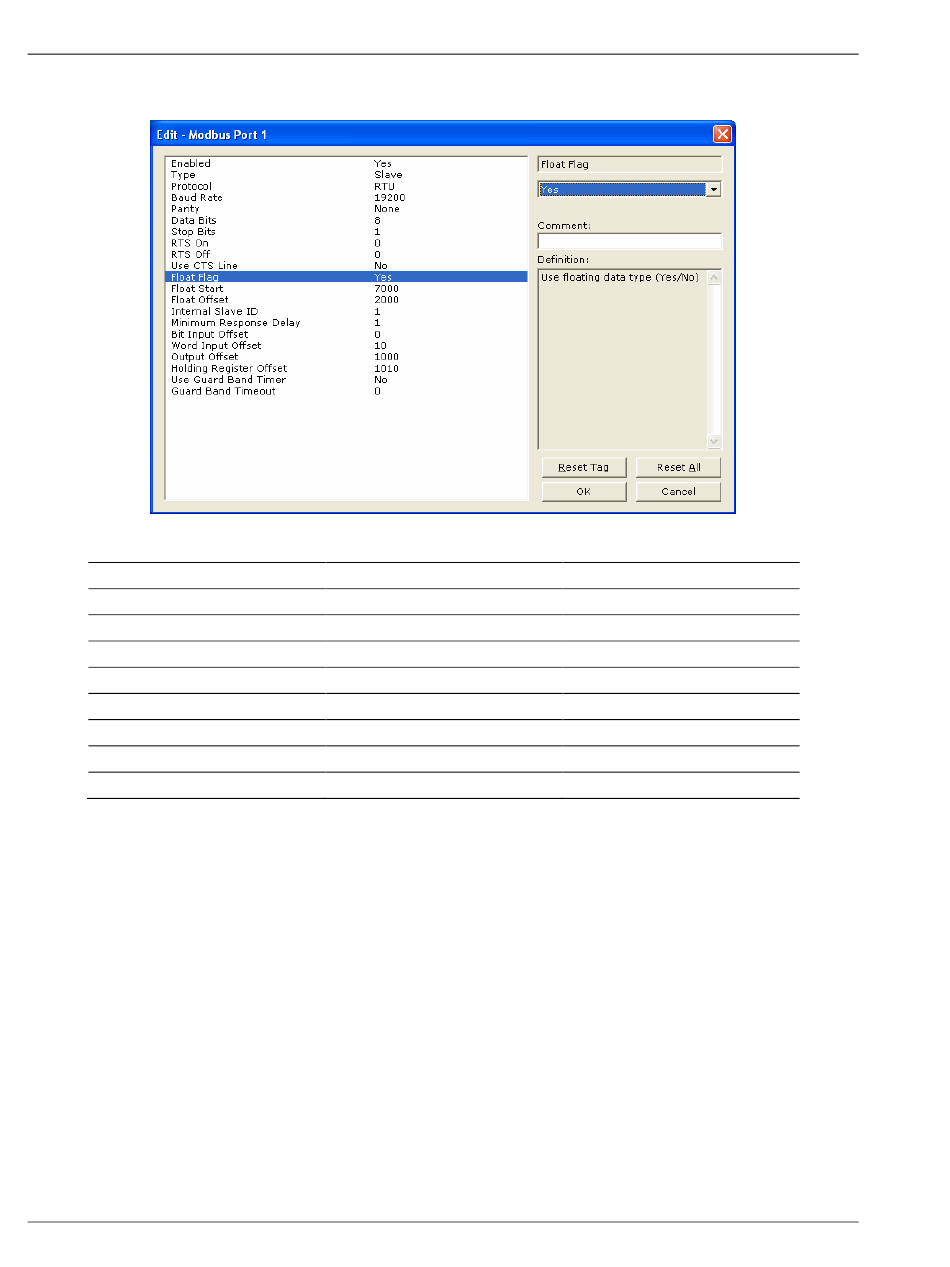

Here is a sample configuration for the module.
With the above configuration, this would be the addressing for the module.
Module Address
100
102
104
110
120
200
300
500
Page 86 of 223
Modbus Communication Module with Reduced Data Block
Modbus Address
47001
47002
47003
47006
47011
47051
47101
47201
MVI56E-MCMR ♦ ControlLogix Platform
Tag Address
MCMR.DATA.WriteData[100]
MCMR.DATA.WriteData[102]
MCMR.DATA.WriteData[104]
MCMR.DATA.WriteData[110]
MCMR.DATA.WriteData[120]
MCMR.DATA.WriteData[200]
MCMR.DATA.WriteData[300]
MCMR.DATA.WriteData[500]
