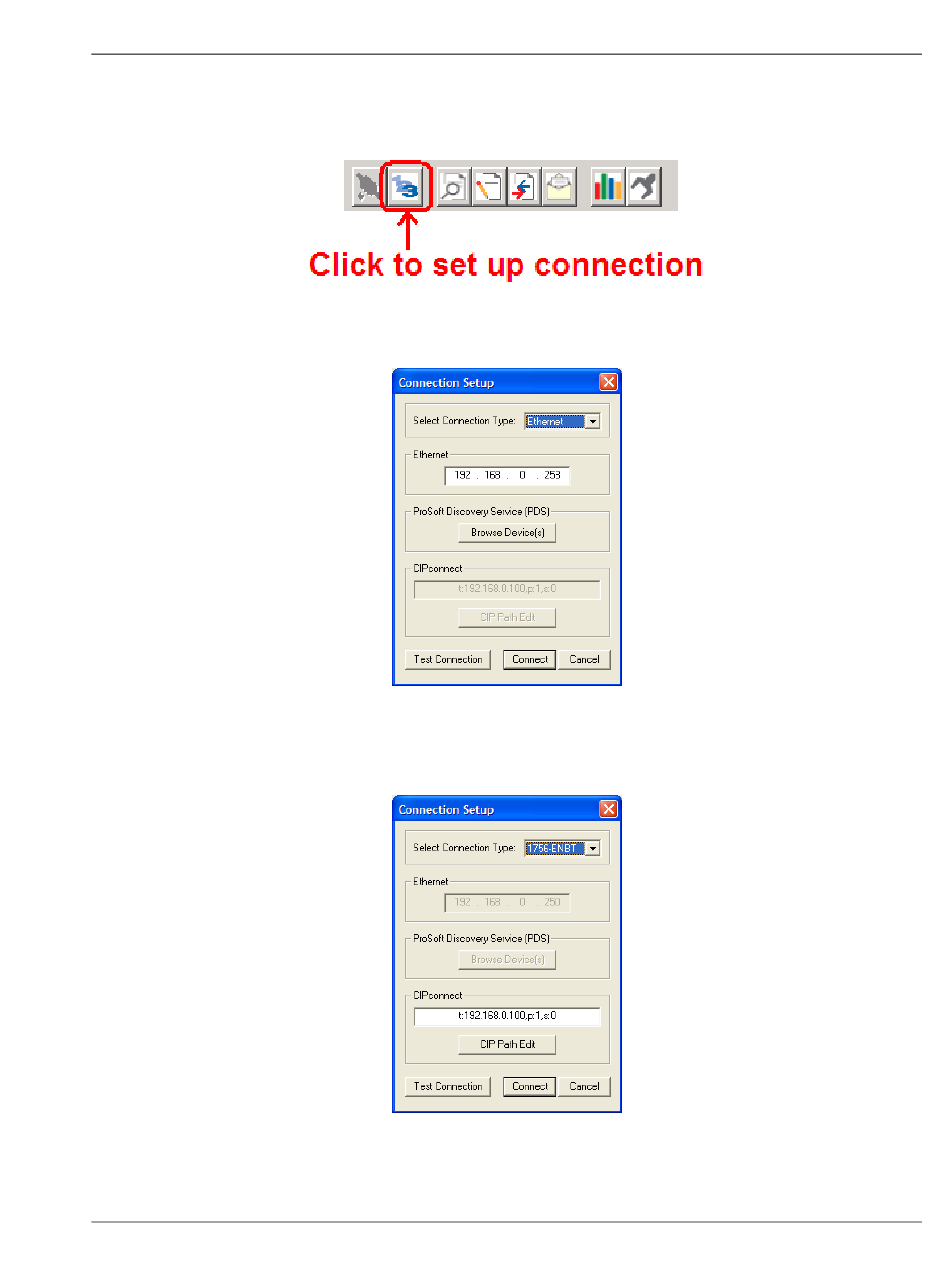

3 In the Diagnostics window, click the S
the module's IP address.
4 In the Connection Setup dialog box, click the T
verify that the module is accessible with the current settings.
You can also use CIPconnect
ENBT card. Refer to Using CIPconnect to Connect to the Module (page 94)
for information on how to construct a CIP path.
5 If the Test Connection is successful, click C
