MVI56E-MCMR ♦ ControlLogix Platform
Modbus Communication Module with Reduced Data Block

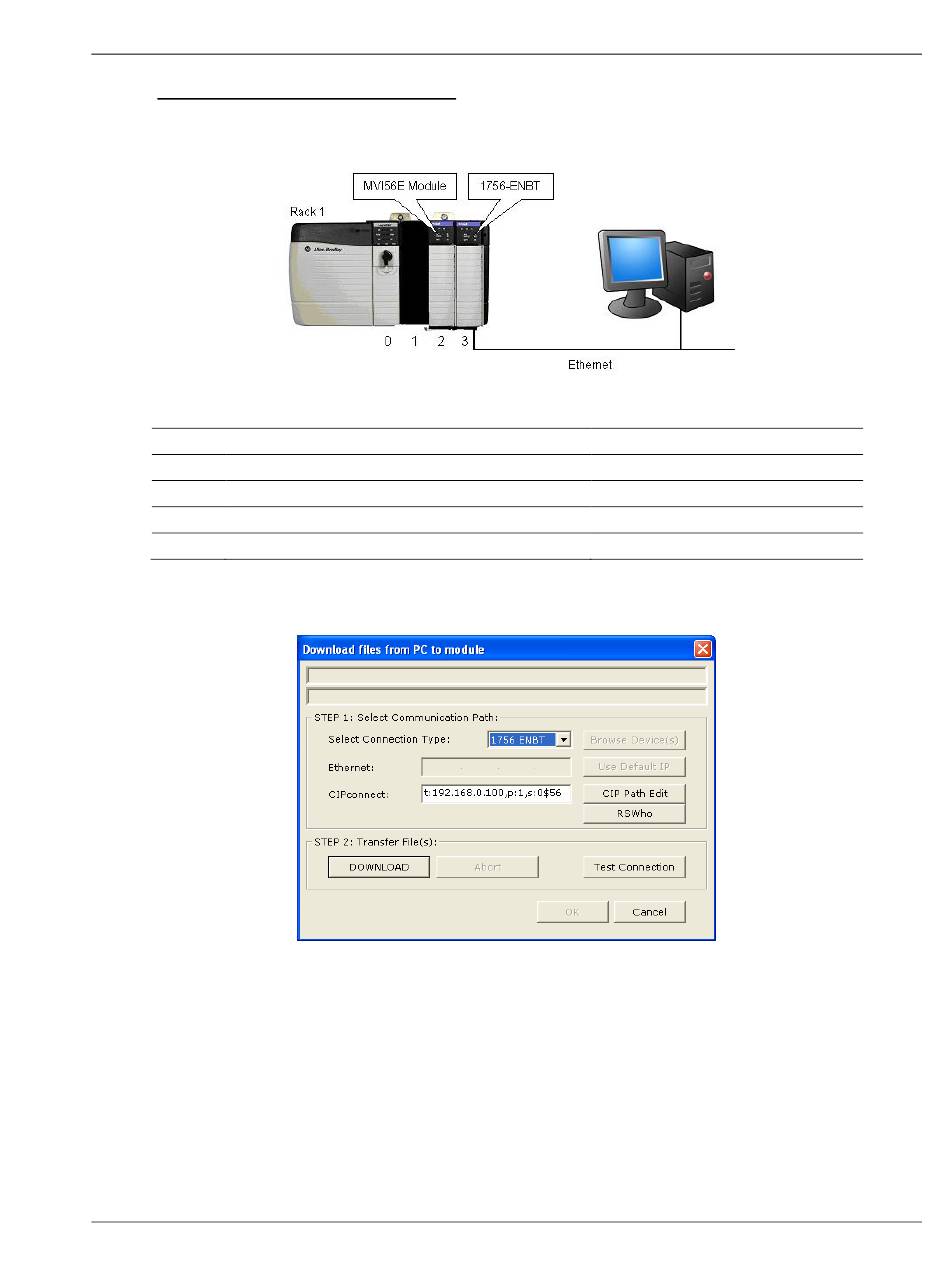

Example 1: Local Rack Application
For this example, the MVI56E-MCMR module is located in the same rack as the
1756-ENBT that is connected to the PC.
Rack 1
Slot Module
0 ControlLogix Processor
1 Any
2 MVI56E-MCMR
3 1756-ENBT
1 In the Download dialog box, click CIP P
ProSoft Technology, Inc.
Configuring the MVI56E-MCMR Module
Network Address
-
-
-
IP=192.168.0.100
E .
ATH DIT
User Manual
Page 97 of 223
