Configuring the Path for Message Blocks
If you used the recommended name for the module (MCMR) to import the first
Add-On Instruction, the MSG paths will be associated correctly with the module.
For additional modules, you must configure the message path for each MSG
instruction to address the correct module.

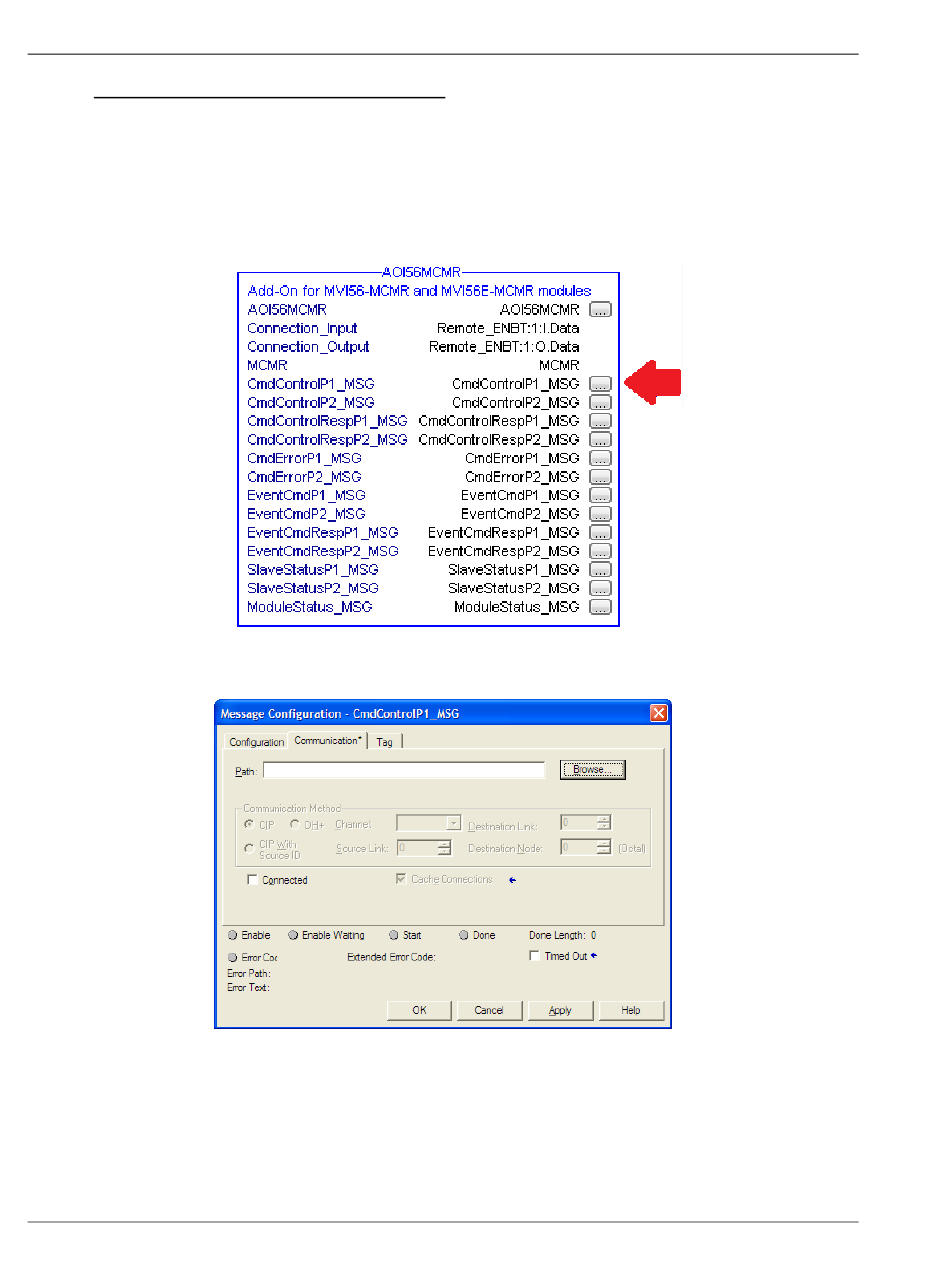

1 In the Add-On Instruction, click the [...] button next to each MSG tag to open
the M
ESSAGE
2 Click the C
Page 36 of 223
C T
ONFIGURATION AG
tab and click the B
OMMUNICATION
MVI56E-MCMR ♦ ControlLogix Platform
Modbus Communication Module with Reduced Data Block
.
button as follows.
ROWSE
