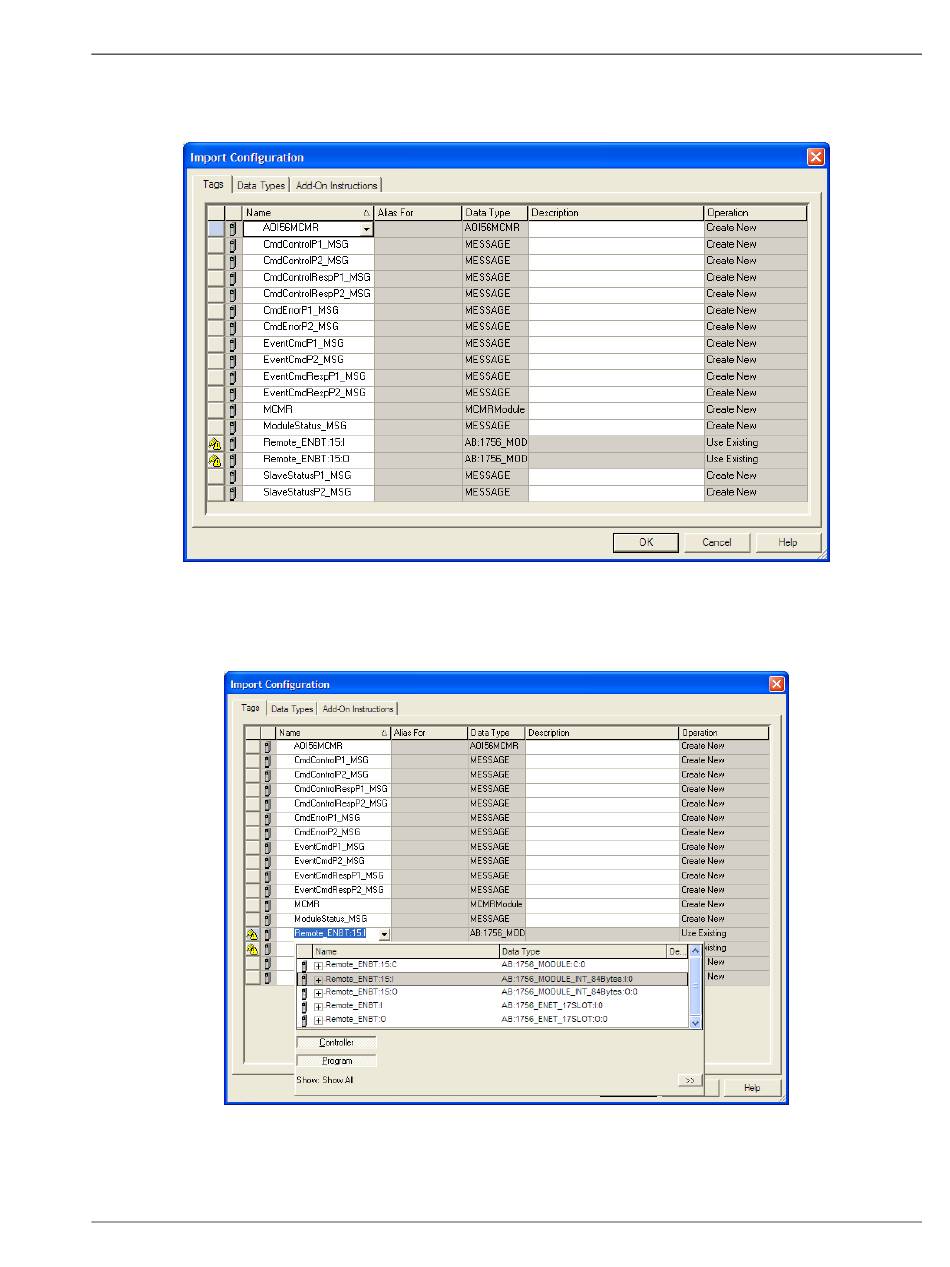

This action opens the I
controller tags that will be created.
5 Locate the Remote_ENBT:x:I Tag, where x is the slot number of the module
within the local rack. Rename this tag to: Local:x:I. Do the same for
Local:x:O. This defines the backplane path to the module in a local rack.
