Downloading the Project to the Module

Note: For alternative methods of connecting to the module with your PC, refer to Using CIPconnect
to Connect to the Module (page 94) or Using RSWho to Connect to the Module (page 104).
In order for the module to use the settings you configured, you must download
(copy) the updated Project file from your PC to the module.
1 In the tree view in ProSoft Configuration Builder, click once to select the
MVI56E-MCMR module.
2 Open the P

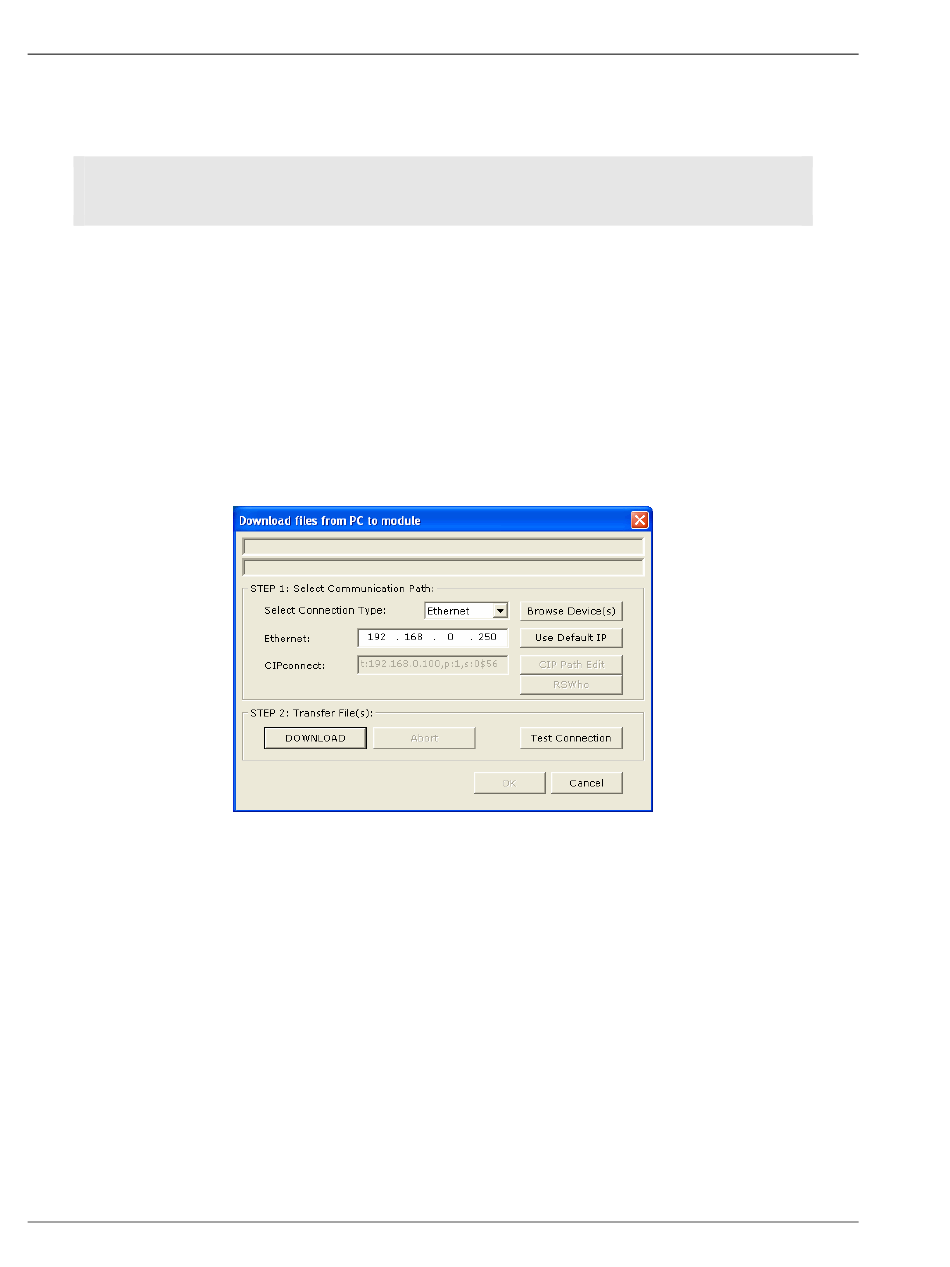

This action opens the Download dialog box. Notice that the Ethernet address
field contains the temporary IP address you assigned previously. ProSoft
Configuration Builder will use this temporary IP address to connect to the
module.
Click T
EST
module.
3 If the connection succeeds, click D
configuration to the module.
