If the Test Connection procedure fails, you will see an error message. To correct
the error, follow these steps.
1 Click OK to dismiss the error message.
2 In the Download dialog box, click B
Discovery Service.

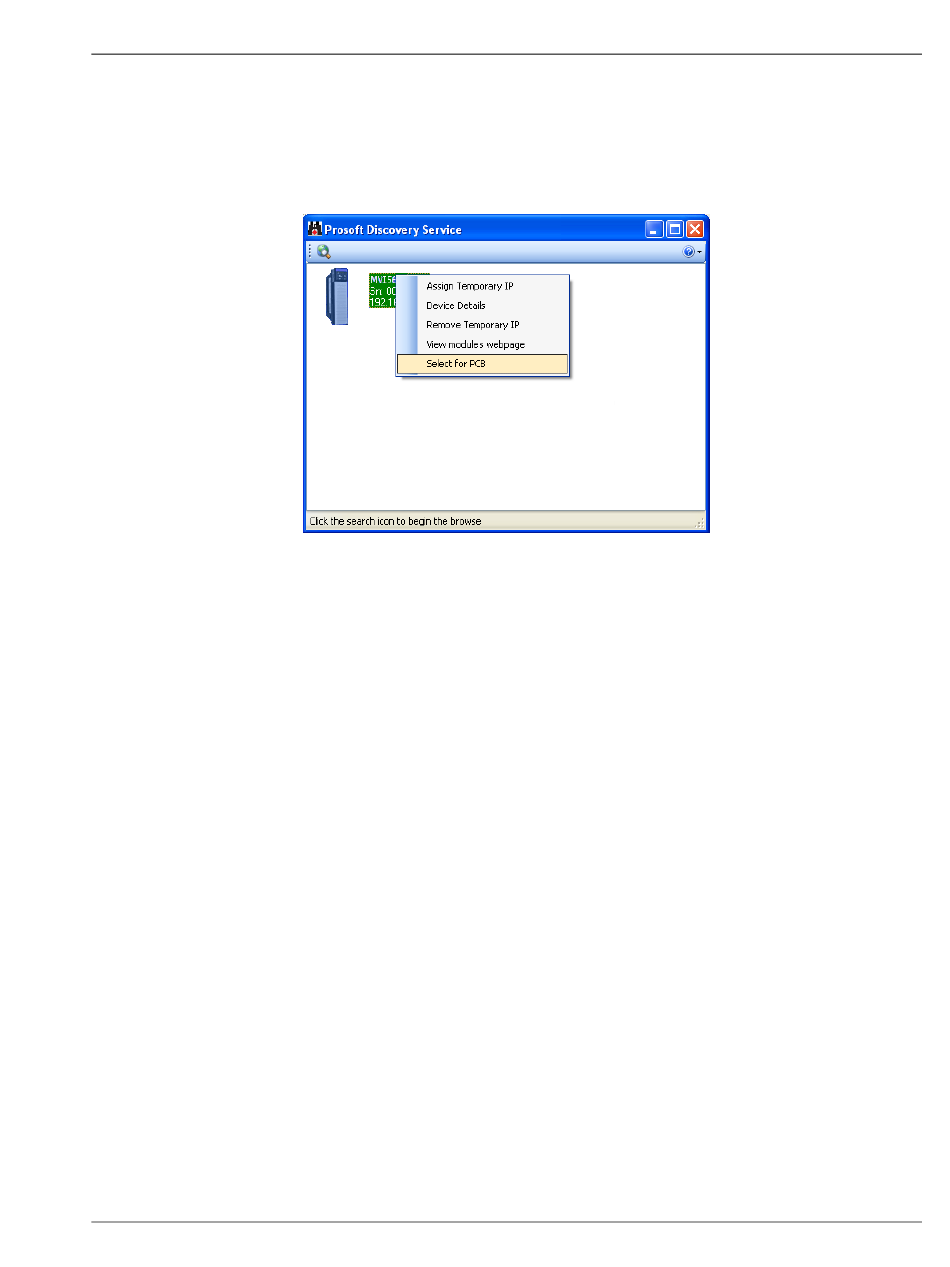

3 Select the module, and then click the right mouse button to open a shortcut
menu. On the shortcut menu, choose S
4 Close ProSoft Discovery Service.
5 Click D
OWNLOAD
ProSoft Technology, Inc.
ROWSE
to transfer the configuration to the module.
Configuring the MVI56E-MCMR Module
D ( ) to open ProSoft
EVICE S
PCB.
ELECT FOR
