MVI56E-MCMR ♦ ControlLogix Platform
Modbus Communication Module with Reduced Data Block
Operation Messages
After the initialization step, the following message pattern will be repeated.
<Backplane Status> <IP Address> <Backplane Status> <Port Status>
Code
<Backplane Status>
<IP Address>
<Port Status>

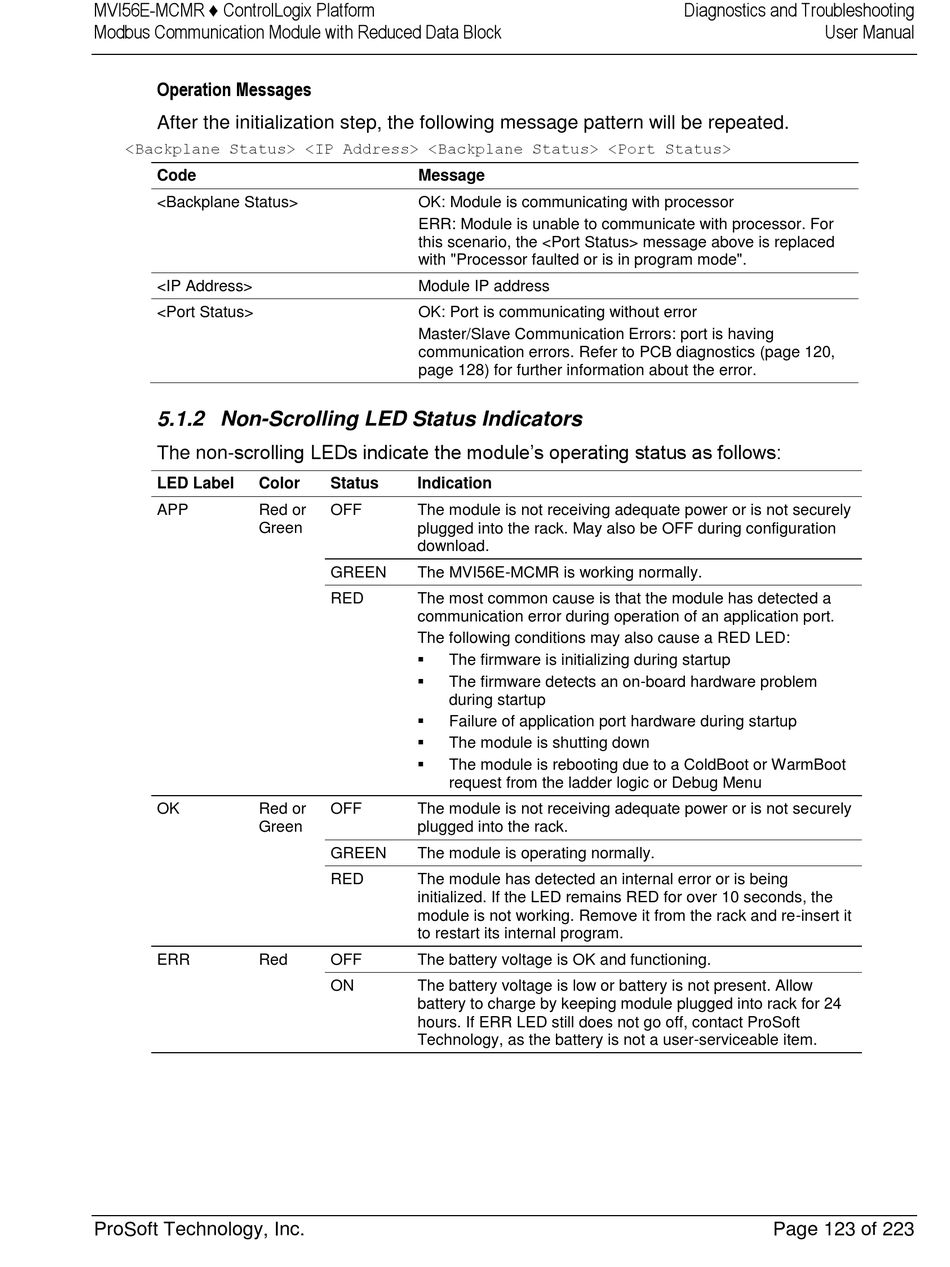

5.1.2 Non-Scrolling LED Status Indicators

The non-scrolling LEDs indicate the module's operating status as follows:
LED Label Color
APP Red or
Green
OK Red or
Green
ERR Red
ProSoft Technology, Inc.
Message
OK: Module is communicating with processor
ERR: Module is unable to communicate with processor. For
this scenario, the <Port Status> message above is replaced
with "Processor faulted or is in program mode".
Module IP address
OK: Port is communicating without error
Master/Slave Communication Errors: port is having
communication errors. Refer to PCB diagnostics (page 120,
page 128) for further information about the error.
Status Indication
OFF The module is not receiving adequate power or is not securely
plugged into the rack. May also be OFF during configuration
download.
GREEN The MVI56E-MCMR is working normally.
RED The most common cause is that the module has detected a
communication error during operation of an application port.
The following conditions may also cause a RED LED:

The firmware is initializing during startup

The firmware detects an on-board hardware problem
during startup

Failure of application port hardware during startup

The module is shutting down

The module is rebooting due to a ColdBoot or WarmBoot
request from the ladder logic or Debug Menu
OFF The module is not receiving adequate power or is not securely
plugged into the rack.
GREEN The module is operating normally.
RED The module has detected an internal error or is being
initialized. If the LED remains RED for over 10 seconds, the
module is not working. Remove it from the rack and re-insert it
to restart its internal program.
OFF The battery voltage is OK and functioning.
ON The battery voltage is low or battery is not present. Allow
battery to charge by keeping module plugged into rack for 24
hours. If ERR LED still does not go off, contact ProSoft
Technology, as the battery is not a user-serviceable item.
Diagnostics and Troubleshooting
User Manual
Page 123 of 223
