MVI56E-MCMR ♦ ControlLogix Platform
Modbus Communication Module with Reduced Data Block

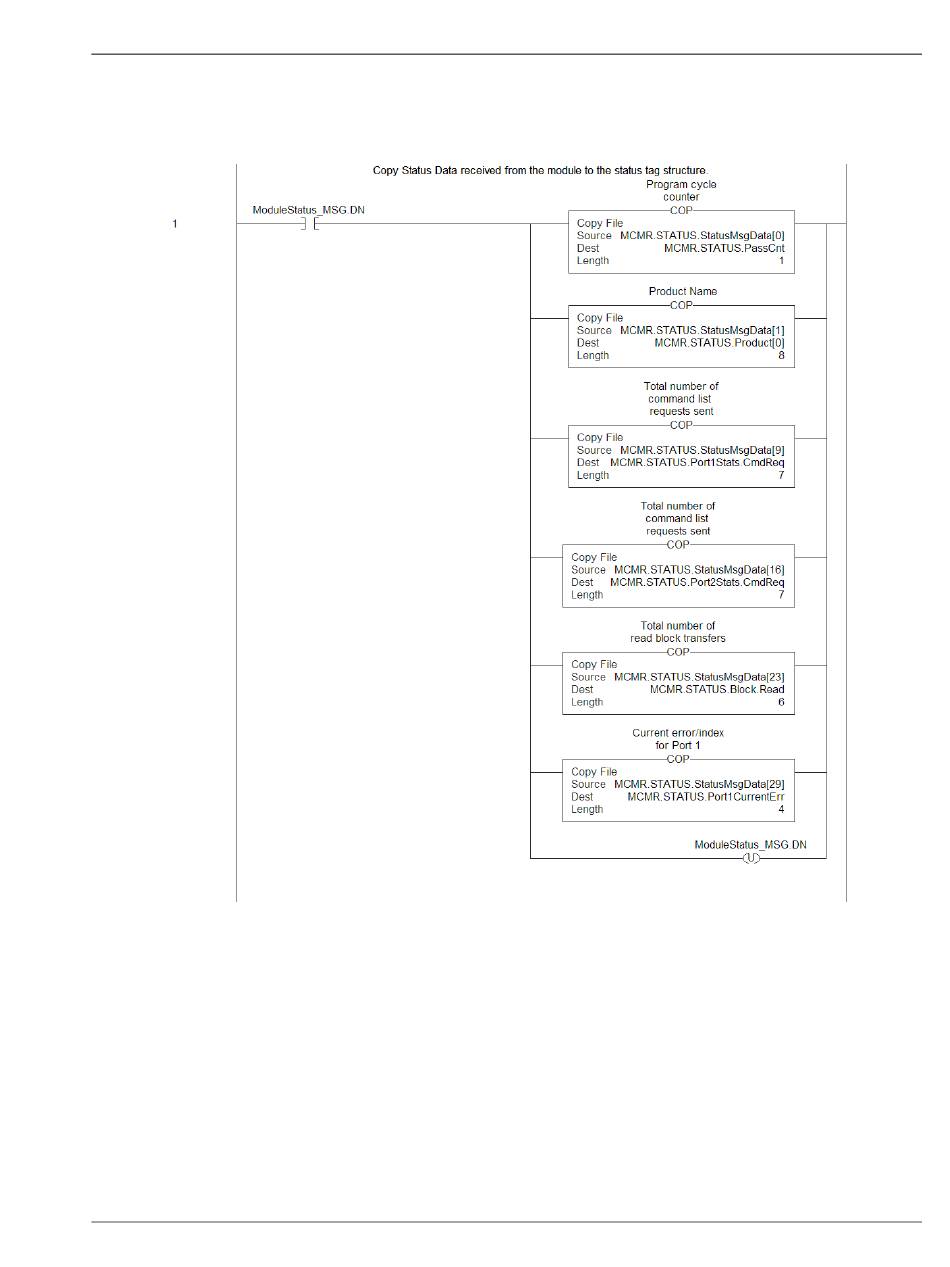

After the block is read from the module, the data received should be copied to
the module's status controller tag area. The following illustration shows the
ladder logic to accomplish this task.
