6.
6.1

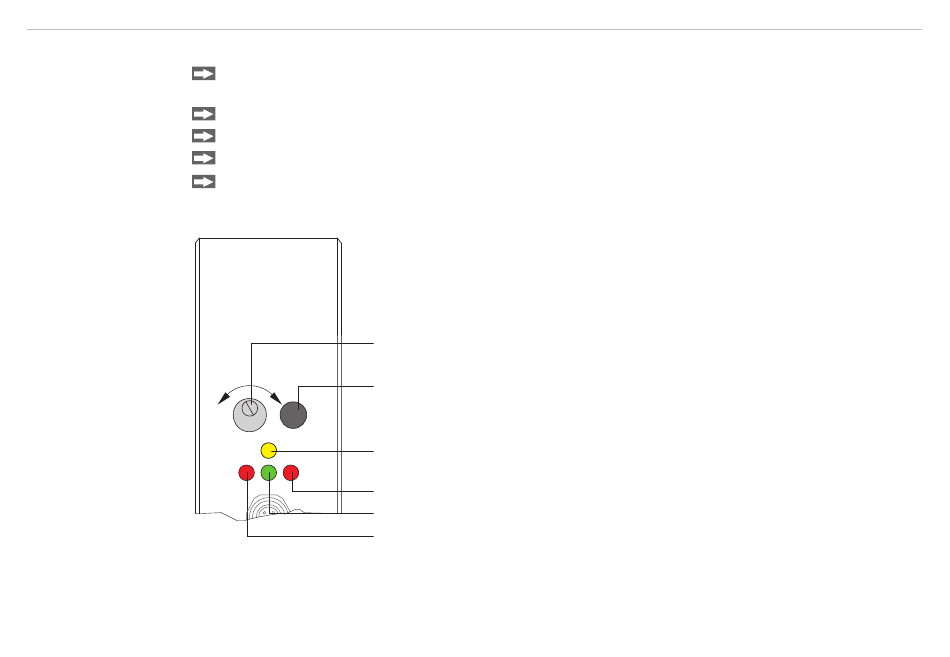

Fig. 10 Control and display elements at the receiver
There are no display elements located at the transmitter. The selection of mode, the video threshold et cetera
is effected with the software tool exclusively.
optoCONTROL 1202

Operation

Insulate all, not required cable ends at the power supply- and output cable before switching-on of the
supply voltage. Therewith you avoid short circuits.
Connect the cable connections according to the designated use.
Check the screw connections at transmitter and receiver on attached hub.
Switch on the supply voltage for the sensor. The yellow LED at the receiver flashes.
Parameterize the sensor via the RS232/USB-interface.

Control- and Display Elements

Potentiometer for tolerance setting. Turning the
potentiometer clockwise increases the tolerance bandwidth
-
+
Teach/Reset-key for teaching of setpoint value respectively
reset of maximum values (function like input IN1)
On: Visualization operation voltage
1 x shortly blinking: Reset- Max/Min function
3 x shortly blinking: Teach function
Measuring value < lower tolerance limit (output OUT0)
Measuring value within tolerance limit (output OUT2)
Measuring value > upper tolerance limit (output OUT1)
