LED display (red/green/red/yellow):
LED red (+)
LED green
LED red (-)
LED yellow

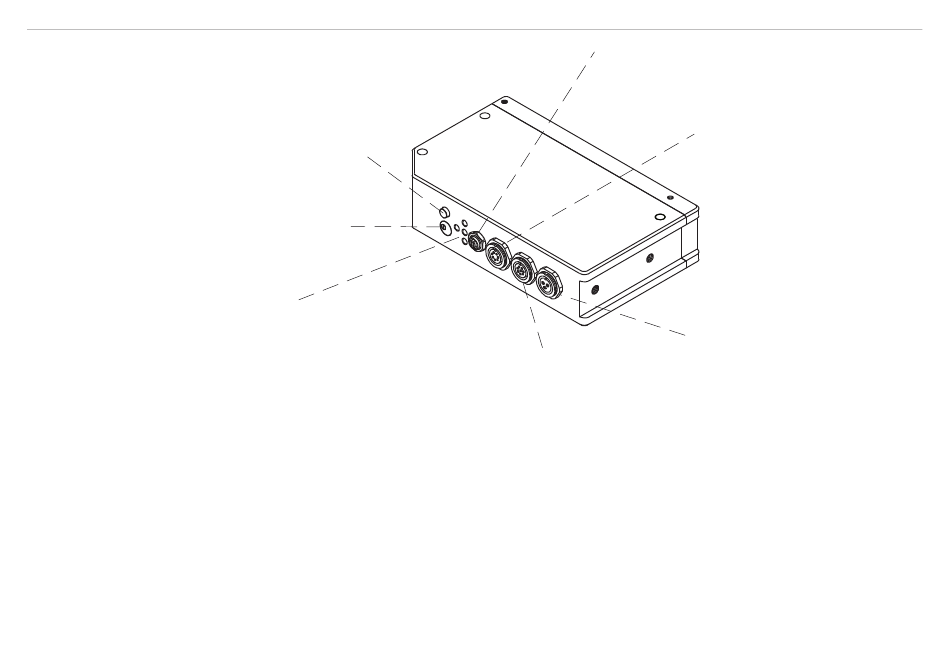

Fig. 2 Laser micrometer, series optoCONTROL 1202
optoCONTROL 1202
TEACH/RESET key
(Input IN1)
Potentiometer
(tolerance specification)
STATUS DIGITAL OUT1
Measuring value in tolerance specification
STATUS DIGITAL OUT0
POWER/Multifunctional display
4-pin female connector
Binder series 707
(PC connector)
7-pin female connector
Binder series 712
(connector for ME
service operation)
3-pin female connector
Binder series 712
8-pin female connector
(connection to transmitter)
Binder series 712
(SPS connector)
Page 10
