Sensor Mounting With Video Signal - MICRO-EPSILON optoCONTROL 1202 Instruction Manual

6.9
Requirements:
- optoCONTROL completely mounted and wired, operating voltage fits, see Chap.
- There is no target between transmitter and receiver.
- The software tool is installed.
After a click on the VIDEO button, the fine adjustment between the ODC transmitter unit and the receiver
can be observed in the graphic display window. In the graphic display the intensity profile is shown as a red
curve. The numerical values 1 ... 1024 on the x-axis represent the individual pixels of the CCD line. The ana-
log values of the CCD line are converted by way of an AD converter and displayed in a y-axis value range of
0 .. 1023. Transmitter and receiver are optimally adjusted, if the receiver is uniformly illuminated, see

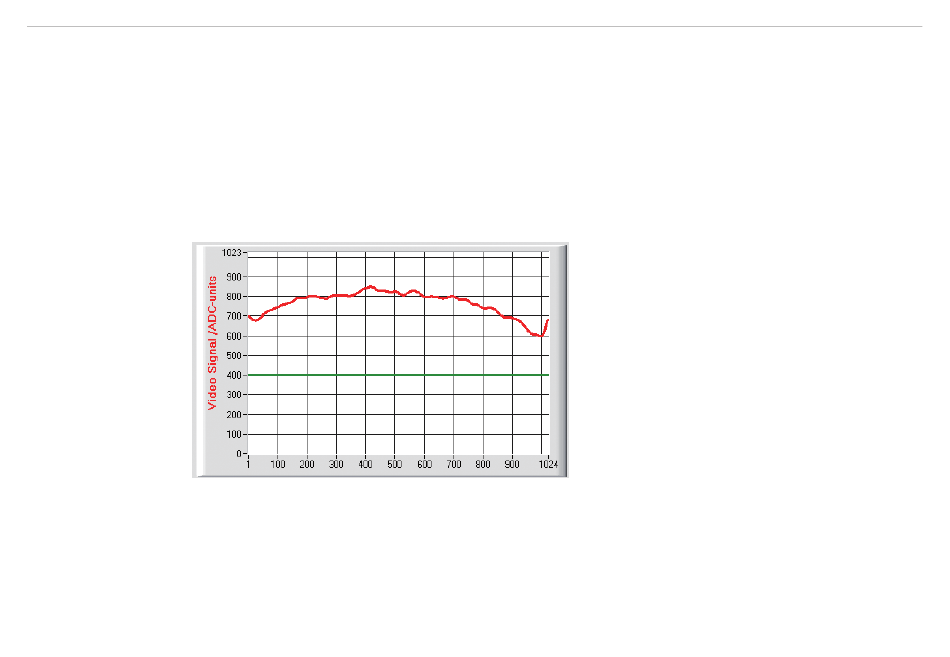

Fig. 16 Intensity distribution on receiver at optimal mounting of transmitter and receiver
i
optoCONTROL 1202

Sensor Mounting with Video Signal

A detailed description of the transmitter mounting with the support of the video signal you will find as file
on the provided CD-ROM.
5.
Fig. 16.
Page 31
