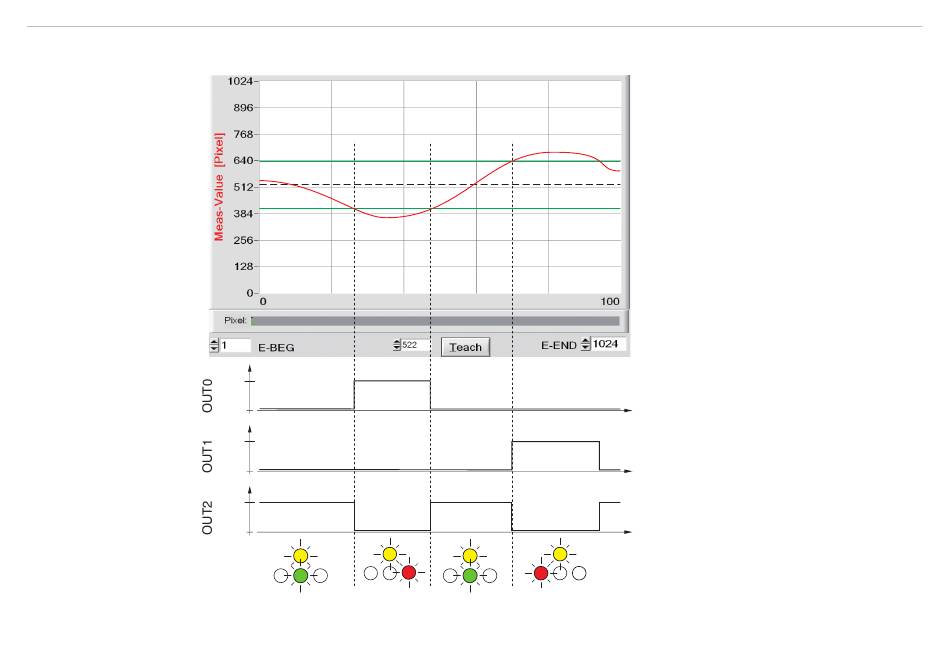

Fig. 12 Switching behaviour of the digital outputs, output polarity (POLARITY) = DIRECT
optoCONTROL 1202

Limit Monitoring, Digital Outputs

+U
B
0 V
+U
B
0 V
+U
B
0 V
If the receiver detects a signal below
the tolerance limit for example, the
according digital output is set. Also
LED's on the receiver indicate the
states of the digital outputs.
Thereto a measuring window must
be parameterized. The setup is ef-
fected
- at the receiver via the
ƒ "Teach"- key and the
ƒ tolerance potentiometer, see
Chap. 6.1, in the software tool
via the parameter
ƒ "Teach" and
ƒ "TOLERANCE-VALUE", see
software description.
Time [s]
