The connections of power supply, inputs and outputs are effected via a 8-pin cable connector, Binder, series
712. As a matching part you require an adequate cable connector.
Different converted cables with open ends are optionally available.
The optional available power supply-/output cables SCA1202-x feature following bending radii:
- 53 mm (fixed),
- 80 mm (flexible).
Pin Assignment
1
2
3
4
5
6
7
8

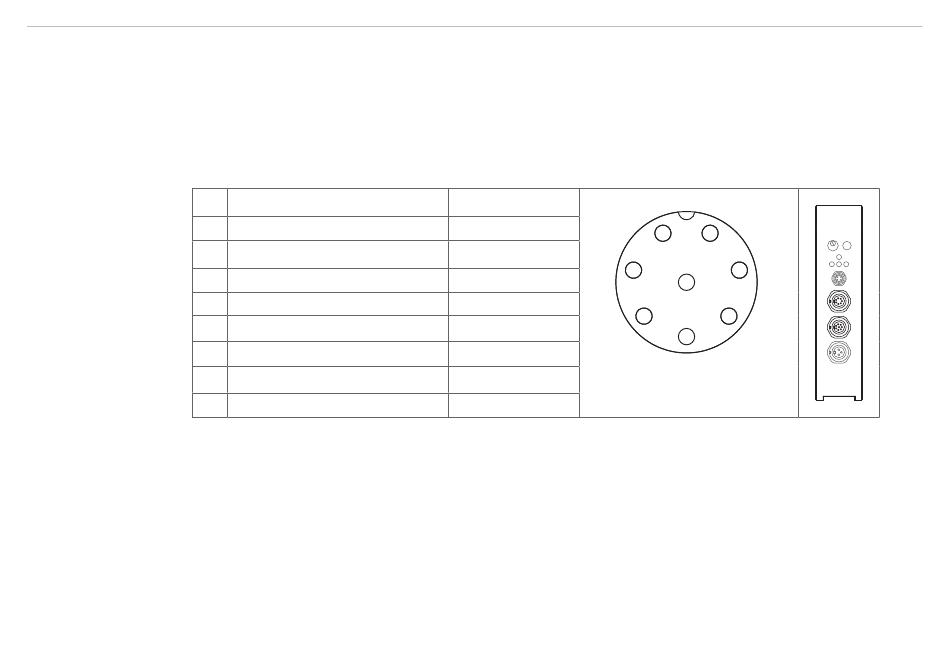

Fig. 8 Pin- and color assignment for 8-pin male connector and output cable SCA1202-x
External Triggering, IN0
When a HIGH-pulse is applied at the digital input INO, the external triggering (measuring value output) is set
at the hardware.
RESET-Function, IN1
When a HIGH-pulse of less than 750 ms duration is applied, the RESET function is performed at the receiver.
This resets the current maximum and minimum values.
optoCONTROL 1202

Power Supply, Inputs and Outputs

Ground (0 V)
Power supply +15 ... +30 VDC brown
INO (External trigger)
IN1 (Teach/Reset)
OUT0 (-)
OUT1 (+)
OUT2 (OK)
Analog output (0 ... 10 V)
Color SCA1202-x
white
6
green
yellow
5
grey
pink
View on solder-pin side male
blue
red
7
1
8
2
3
4
cable connector
