Operating Behavior in Conjunction with PROFINET
I
6
MOVIDRIVE® MDX61B – control
0 0
6.4 MOVIDRIVE
56
®
MDX61B – control
The drive inverter is controlled via the process data channel which is up to 10 I/O words
in length. These process data words may be mapped in the I/O or peripheral area of the
controller if a programmable controller is used as IO controller and can be addressed as
usual.
PA 3
PW160
PA 2
PW158
PA 1
PW156
[1]
PE 3
PW160
PE 2
PW158
PE 1
PW156

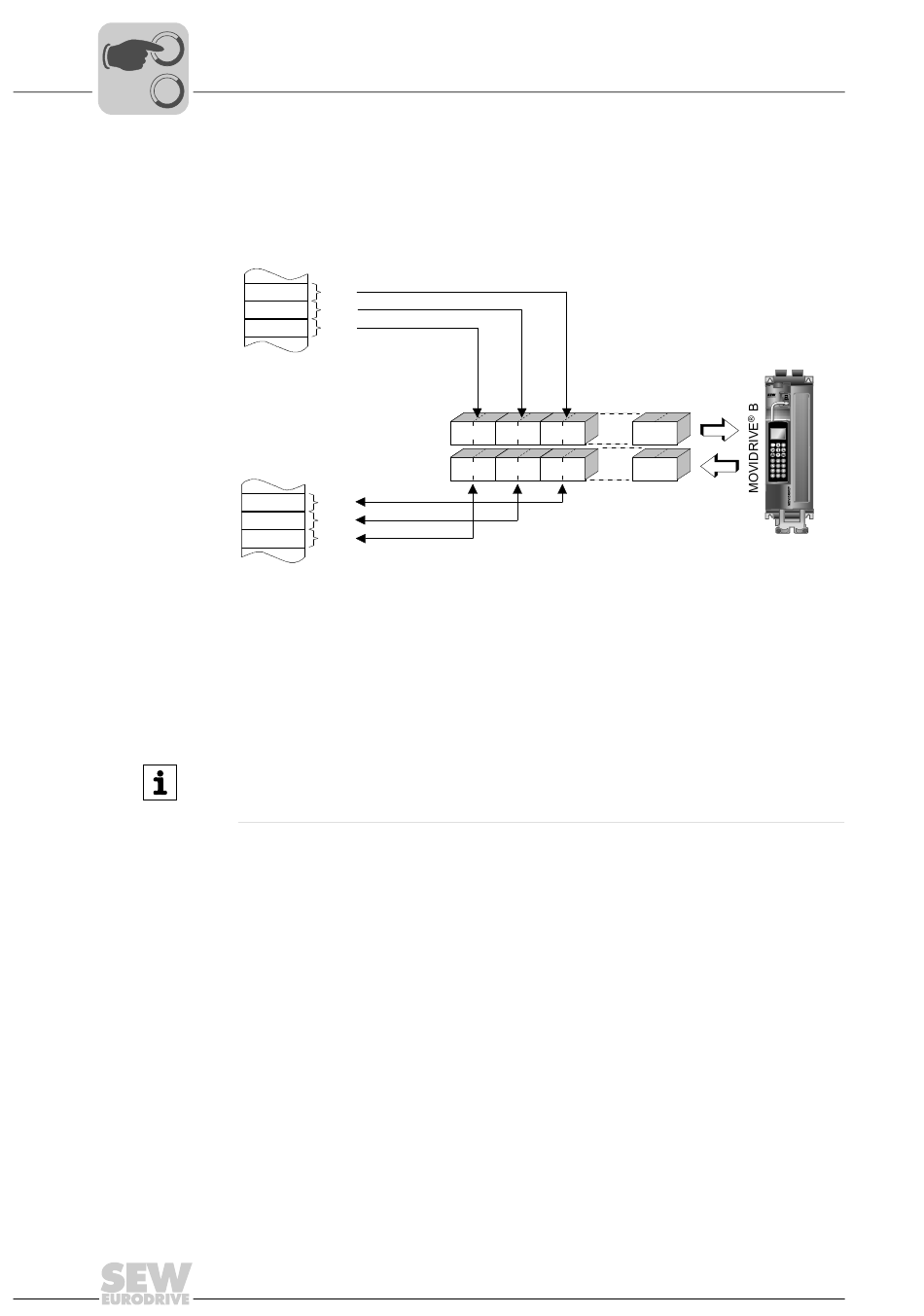

Figure 2: Mapping PROFINET data in the PLC address range
[1] PLC address range
PI1 ... PI10 Process input data
PO1 ... PO10 Process output data
INFORMATION
For more information about controlling via the process data channel, in particular re-
garding the coding of the control and status word, refer to the Fieldbus Unit Profile
manual.
PA 1 PA 2 PA 3
PE 2 PE 3
PE 1
Manual – DFE32B Fieldbus Interface PROFINET IO
PA 10
PE 10
62321AXX
