MOVITOOLS® MotionStudio – Operation
9
Serial (RS-485) communication via interface adapter
Connecting the
USB11A inter-
face adapter
102

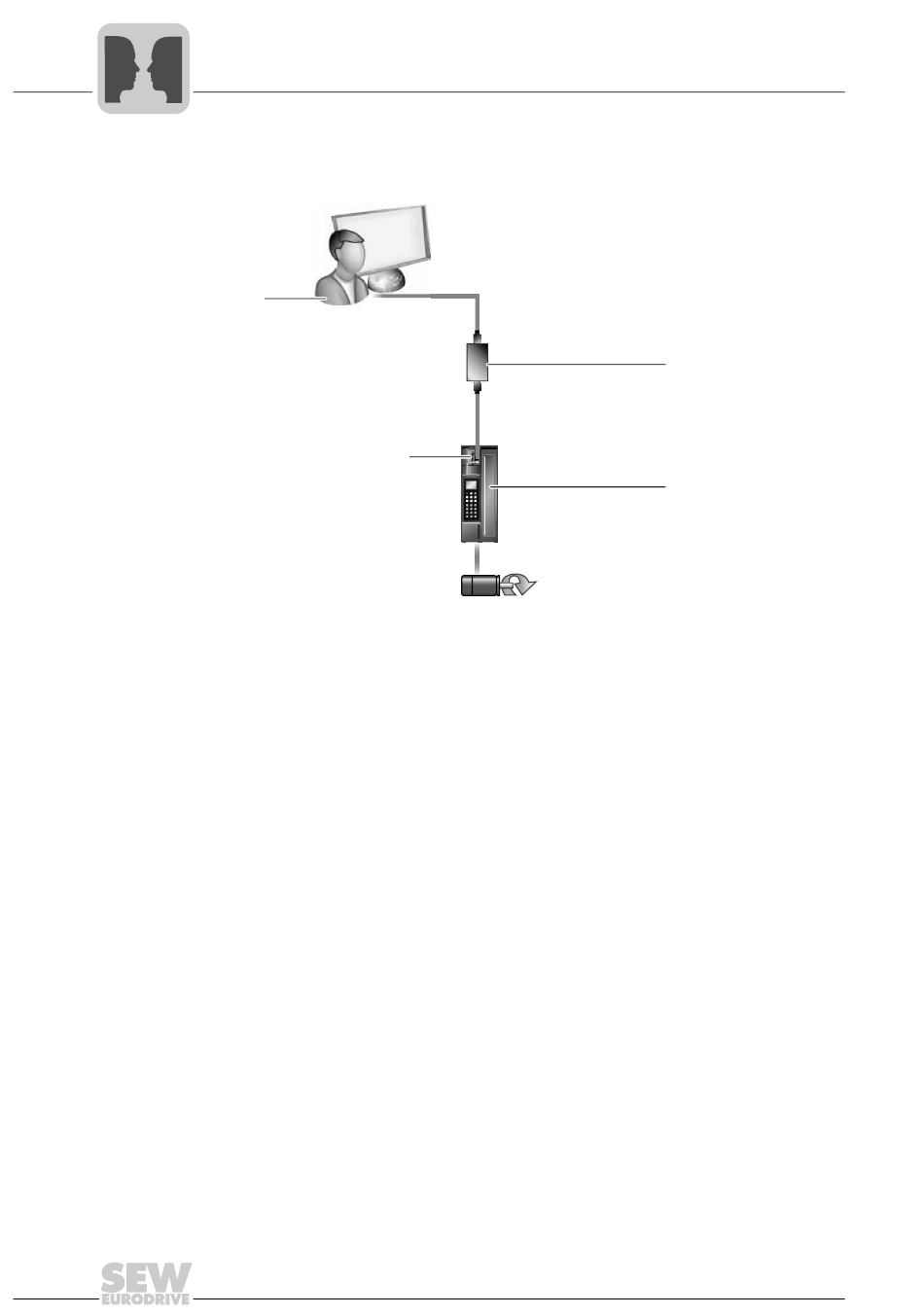

The following figure shows how the USB11A interface adapter [2] is connected with the
unit [4] and with the PC [1] via the diagnostic socket [3].
[1]
[3]
[1] PC
[2] USB11A with two connection cables (included in the scope of delivery)
[3] Diagnostic socket of the unit
®
[4] Unit (MOVIDRIVE in this example)
Proceed as follows to connect the USB11A interface adapter with the PC and your unit:
1. Connect the USB11A interface adapter [2] with the two connection cables provided.
2. Plug the RJ10 connector of the first connector cable into the diagnostics socket [3]
of the unit [4].
3. Plug the USB-A connector of the second connection cable into a free USB port on
your PC [1].
4. If you are operating the interface adapter with MOVITOOLS
first time, you will have to install the required driver.
[2]
[4]
®
Manual – DFE32B Fieldbus Interface PROFINET IO
68061AXX
