MOVITOOLS® MotionStudio – Operation
9
Serial (RS-485) communication via interface adapter
9.7.3

Configuring the serial communication

104
You must have a serial connection between your PC and the units you want to configure.
You can establish one, for example, using the USB11A interface adapter.
Proceed as follows to configure serial communication:

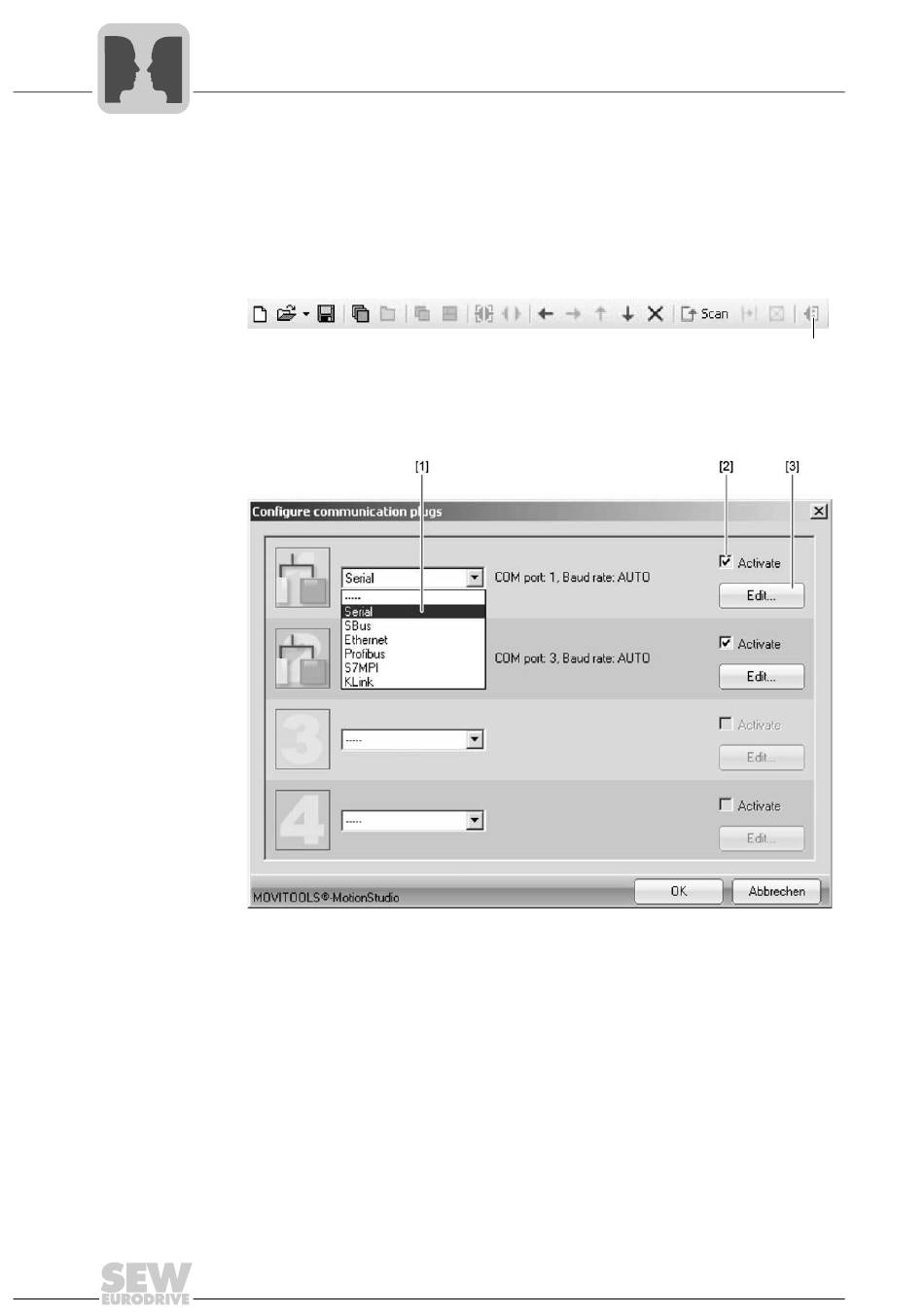

1. Click on "Configure communication plugs" [1] in the toolbar.
[1] "Configure communication plugs" symbol
This will open the "Configure communication plugs" window.
[1] "Type of communication" dropdown menu
[2] "Activate" checkbox
[3] [Edit] button
Manual – DFE32B Fieldbus Interface PROFINET IO
[1]
68062AXX
12188AEN
