Project Planning with PROFINET
5
Project planning for the PROFINET IO controller
32
• Copy the required entry to the PROFINET IO system via drag & drop:
– Select "MDX61B+DFE32B V1.2" [2] if your controller supports topology detection.
– Select "MDX61B+DFE32B V1.2 ALT" if your controller does not support topology
detection.
• Assign the name of the PROFINET node.
This name must later correspond to the PROFINET unit name specified in the
DFE32B.
• Delete the entry on slot 2 in to perform the project planning for your application. Se-
lect the process data configuration required for your application.
• Specify the IO and periphery addresses for the configured data widths and save your
configuration.

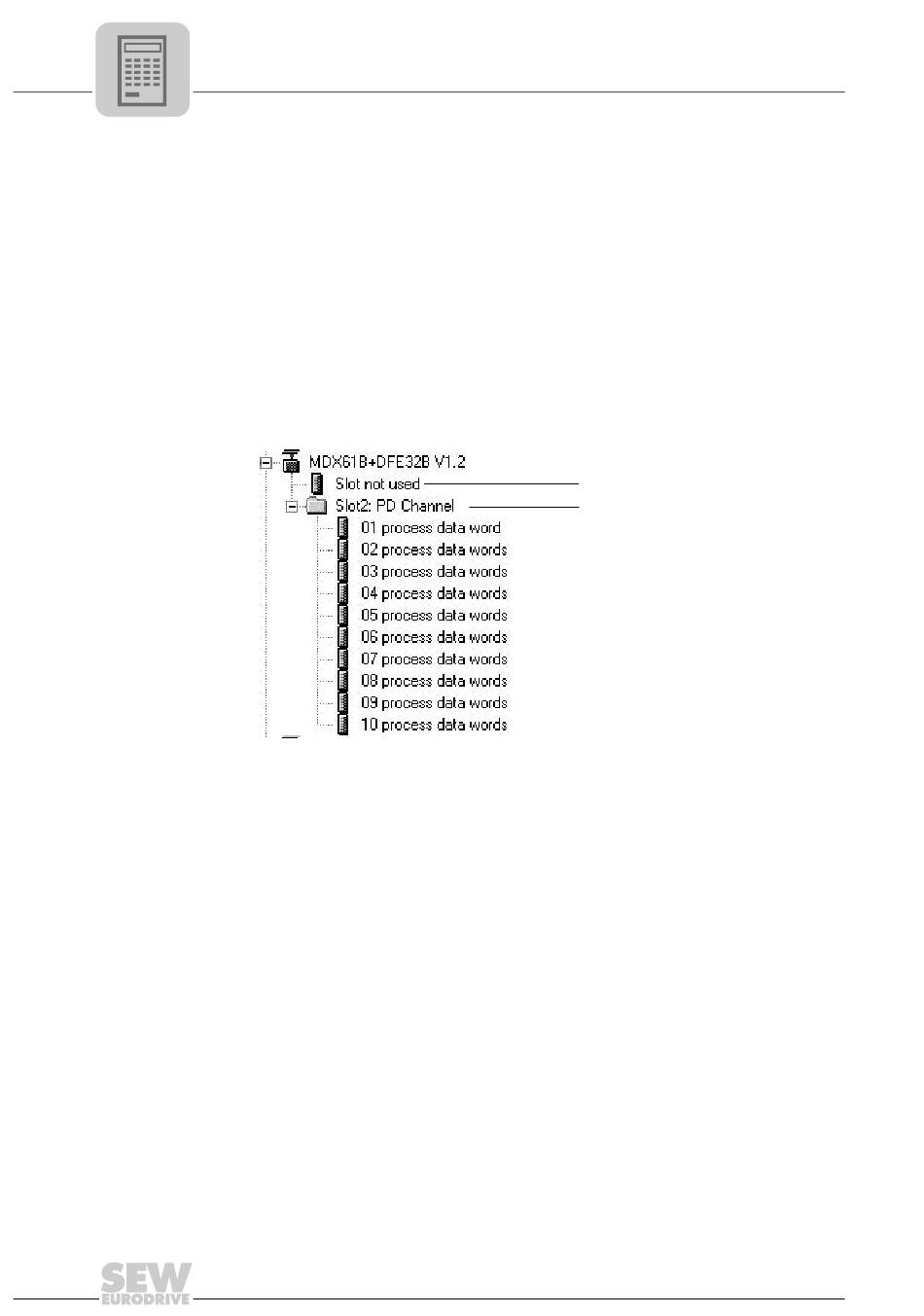

The slot model is used for project planning with PROFINET. Each slot is assigned to
a DFE32B communication interface.
Slot 1: Must be assigned "Slot not used" [1]
Slot 2: Process data channel [2]. Number of process data, cyclically exchanged be-
tween PROFINET IO controller and PROFINET IO device.
• Extend your user program by data exchange with the new units.
• Process data transfer is consistent. SFC14 and SFC15 can be used to transfer pro-
cess data.
[1]
[2]
