Appendix

Accessories and Spare Parts
TR1-WDS
TR3-WDS
WE-xxxx-CLIP

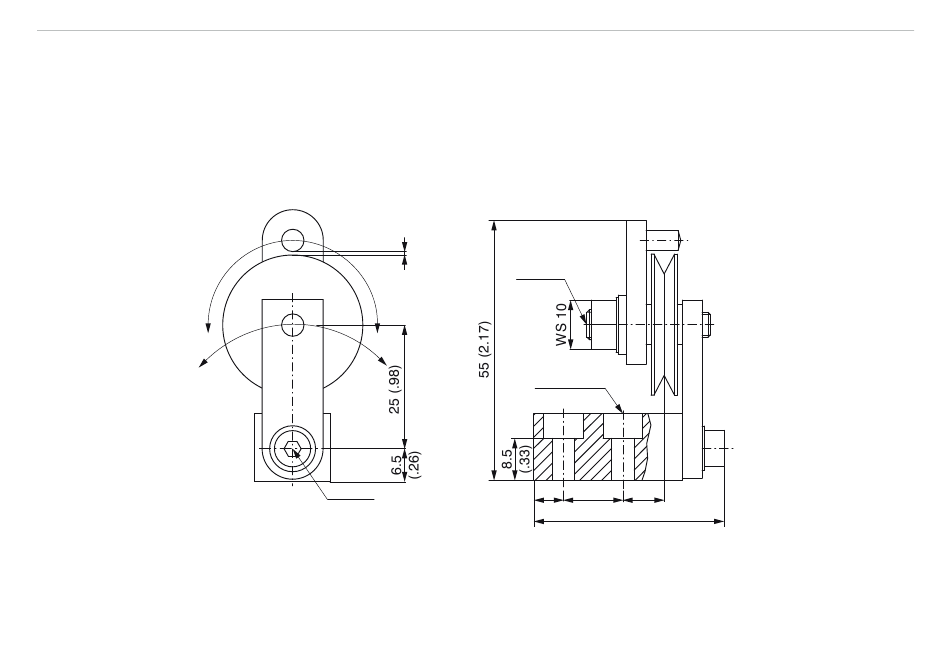

Fig. 21 Guide pulley TR1-WDS with mounting socket, dimensions in mm (inches), not to scale
wireSENSOR, WPS
Guide pulley adjustable with mounting socket, see
Guide pulley fix with mounting socket, see
Wire extension with wire clip, see
mm (33 ft)
Adjust the distance,
that the wire
can't snap off!
WS3
DIN911
Fig. 21
Fig. 22
Fig. 23, wire length in millimeters for xxxx, max. 10.000
WS3
DIN911
2x M4
DIN84/912
8.3 (.33)
6 12
(.24) (.47) 40 (1.57)
Page 38
