Output Specifications Incremental Encoder; Signal Output - MICRO-EPSILON WireSensor Series Instruction Manual

Hide thumbs Also See for WireSensor Series:
Table of Contents

Advertisement

4.5
4.5.1
Output A
Output A
Output B
Output B
Zero pulse
Zero pulse

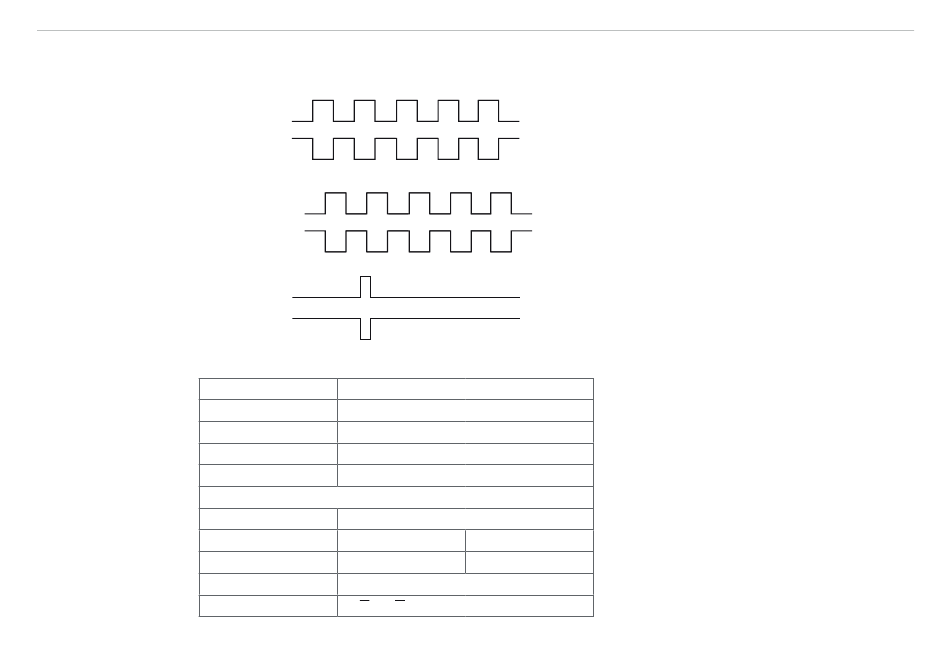

Fig. 17 Signal output
Output TTL01
Level High
Level Low
Load High
Output
Output TTL02
Level High
Level Low
Load High
Output
wireSENSOR, WPS

Output Specifications Incremental Encoder

Signal Output

NPN (5 VDC ±5 %)
≥ UB - 0.2 V
0.55 - 0.75 V
≤ 1.85 mA
A, B, 0
Linedriver (5 VDC ±5 %)
≥ 2.0 V
≤ 0.5 V
≤ 40 mA
A, A, B, B, 0
(with I= -40 mA)
(with I= 40 mA)
