Wire Guide And Fastening - MICRO-EPSILON WireSensor Series Instruction Manual

Installation and Assembly
4.3
If the measuring wire has to be extracted from the sensor
to guide the wire respectively to fix it to the target
A measuring wire under
- the sensor may not be held by another person
tension where opera-
- the measuring wire may not be further extracted but
tors are standing can
lead to injuries.
- the surroundings of the sensor have to be protected
Do not twist the
measuring wire!
Misalignment only permissible up to 3 degrees.
Dragging of the measuring wire on the inlet hole or other
objects leads to damage and/or breakage of the measu-
ring wire.
i
wireSENSOR, WPS

Wire Guide and Fastening

only to the specified measuring range
against snapping of the measuring wire
Fix the measuring wire to the target using a wire clip.
Guide the measuring wire vertically out of the sensor
housing.
If the measuring wire cannot be fed vertically out
of the housing, it is essential to use a guide pulley
(accessory TR1-WDS or TR3-WDS, see Chapter Ac-
cessories).
Keep measuring wire in an area where it cannot be
snagged or otherwise be violated.
Wire outlet 0 °
±3 ° tolerancy
max. 3 °

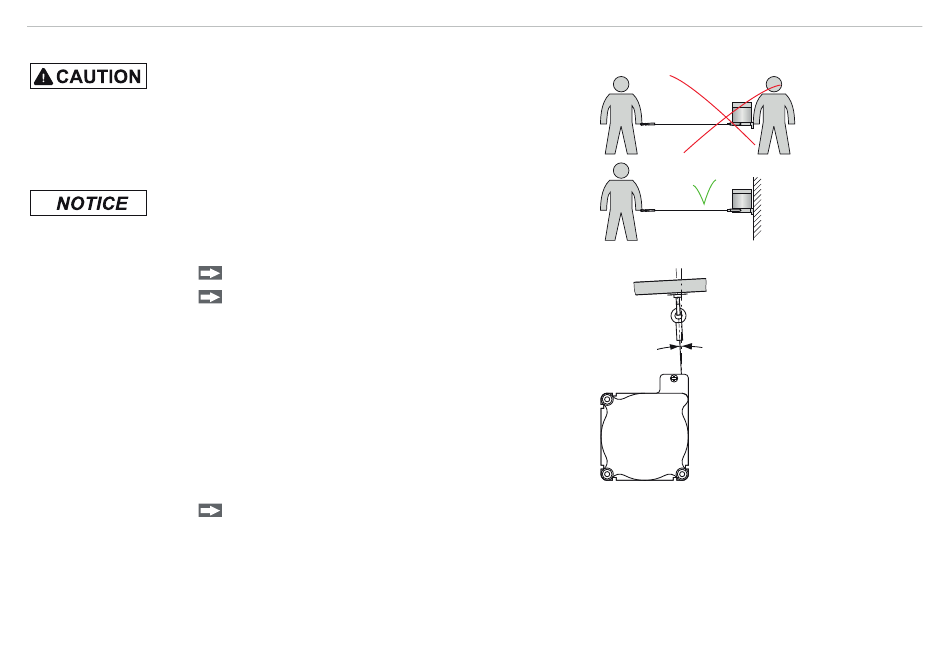

Fig. 13 Wire fastening and mis-
alignment
Wrong
Correct
Page 29
