Installation and Assembly

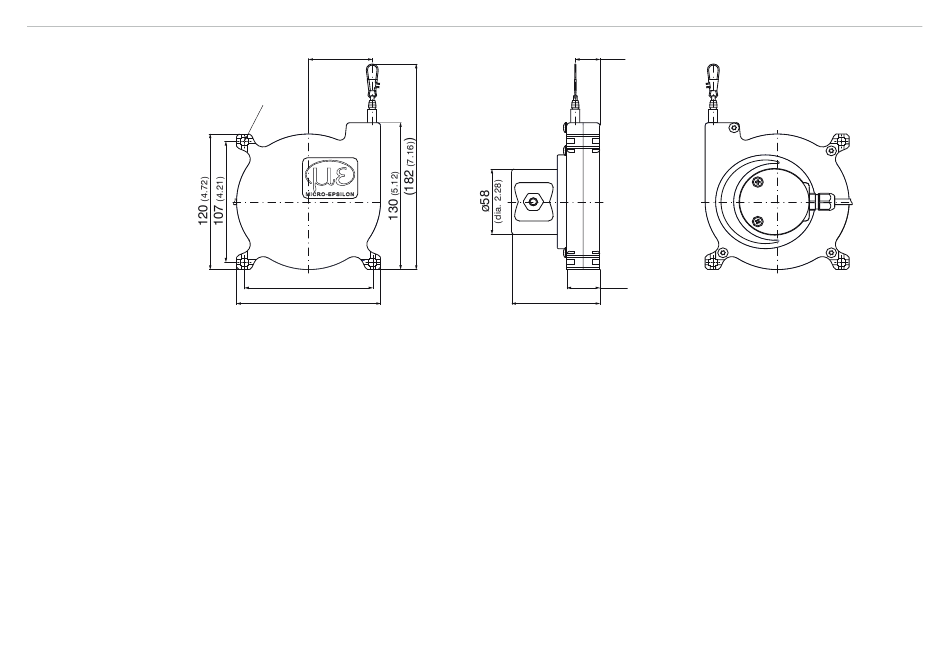

Fig. 11 Dimensional drawing WPS-...-MK120-CR, measuring ranges 3000 and 5000 mm, dimensions in mm
(inches), not to scale
wireSENSOR, WPS
53.1
(2.09)
Mounting hole
3x ø6
(dia. .24)
107
(4.21)
120
(4.72)
20.5
(.81)
27.5
73.5
(1.08)
(2.89)
Page 27
