7

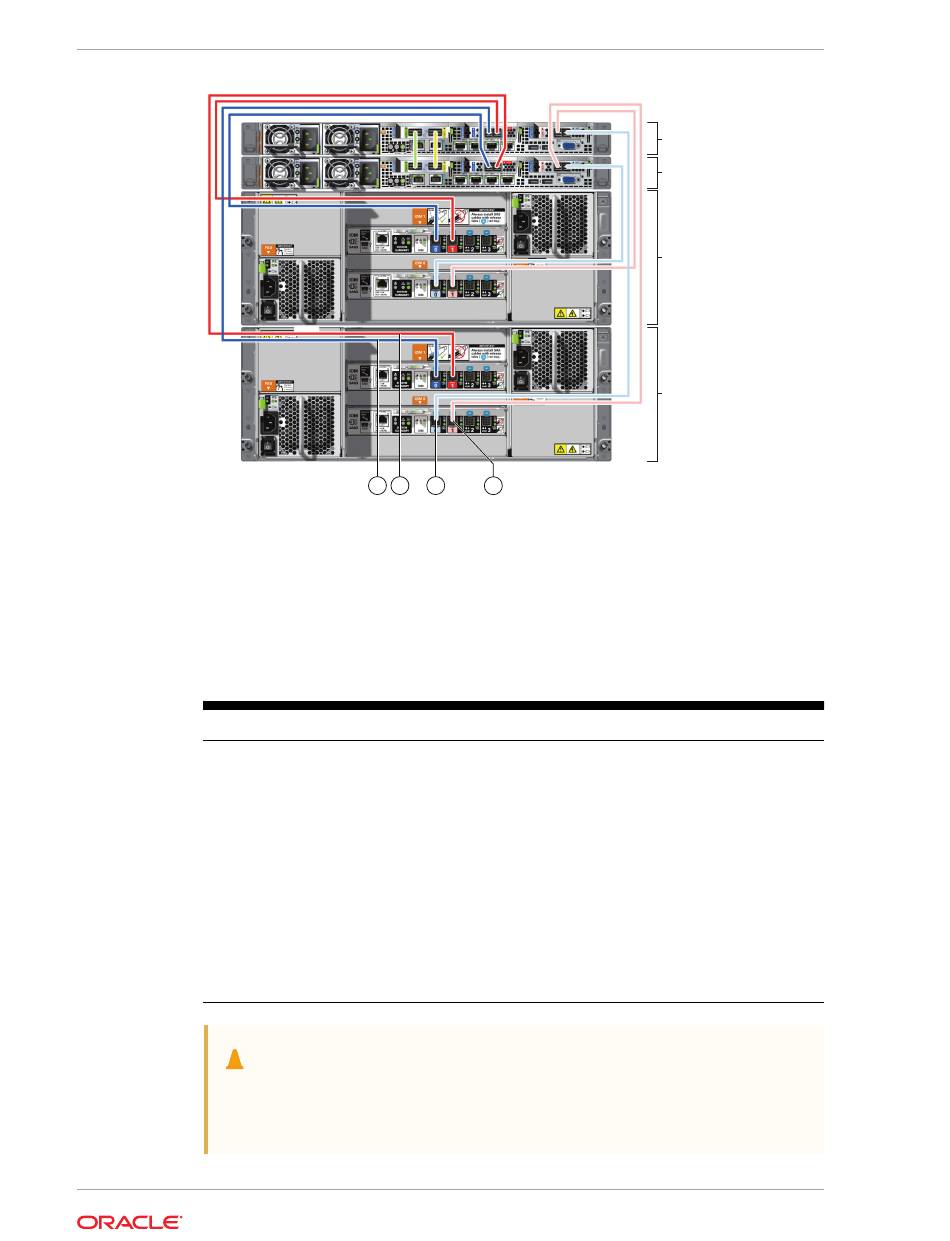

The cables identified with callout numbers in the preceding figures are included with
each shipped Oracle Database Appliance storage expansion shelf. These cables are
all black, but have colored labels at each end that match the references to cable colors
in the text and the label colors on the back panels.
Table 3-2
Description of Callouts for Cabling Oracle Database Appliance
Storage Expansion Shelf
Callout Number
Description
7
Dark blue SAS cable:
•
From: Node 1, PCIe slot 2, SAS0
•
To: Storage expansion shelf, top I/O port 0
8
Light blue SAS cable:
•
From: Node 1, PCIe slot 3, SAS1
•
To: Storage expansion shelf, bottom I/O port 0
9
Dark red SAS cable:
•
From: Node 0, PCIe slot 2, SAS1
•
To: Storage expansion shelf, top I/O port 1
10
Light red SAS cable:
•
From: Node 0, PCIe slot 3, SAS0
•
To: Storage expansion shelf, bottom I/O port 1
Caution:
Do not attach cables to Ethernet ports in the I/O modules labeled "SERVICE
ONLY" when cabling the system. These ports are intended for use by service
engineers only.
Attaching a Storage Expansion Shelf to Oracle Database Appliance
9
8
10
Chapter 3
Nod e 1
Nod e 0
Storag e
Shelf
Storag e
Expansio n
Shelf
3-6
