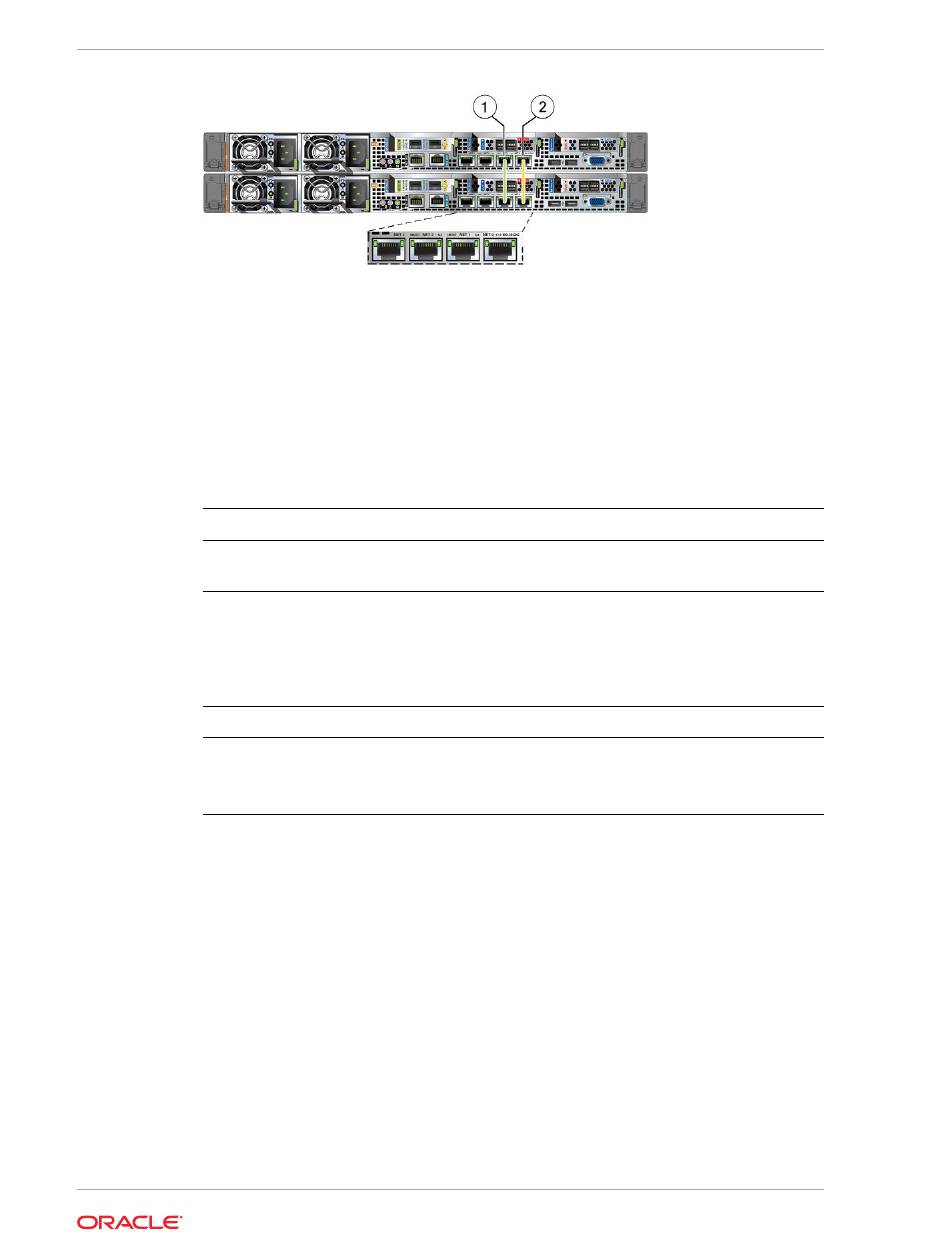

The following sections show the cabling options for 10 GbE SFP+ PCI cards.
Fiber Cables
For optical cables, you must purchase either Short Range (SR) or Long Range (LR)
SFP+ transceivers for each of the network ports, and then plug in the appropriate
optical cable. Currently, Oracle sells both the SR and LR SFP+ transceivers. In
addition to these transceivers, you must purchase the appropriate LC-LC terminated
fiber optic cables from a third-party vendor.
Name
10 GbE Transceiver SR (SFP+)
10 GbE Transceiver LR (SFP+)
Copper Cables
You can purchase the following copper cables from Oracle. These cables have built-in
SFP+ connectors:
Name
TwinAx 1m
TwinAx 3m
TwinAx 5m
Attaching a Storage Expansion Shelf to Oracle Database
Appliance
Review these topics to install and cable a storage expansion shelf for Oracle Database
Appliance.
Topics:
• About Attaching and Cabling Storage Shelves
Review these options and best practices for adding storage shelves for Oracle
Database Appliance X6-2-HA.
• Installing and Cabling a Storage Expansion Shelf
Use this procedure to install and cable a storage expansion shelf for Oracle
Database Appliance

Attaching a Storage Expansion Shelf to Oracle Database Appliance

Part Number
X2129A-N
X5562A-Z
Length
1m
3m
5m
Part Number
X2130-1M-N
X2130-3M-N
X2130-3M-N
