About Network Infrastructure and VLANs on Oracle Database Appliance Virtualized Platform

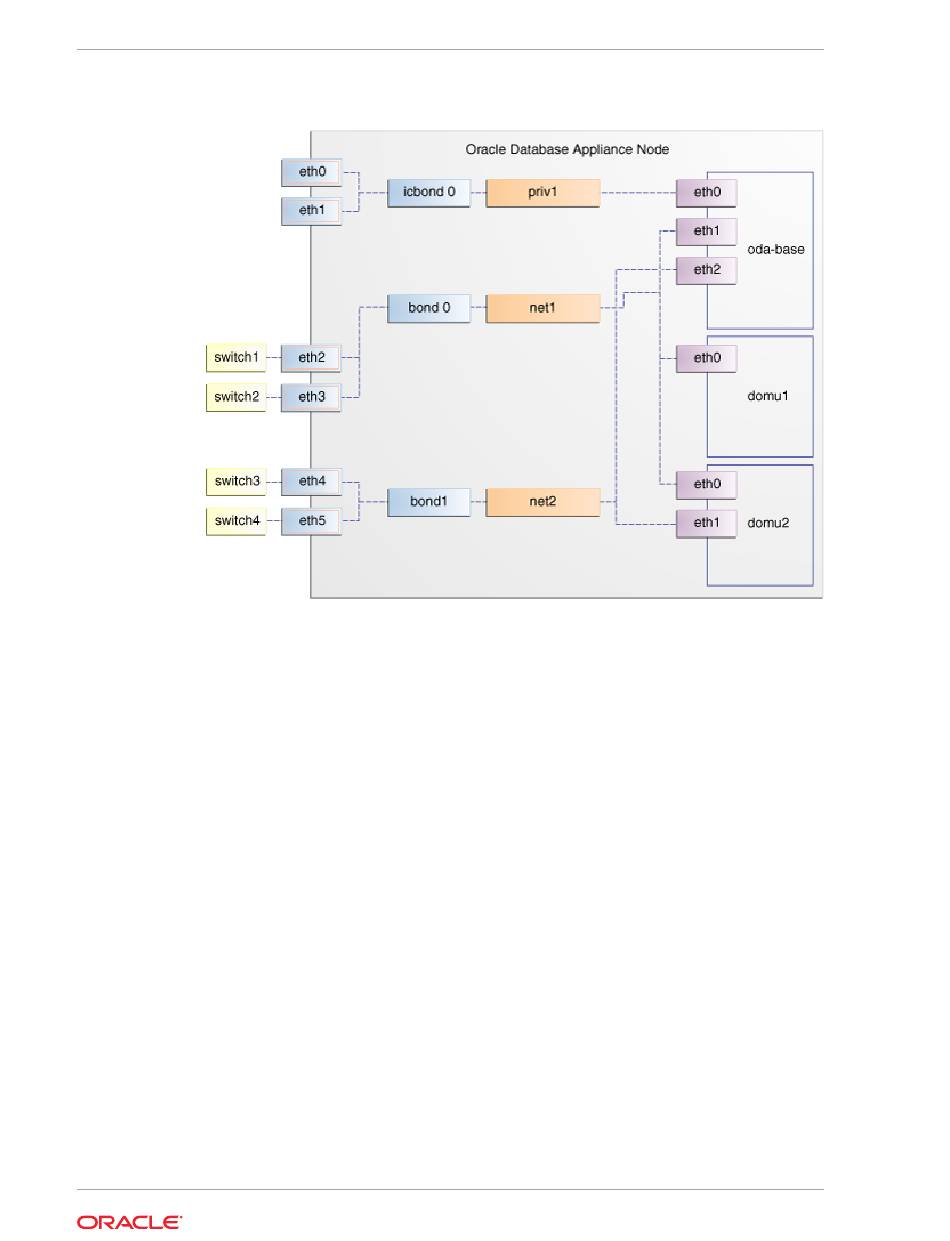

Figure 12-3 Basic Virtual Machine Local Area Network
You assign default VLANs to ODA_BASE during the installation and configuration of
Oracle Database Appliance Virtualized Platform. The figure "Oracle Database
Appliance Virtualized Platform with Virtual Local Area Networks" shows a typical
Oracle Database Appliance configuration using VLANs. The illustration shows the
same configuration as in "Basic Virtual Machine Local Area Networks," but with three
tagged VLANs added for backups (backup), for applications (application), and for
management (mgnt).
