LPOD C-/Ku-Band Outdoor Amplifier/Block Up Converter
System Connections, Installation, and Operation

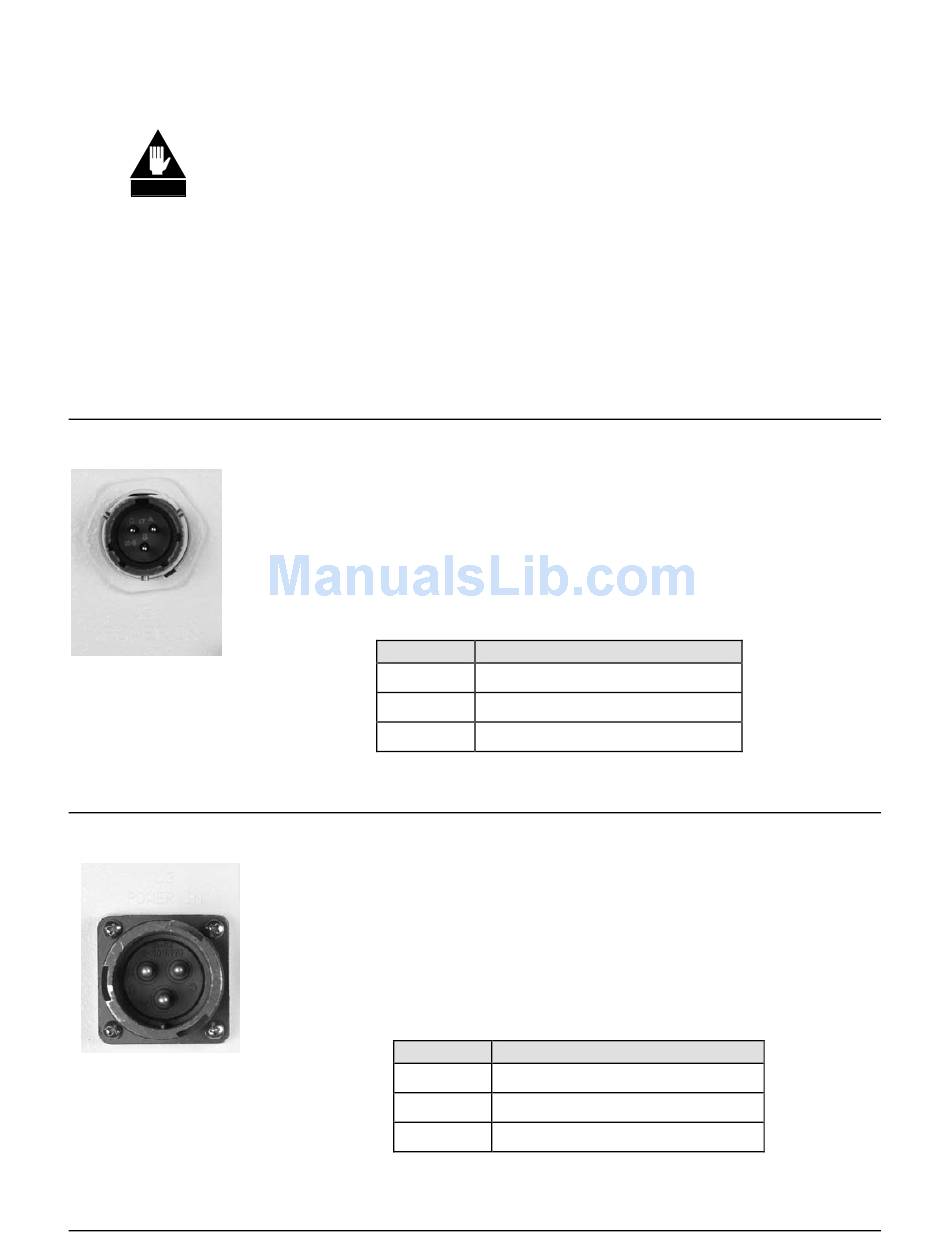

2.2.3 Connector J3 – AC Power Mains
For safety reasons, the user must note that the pin assignments for the PS-1
and PS-2 model power connections are not the same. Product damage or
personal injury may result from not properly reviewing the information in this
WARNING
section.
For both the LPOD PS-1 and LPOD PS-2 models, the prime power input requirements are as follows:
•
90-264 VAC
•
47 to 63 Hz
•
The power supply is power factor corrected. The total power required from the prime
power supply depends on the model used. Please refer to Sect. 1.5 Summary of
Specifications.
2.2.3.1

LPOD PS-1 J3 AC Power Main

2.2.3.2

LPOD PS-2 J3 AC Power Main

The mating connector specification unique to the LPOD PS-1 AC power
interface and the pin assignments (Table 2-2) are as follows:
Mating Connector: CEFD P/N CN/MS-STPG03F02 (ITT Cannon
KPT06B-12-35).

Table 2-2. LPOD PS-1 'J3 PWR IN' Pin Assignments

Pin
A
B
C
The mating connector specification unique to the LPOD PS-2 AC power
interface and the pin assignments (Table 2-3) are as follows:
Mating Connector: CEFD P/N CN/MS-STPG03F07 (Glenair ITS-
3106F20-19SF7).

Table 2-3. LPOD PS-2 'J3 PWR IN' Pin Assignments

Pin
A
B
C
2–3
LPOD PS-1 Assignment
LINE (L1)
NEUTRAL (L2)
GND
LPOD PS-2 Assignment
GND
NEUTRAL (L2)
LINE (L1)
Revision 3
MN-LPOD
