6.2

Windows, Menus and Toolbars

The PSCSV main screen (shown in Figure 6.1) provides access to its many
features by assembling them together according to functional groups called
Menus, Toolbars, Function Buttons and Windows.
TIP: When you first start PSCSV, only a few icons in the program will
be available, but PSCSV will NOT be linked (having an open serial
connection) to a specific Model 933A. You must click the Connection
button or select Connection > Open to initiate a serial connection.
One function that is available when PSCSV is not linked to a Power
Sentinel is viewing data files. You can open data files using the Open
button without being connected to a 933A.
6.2.1 Main Window

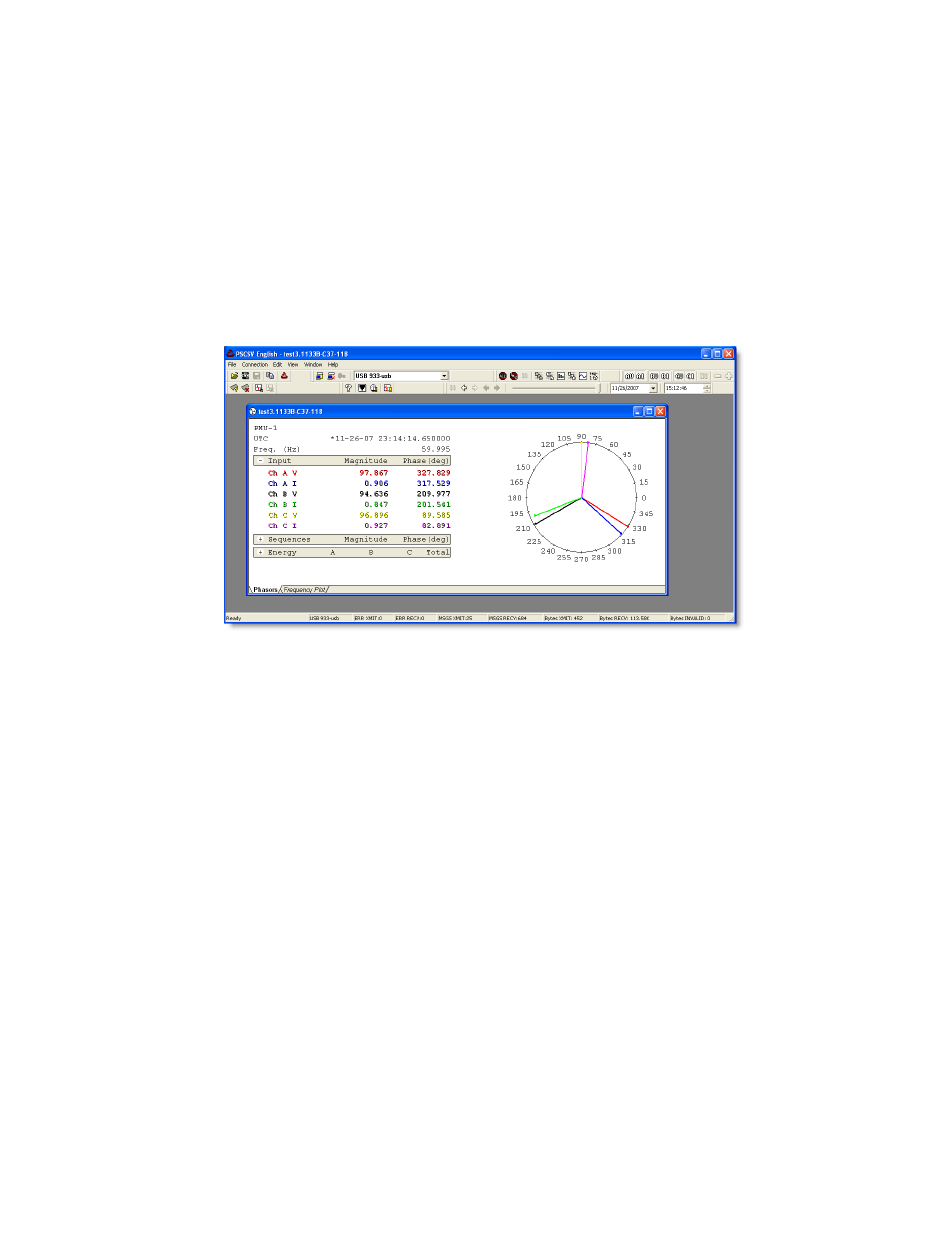

Figure 6.1: Main PSCSV Screen
Switching Toolbars ON or OFF
To switch Toolbars on or off depending on the need and available space,
select 'View' on the Main menu.
Moving and Viewing Features
You can move any Toolbar and dock it around the Main window by
selecting and holding one of the Toolbar handles and dragging the Toolbar
to a preferred location.
