4.5

Waveform Display

Waveform Display indicates the waveforms of rms voltages and currents for
the configured system. Also provides a magnification function for better
viewing. Tabular values displayed at the bottom of the waveform display
are instantaneous voltages and currents for configured system.

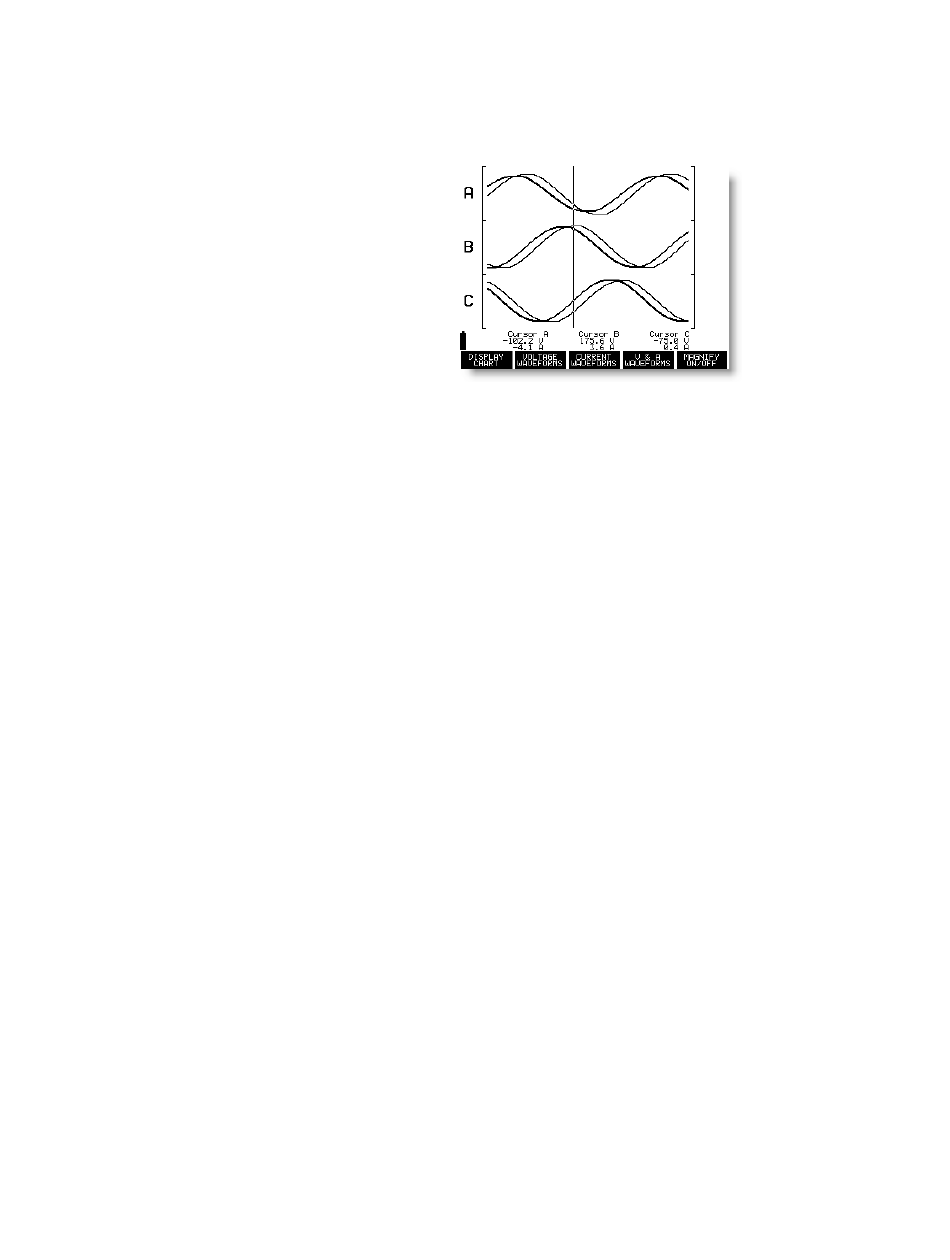

Figure 4.6: Waveform
Display
To Display Waveform Results:
1. Press the DISPLAY key and "2-Waveform Display" to view the
waveforms.
2. Press the VOLTAGE WAVEFORMS soft key, CURRENT
WAVEFORMS soft key, or V & A WAVEFORMS soft key to view
the respective waveforms.
3. Press the MAGNIFY ON/OFF soft key to view the magnified
individual waveforms only. New soft keys allow switching between
phases.
Note: This display does not include a complete set of Instrument Status
indicators (lower left of display) when viewing Waveforms.
View Instantaneous Values
Use the right and left cursor keys to move the vertical cursor for better
viewing of peak values.
51
