Waveform Data

Waveform Data includes a number of cycles of all configured phase voltages
and currents. Control the number of complete cycles using the View >
Time Interval window control and choose a time interval value (from 50
ms to 5 seconds). A cursor allows you to pick out instantaneous voltages
or currents.
To control the number of items on the screen, use the Input toolbar, which
allows you to select only the voltage or current of interest. Note that
filtering does not limit what is being stored in the data file; it only limits
what is being displayed.

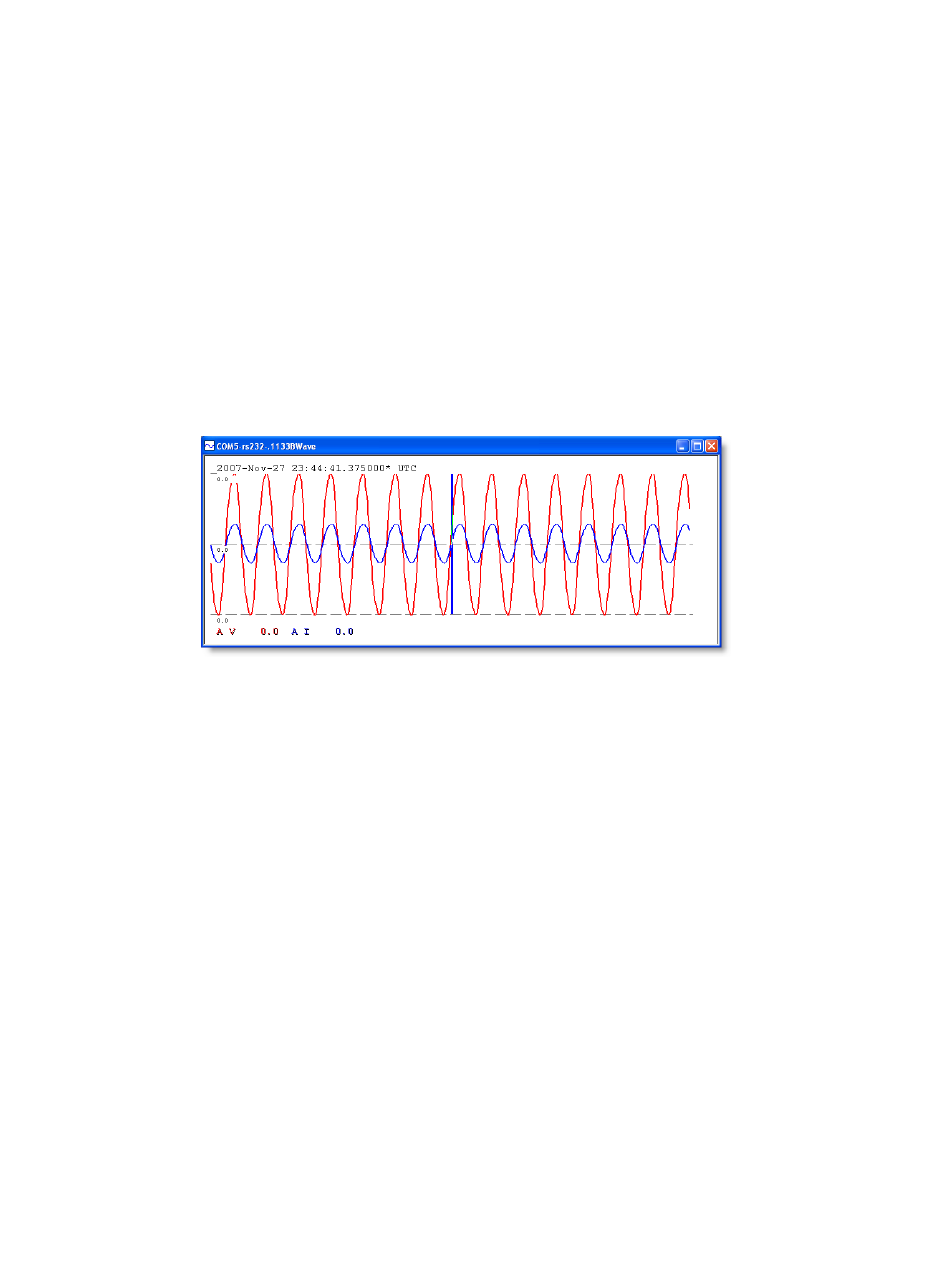

Waveform Data Screen
Graphical view displays current and voltage waveform data within a small
time interval that is somewhat adjustable. Use the Input Toolbar to select
only the voltage or current of interest.
Waveform samples are at 600 per second or approximately 10 per cycle at
60 Hz.
