2.6.2

HyperTerminal BMP File Transfer

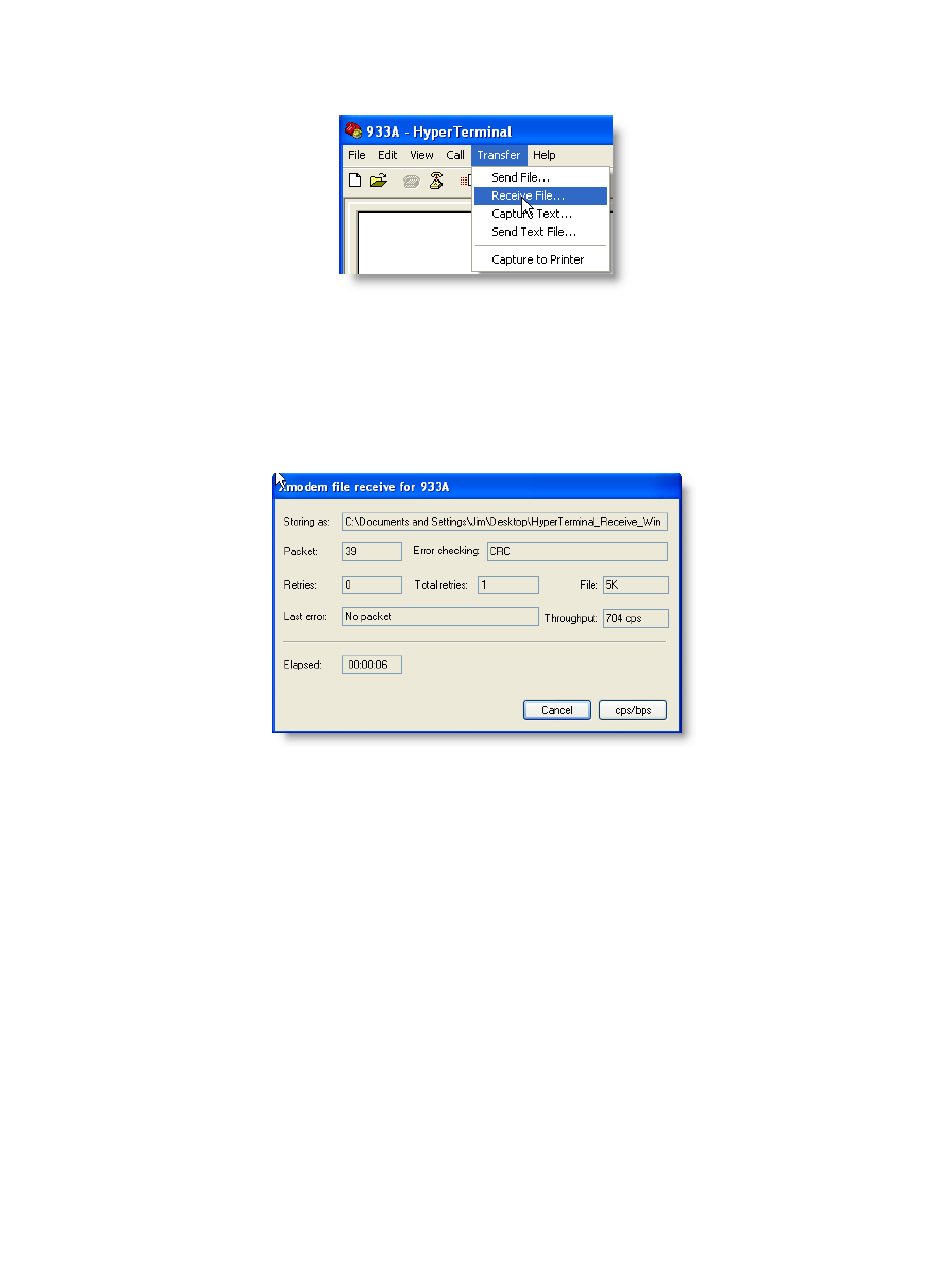

To transfer a bitmap of the display using Hyper Terminal, use the same
steps as in Section 2.6. You should normally select Transfer > Receive
File.
1. When the Receive File window appears, select the location for the
new file capture and choose Xmodem. Now click the Receive button
and type in a file name with a bmp extension.
2. Press the PRINT button on the 933A and wait for the transfer
process to finish.
3. Normally, it takes at least 20 to 30 seconds for the file to begin
transferring (when you will actually see some bytes changing that
indicate a transfer is taking place).
