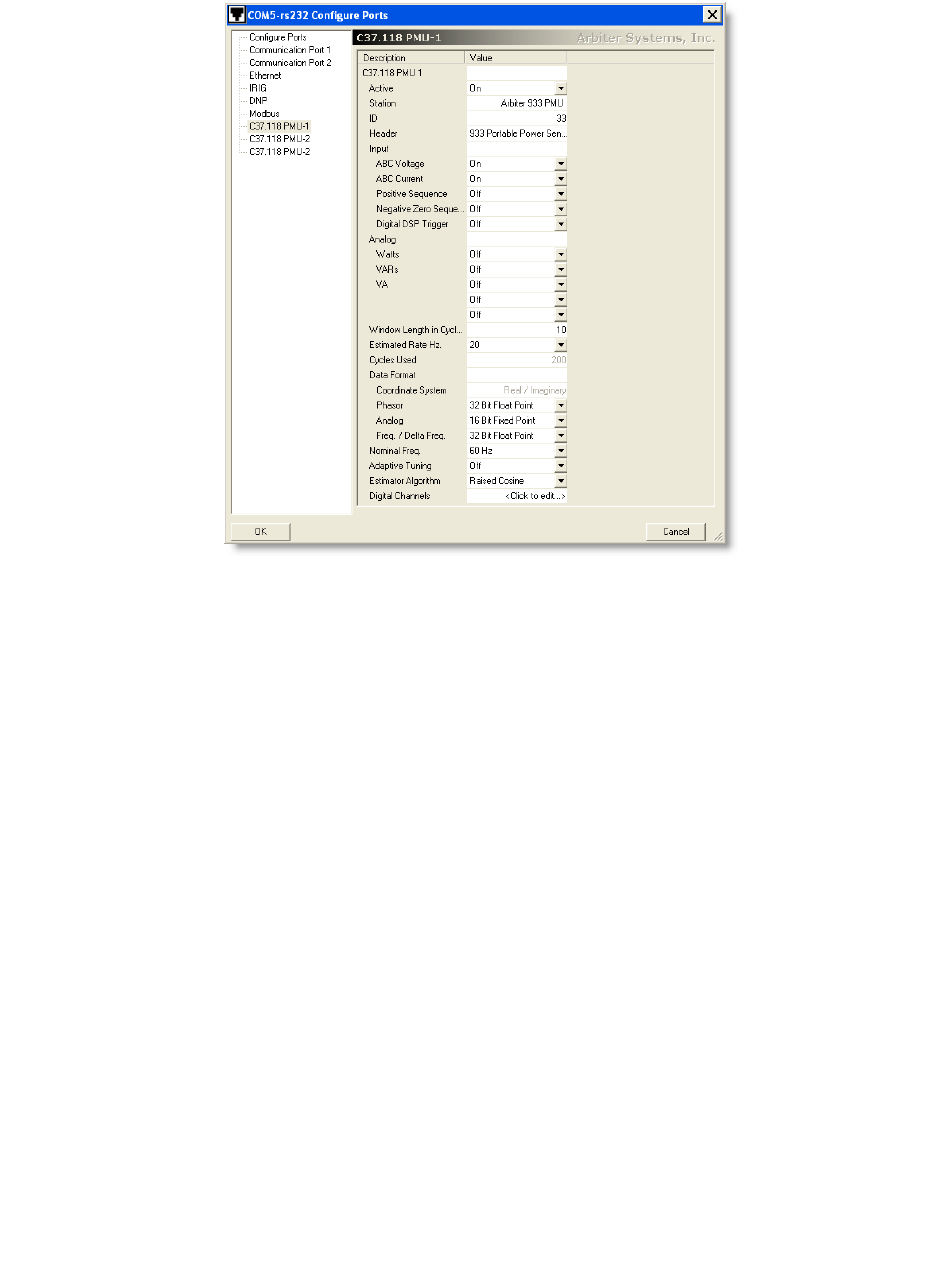

Figure 6.5: Configure Phasors, PMU–1
Positive Sequence, Negative Sequence, Zero Sequence components and
Digital DSP Triggers. Turn them ON or OFF.
Analog allows you to select all of the power-related parameters (Watts,
VARs, and VA) that you wish to activate.
Window Length sets the integer number of measurements averaged for
stability; if you choose 1 for example, the values will update more quickly,
however appear less stable; range of window length is from 1 to 24.
Estimated Rate, Hz is the integer number of phasor samples per second.
Equals 25 sps for 50 Hz and 20 sps for 60 Hz.
Cycles Used is a calculated value based on multiplying the Estimated
