6.3.2

Energy Data

Energy Data includes all energy-related qualities, including Watt-hours,
Volt-Amp-hours, VAR-hours and Q-hours These values are computed as
one-second data and a fresh measurement appears on the screen each
second.
To limit the number of items on the screen, use the Filter Data tool, which
allows you to select only the items of interest. Note that filtering does not
limit what is being stored in the data file; it only limits what is being
displayed.

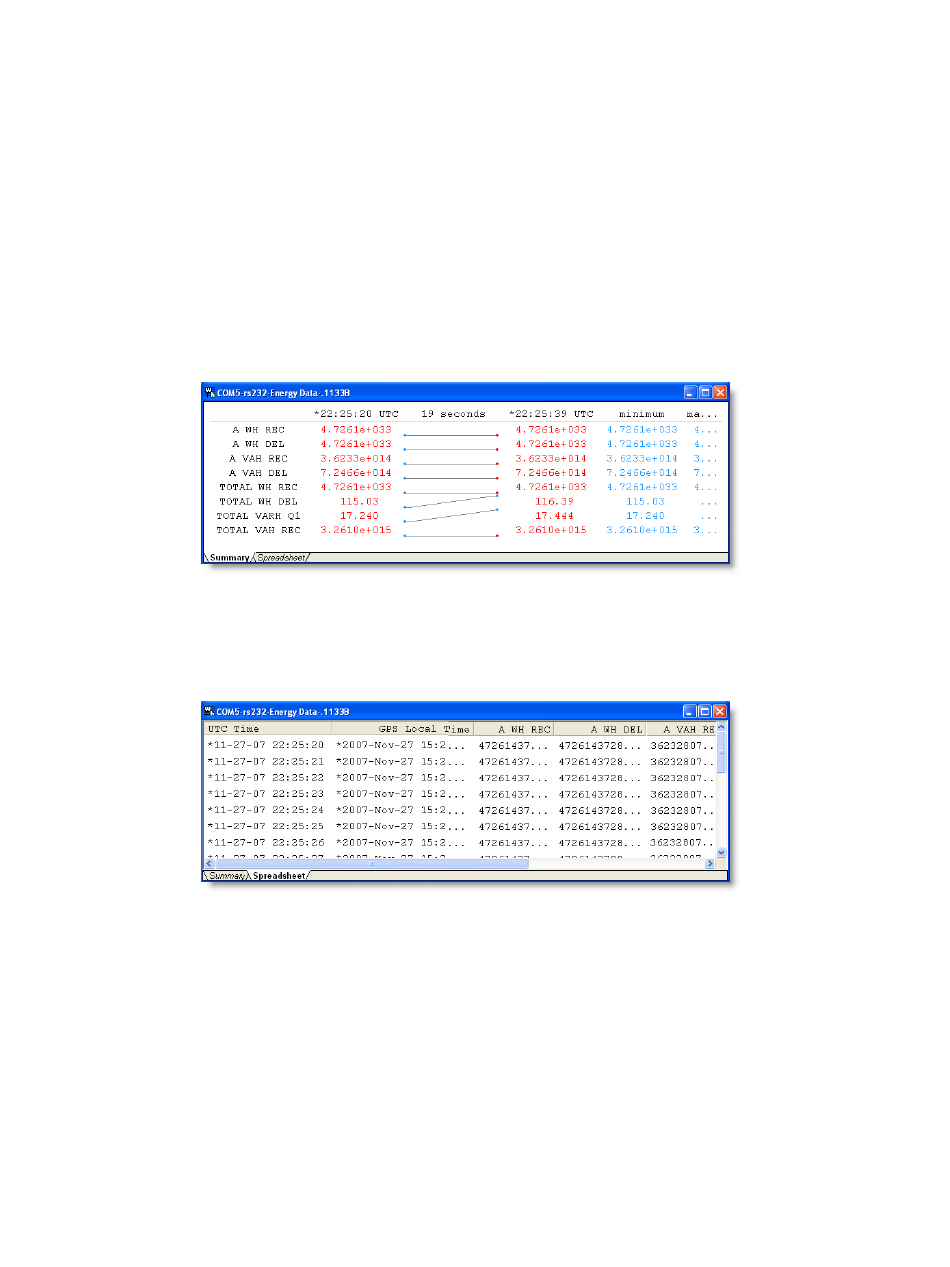

Summary Data Screen
Summary view presents a graph in real time over a one-minute interval
with the beginning and ending measurements and overall minimums and
maximums. Fields include the named parameters, using the Filter Data
tool.
Spreadsheet Data Screen
In spreadsheet format, tabular data includes times (UTC and Local), dates
and one-second, measured parameters as filtered using the Filter Data tool.
