ACTIVATE GPS RCVR (soft key). After it is programmed, you will see
the GPS synchronizing symbol in the status indicators (see Figure 2.9).
3.4

Serial Setup

RS-232 port parameters include Baud Rate, Word Length, Stop Bits and
Parity.

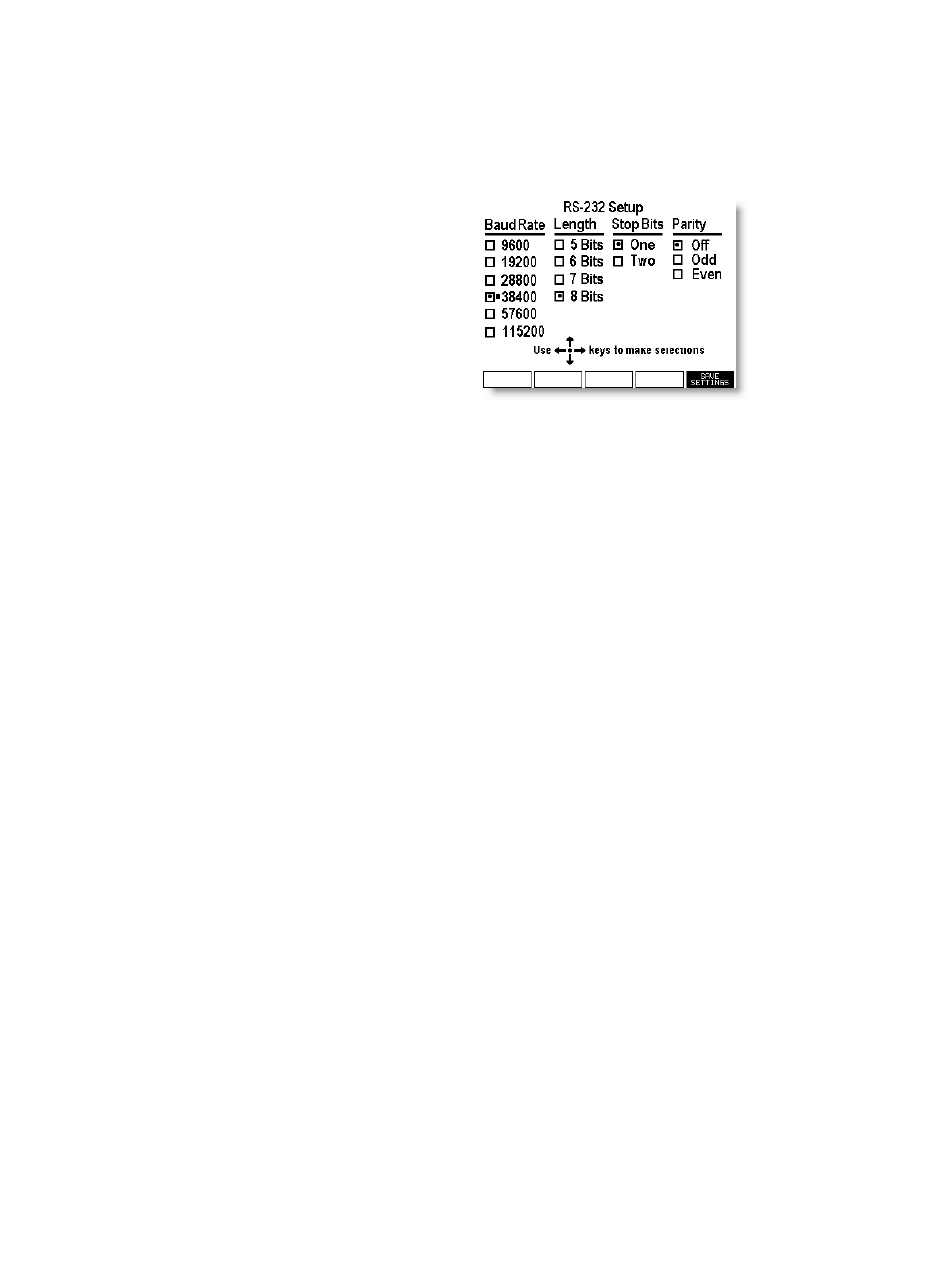

Figure 3.5: RS-232 Setup
3.4.1 Setting up the RS-232 port
In each of the menus described below for specific port settings, use the
cursor keys and Enter key to select the desired values.
1. Press the SETUP key and then choose 2-Serial Setup. To exit, press
either the DISPLAY or the SETUP key.
2. Select the Baud Rate and press the Enter key.
3. Select the Length (word length) and press the Enter key.
4. Select the number of Stop Bits and press the Enter key.
5. Select the Parity and press the Enter key.
6. Press the SAVE SETTINGS soft key before leaving this menu, or
any new settings will be lost.
39
