1.4.9

Adjustable Bail

Order the adjustable handle/bail assembly (part no.
convenient bench top use that allows positioning the Model 933A at
common angles to the viewer. Adjust handle/bail by loosening the two
fastening knobs, moving the handle/bail to the desired position and
tightening the two fastening knobs.

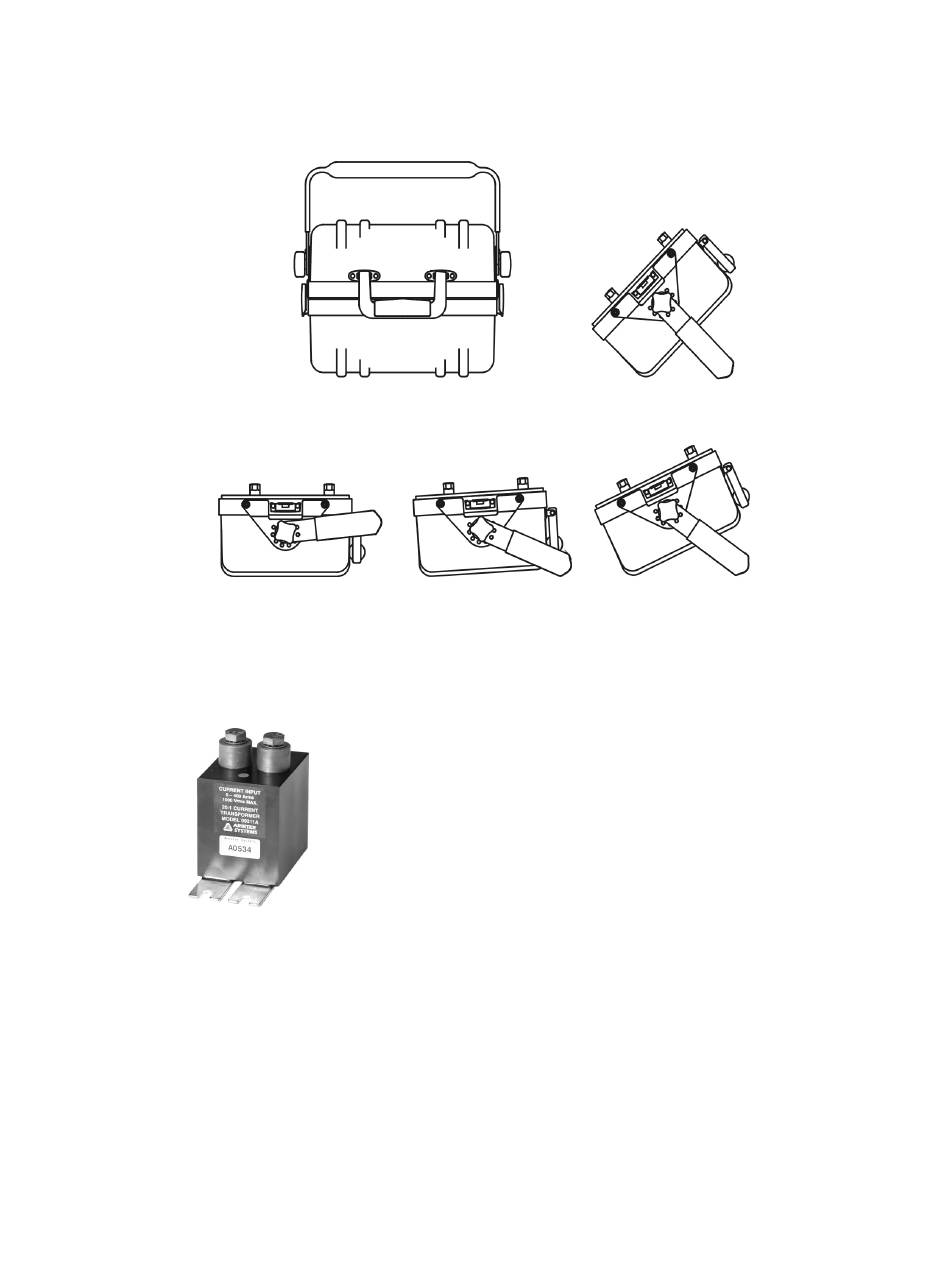

Figure 1.5: 933A Case Bail Assembly
1.4.10

400 Amp, 20:1 Precision CT

The Arbiter Systems, Inc. Model 09311A 20:1 Auxiliary
Current Transformer extends the outstanding accuracy,
features and performance of the Model 933A Portable
Power Sentinel by increasing the current input capability
to 400 Amperes. Due to the careful design of the Model
09311A Auxiliary CT, overall accuracy exceeds 0.1% of
reading and 0.1 degrees over the entire input current
range of 1 to 400 amperes.
AS0035901) for
