Power Quality Triggers

1. Click the Power Quality Triggers label in the left panel of the
Configure Triggers window.
2. Select an unused trigger (by number) by choosing the drop-down
arrow under the column named "Input Signal" and adjacent to the
desired trigger. Input Signal value will indicate OFF if it is not
selected.
3. Begin choosing and filling in parameter values. Note that all fields
are required for Power Quality Triggers, however some field values
may be "OFF" or "0". See Section 7.3.2 for details.
4. Note that "References," the values across the top of the individual
trigger parameters, are the RMS voltage and current values you
would expect under normal operation.

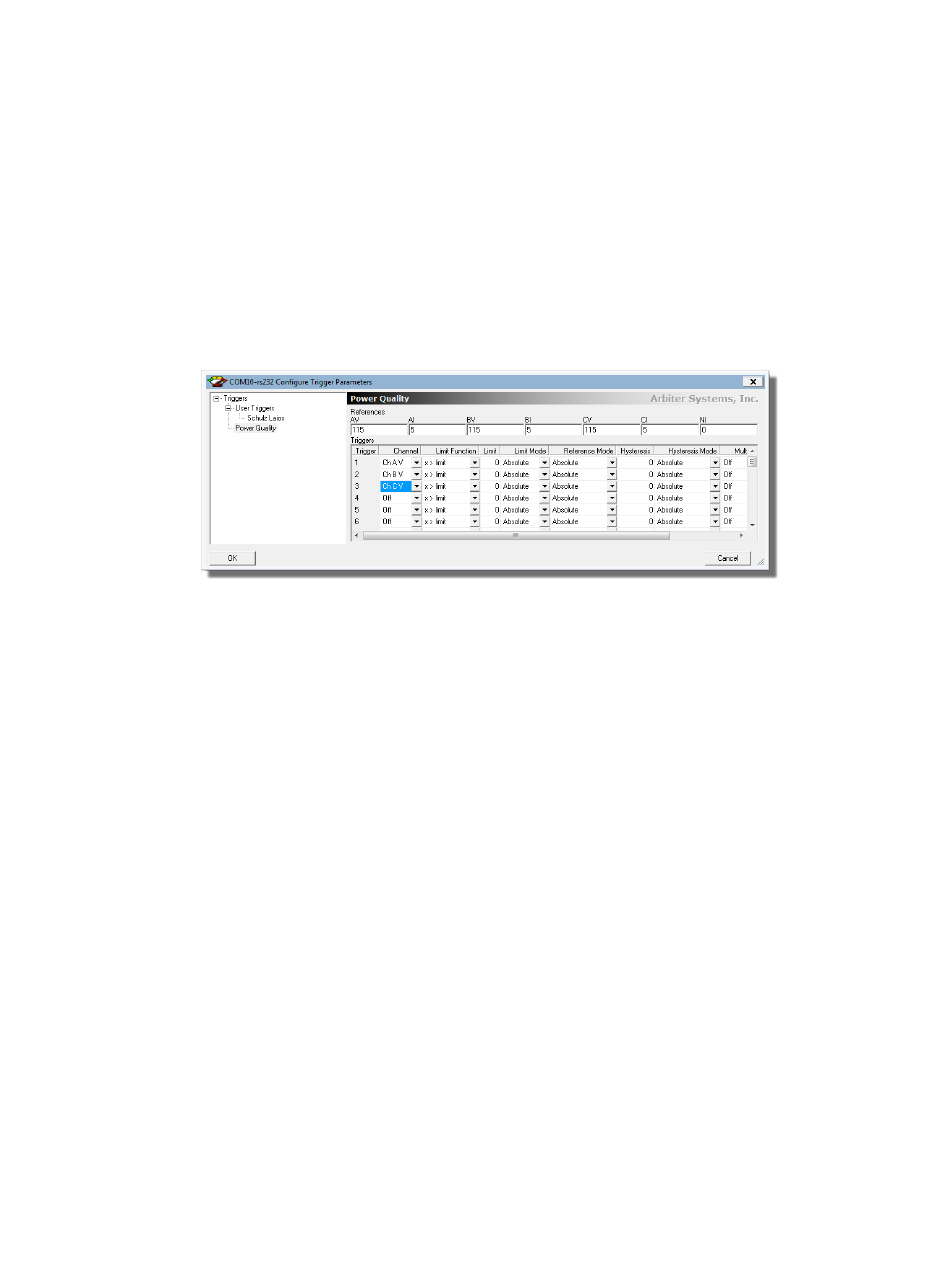

Figure 7.19: Power Quality Trigger Detail
7.6.3 Auxiliary I/O Module
The Auxiliary I/O Module cannot be configured from PSCSV. Perform all
event input and relay setup from the front panel of the Model 933A. See
Section 7.5 for details.
