7.1.2

User Triggers

User triggers are general purpose in nature (compared to power quality
triggers) and allow more flexibility. When active, a trigger signals the
Model 933A to record data based on measured parameters, which are then
processed by the Model 933A DSP. There are a total of 32 different triggers
available that you can assign as either a User or Power Quality trigger.
7.1.3 Power Quality Triggers
Power quality triggers are set up in a manner very similar to User triggers,
however they conform specifically to IEC 61000-4-30, Section 5.4, Supply
Voltage Dips and Swells.
7.2 Setting a User Trigger
Follow the procedure in this section to configure a user trigger from the
front panel. Remember that whenever you select a user trigger number,
it is removed from the pool of 32 available triggers until turned off or
reconfigured.
7.2.1 New Trigger
1. From any screen, press the SETUP key, then select 7- Trigger Setup
from the number keypad. You should see a screen similar to that
shown in Figure 7.1.

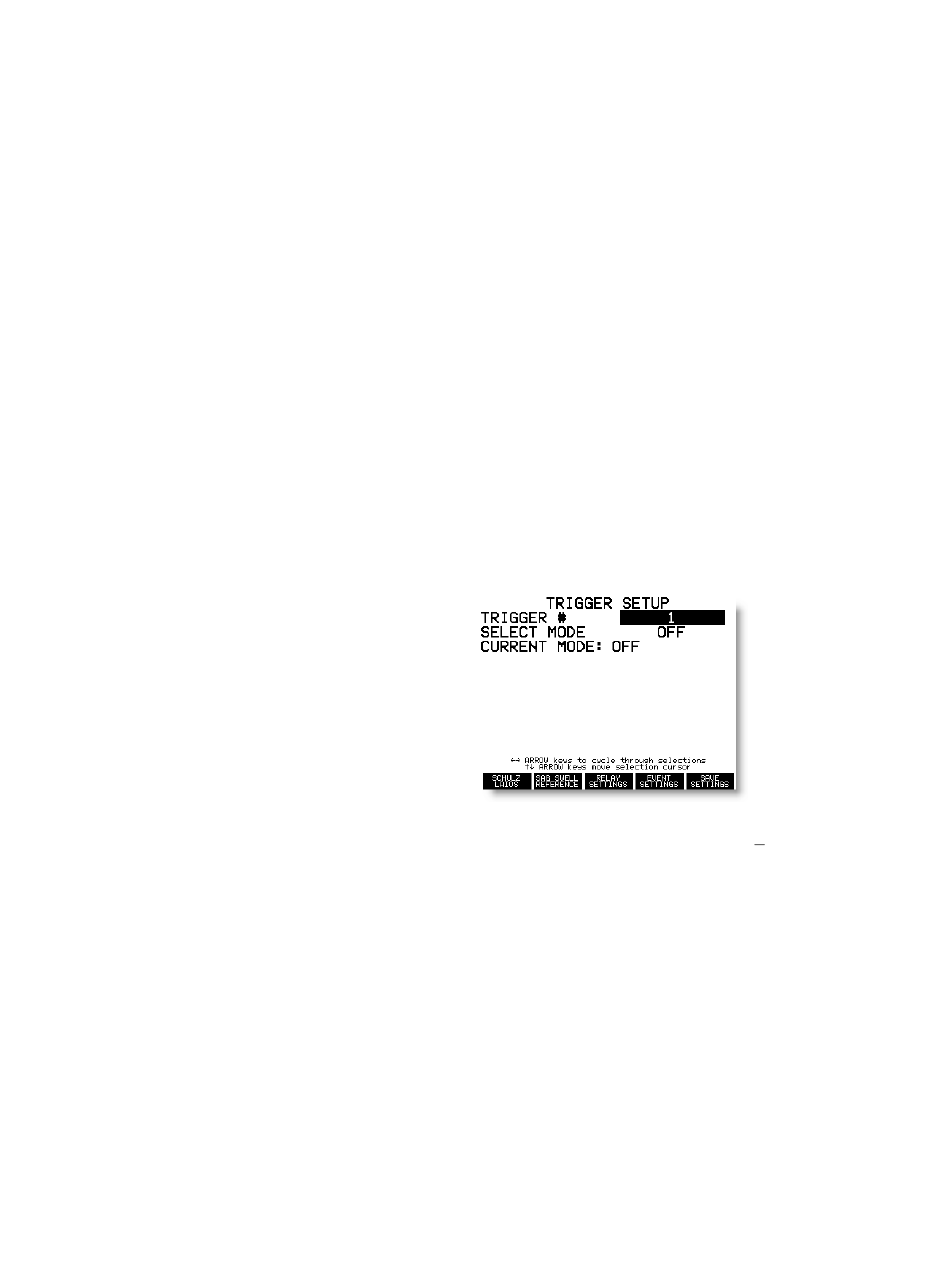

Figure 7.1: Initial Trigger

Setup

2. Using the left/right cursor keys, choose a Trigger number (1
32); using the up/down cursor keys move the cursor to SELECT
MODE, then use the left/right cursor keys to choose USER. Press
