4.3

Tabular Results

Tabular Results include the measured electrical and power-related values
for the selected phase, including minimum, maximum, average and normal.

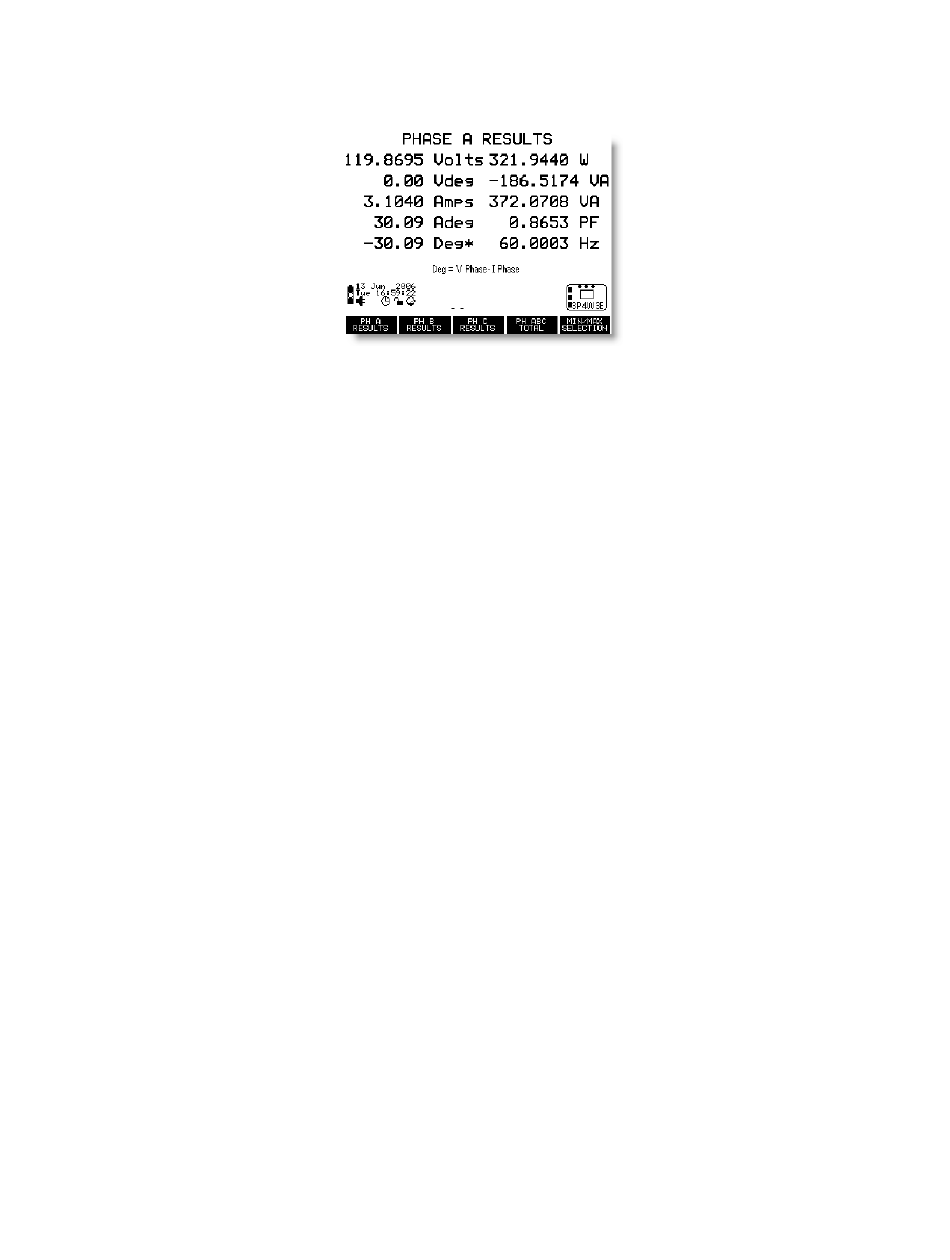

The figure below shows all of the A-phase tabular results.
Figure 4.3: Tabular Results
Tabular Results include
ˆ all configured voltage & current phases
ˆ phase angles (Vdeg, Ideg)
ˆ active/reactive/apparent power (Watts, VARs & VA)
ˆ power factor (PF)
ˆ frequency (Hz)
Use the soft keys to select individual phases and totals. Use the separate
soft key shown below the display to select Normal, Minimum, Maximum,
or Average, and to Restart values.
Status Indicators also show the internal clock time and date, the current
instrument configuration and also the charge level of the internal battery.
For definitions of status indicators in the lower part of the display, see
933A Status Indicators in Section 2.4.12.
49
