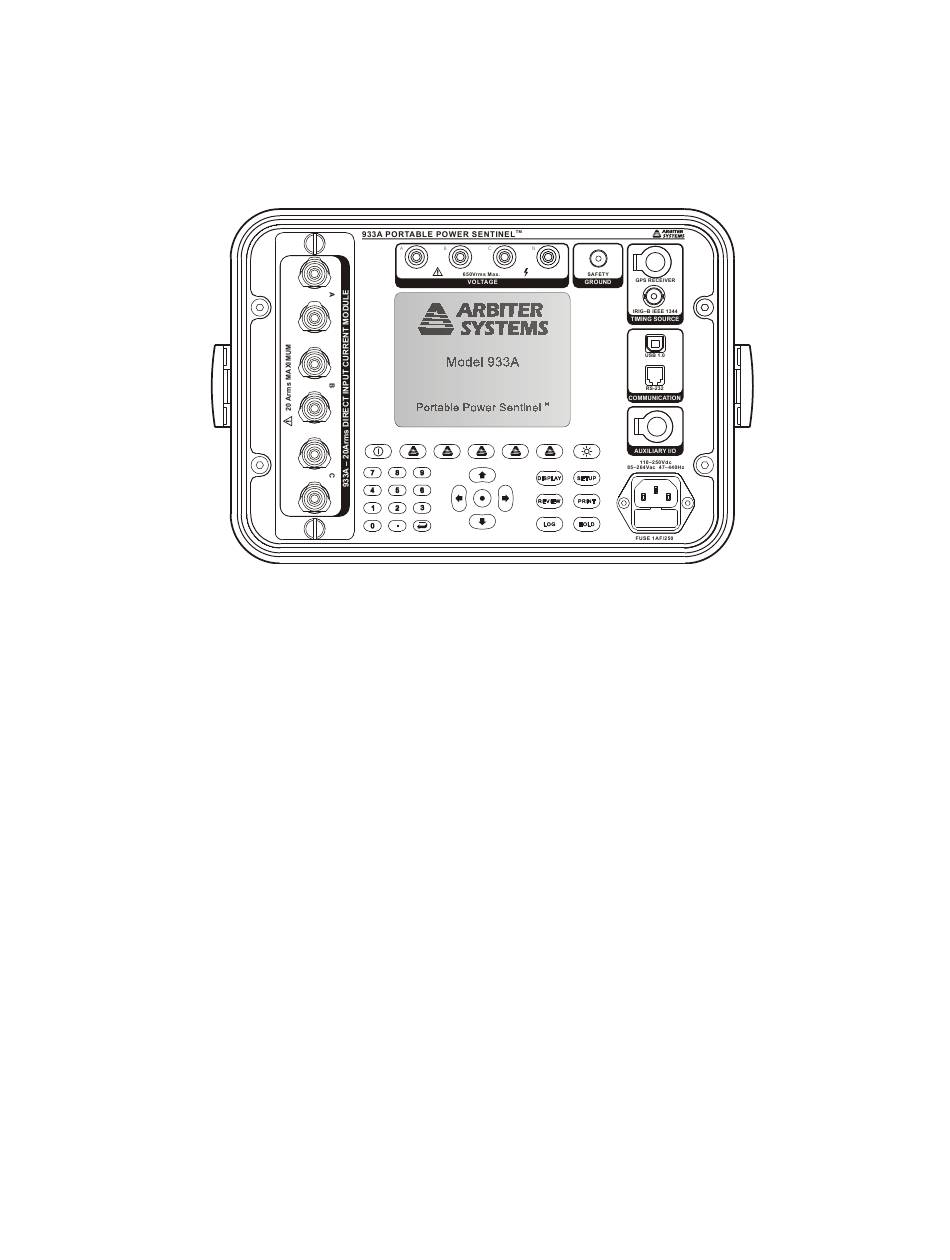

Model 933A

Portable Power Sentinel™

Operation Manual

Arbiter Systems, Inc.

Paso Robles, CA 93446

U.S.A.

www.arbiter.com

Table of Contents

Need help?

Do you have a question about the Portable Power Sentinel 933A and is the answer not in the manual?

Questions and answers

Summary of Contents for Arbiter Systems Portable Power Sentinel 933A

Page 1 Model 933A Portable Power Sentinel™ Operation Manual Arbiter Systems, Inc. Paso Robles, CA 93446 U.S.A. www.arbiter.com...
Page 2 This manual is issued for reference only, at the convenience of Arbiter Systems. Reasonable eﬀort was made to verify that all contents were accurate as of the time of publication. Check with Arbiter Systems at the address below for any revisions made since the original date of publication.
Page 3 Products manufactured by Arbiter Systems are guaranteed against defec- tive materials and workmanship under normal use and service for one year from the date of delivery. The responsibility of Arbiter Systems under this warranty is limited to repair or replacement, at Arbiter Systems’ option, of any product found to be defective.
Page 4 (whether by the substitution of non-approved parts or other- wise). The remedies provided herein are Buyer’s sole and exclusive remedies. In no event shall Arbiter Systems be liable for direct, indirect, incidental or consequential damages (including loss of proﬁts), whether based on contract, tort, or other legal theory.
Page 5 Speciﬁcations Chapter 9 Functional Description Chapter 10 Connection Diagrams Appendix A Glossary Appendix B Uploading New Firmware Appendix C CE Mark Certiﬁcation Copyright © Arbiter Systems Incorporated September 2015 All rights reserved. International copyright secured. PD0031100H – Reorder number: AS0093900...
Page 6: Table Of Contents
Contents 1 Introducing the Model 933A 1.1 Scope ......1.2 Included Accessories ..... . 1.3 933A Features .
Page 7 2.2.3 Charging the Internal Battery ... . . 2.3 Controls and Connections ....2.3.1 Inputs and Interface .
Page 8 3.3.3 Clock Setup in Synchronized Mode ..3.4 Serial Setup ......3.4.1 Setting up the RS-232 port .
Page 9 5.1.4 Erase Log Data ..... 5.2 Steps to Locate & Review Records ....5.2.1 Locating the Data Logged During an Event .
Page 10 6.4.4 Save As Snapshot ....100 7 Triggers and Event Recording 7.1 Introduction ......101 7.1.1 Recording Data to 933A Flash Memory .
Page 11 9 Functional Description 9.1 Scope ......129 9.2 Overview ......129 9.3 Clock Synchronization .
Page 12 A Glossary A.1 DHCP ......158 A.2 DNS ....... 158 A.3 DSP .
Page 13 List of Figures 1.1 933A with Accessories ..... 1.2 813AT Voltage Lead Set ....1.3 816AT Current Lead Set .
Page 14 4.1 Display Menu ......4.2 Min–Max Setup ......4.3 Tabular Results .
Page 15 6.5 Conﬁgure Phasors, PMU–1 ....6.6 Conﬁgure Measurement Parameters, DSP Mode ..6.7 Data Filter Tool ......6.8 Downloaded One–Second Data .
Page 16 B.3 Uploader Progress Window ....165 B.4 Successfully Uploaded File Information ... . 166...
Page 17 List of Tables 9.1 Power/Energy Error Analysis ....131 9.2 Signal Functions Available for Triggering ... 143 9.3 Trigger Channel Parameter Summary (32 Channel) .
Page 18 xviii...
Page 19: Introducing The Model 933A
Chapter 1 Introducing the Model 933A Scope The Model 933A Portable Power Sentinel is designed to provide highly- accurate measurement of electrical power quality and many other electrical values important to the power industry. A true seven-channel instrument, the Model 933A allows independent measurement of three-phase currents and voltages (including neutral), and associated values.
Page 20: Included Accessories
Included Accessories Accessory Ordering Part Number CT Input Module AS0074100 Country speciﬁc AC power cord P01R – P12R Safety ground lead with clip 812H Modular DB-9 to RJ-11 adapter AP0007700 Operation Manual AS0093900 Figure 1.1: 933A with Accessories...
Page 21: Features
933A Features Listed below are some of the most obvious and signiﬁcant features of the Model 933A, Portable Power Sentinel. While many of the most signiﬁcant features of the 1133A Power Sentinel are present, the 933A embodies some additional features that make it uniquely important as a synchronized power measurement device.
Page 22: Available Accessories
ˆ Auxiliary I/O Module 1.4.1 Lead Set Information Arbiter Systems oﬀers test lead wire with your choice of two insulation types, Santoprene and silicone. Both silicone and Santoprene insulated lead wires are made using ﬁnely-stranded rope-lay copper conductors for exceptional ﬂexibility and limpness.
Page 23: Three-Phase Voltage Lead Set, 813At
1.4.2 Three-Phase Voltage Lead Set, 813AT The 813AT is a three-phase, four-wire lead set that provides safety- shrouded stackable 4-mm banana plugs on both ends of the lead set; includes various plug-on accessories compatible with the 4-mm banana plugs. This lead set is assembled with #16 Santoprene-insulated lead wire;...
Page 24: 3-Phase Spade Lug, Current Lead Set, 816At
1.4.4 3-Phase Spade Lug, Current Lead Set, 816AT The 816AT is a three-phase current lead set, equipped with 1/4-inch spade lugs on both ends. Spade lugs are gold-plated for long life in demanding service, and have oversized barrels to accommodate our ﬁnely stranded test lead wire.
Page 25: Universal Test Plug Current Lead Set, 811At
1.4.6 Universal Test Plug Current Lead Set, 811AT Assembled with our Universal Test Plug on one end and 1/4-inch spade lug on the other; compatible with ABB/Westinghouse, Superior, Meter Devices and States series test jacks. Materials and assembly are similar to the 816AT Three-Phase Spade Lug, Current Lead Set.
Page 26: Adjustable Bail
Figure 1.5: 933A Case Bail Assembly 1.4.10 400 Amp, 20:1 Precision CT The Arbiter Systems, Inc. Model 09311A 20:1 Auxiliary Current Transformer extends the outstanding accuracy, features and performance of the Model 933A Portable Power Sentinel by increasing the current input capability to 400 Amperes.
Page 27: Clamp-On Current Probes For The 933A
The 933A-03 (order no. AS0097900) has a unique single jack that allows for voltage and current input signals. Arbiter Systems produces dedicated cable assemblies for the Model 933A-03 to work with this current module.
Page 28: Gps Antenna Module
1.4.13 GPS Antenna Module To synchronize the 933A with the GPS, order the GPS Antenna Module (Part No. AS0077600). It includes a 50-feet cable assembly that attaches between the front panel of the 933A and the GPS module. The antenna module provides the best accuracy for 933A timing measurements.
Page 29: Auxiliary I/O Module
1.4.14 Auxiliary I/O Module The AS0077700, Auxiliary I/O Module, connects to the Model 933A Auxiliary I/O input connector and has two main features: ˆ Four Event Input connections ˆ Three sets of relay contacts: two Form-C, mechanical contacts and one solid-state contact (KYZ rated) Event Input Conﬁguration See page 115 for information on setting up the Event Inputs in the External I/O Module.
Page 30: Safety Information
Current Probe Arbiter Systems may supply various current probes based on availability, and considers them as accessories to the Model 933A. Make sure to stay within the limitations of the 933A if supplying your own current probe.
Page 31 ˆ The maximum allowable input to the current terminals is 40 A peak and 20 Arms continuous. ˆ Remove all test leads that are not in use. ˆ The front-panel ground terminal should always be connected to the safety ground for the circuit under test. This is especially critical for operation with the line cord unplugged, since the AC line input safety ground will not be connected.
Page 32: Basic Operation
Chapter 2 Basic Operation Introduction “Basic Operation” describes all of the 933A keys, connectors and menus, and how to operate the Model 933A primarily from the front panel buttons. You may also remotely control the 933A from a computer running PSCSV application software.
Page 33: Operation With Battery Power
2.2.2 Operation with Battery Power The Model 933A comes equipped with an internal, NiMH battery pack; charge by connecting the 933A with the included power cord to an AC outlet, or external DC Power. Under battery power, the Model 933A should run for at least 8 hours on a full charge.
Page 34: Controls And Connections
Battery information is also available when selecting conﬁguration and status information. Select DISPLAY > 9–Conﬁg & Status > BATTERY & FLASH (soft key) to view the screen shot in Figure 2.1. BATTERY STATUS Values listed under BATTERY STATUS are for factory use when trouble shooting a problem with the unit.
Page 35: Front Panel Description
Figure 2.2: Front Panel Description...
Page 36: Inputs And Interface
2.3.1 Inputs and Interface Front Panel Keys The 933A has thirty front-panel keys with the following general uses: ˆ Soft Function Keys (5) ˆ Dedicated Function Keys (8) ˆ Cursor control with Enter key (5) ˆ Numeric keypad (12) 2.3.2 Front Panel Connectors Connectors on the 933A have the following purposes: ˆ...
Page 37: Voltage Inputs, 650 Vrms
2.3.4 Voltage Inputs, 650 Vrms Four input connectors are available for measuring AC voltages. All four of the inputs use identical circuitry, which allow for measurement of voltages up to 650 Vrms between inputs. See Figure 2.3 below. Safety-insulated banana jacks are used to connect voltage signals to the 933A, are labeled “A”, “B”, “C”, “N”...
Page 38: Synchronizing The 933A
2.3.6 Synchronizing the 933A Synchronize the 933A with either an Arbiter GPS Module (AS0077600) or unmodulated IRIG-B time signal. Either of these two external timing signals will keep all the 933A measurements synchronized. When not connected to an external timing signal, the internal clock runs oﬀ...
Page 39: Irig-B Timing Signals
2.3.8 IRIG-B Timing Signals To accurately synchronize the 933A to an IRIG-B signal as a reference, you must have a good IRIG-B signal connected to the IRIG-B IEEE 1344 BNC connector on the 933A. This is an unmodulated IRIG-B (DC Level Shift) signal.
Page 40: Auxiliary I/O Port
RS-232C For RS-232C communications use PSCSV, or for bitmapped downloads use a terminal program like HyperTerminal. Access the RS-232 port through a small RJ11 connector on the front panel using the included 6-foot phone cord and RJ11 to DB-9F null-modem adapter. To connect the 933A to a computer using PSCSV, see Chapter 6, “PSCSV Basics.”...
Page 41: Function Keys & Indicators
Function Keys & Indicators In the following pages you will ﬁnd descriptions for the main functions of the Model 933A. Access these functions through either PSCSV, or by using the 30 front-panel keys. Each key is inscribed with a speciﬁc function name or symbol depicting the function.
Page 42: Setup Conﬁguring The 933A
2.4.3 Setup Conﬁguring the 933A Press the Setup key to conﬁgure all of the features controlling the operation of the 933A. For example, before actually connecting the 933A to a circuit, it should be conﬁgured to match the measured electrical system. Whether it is single phase or three phase, with one, two, or three elements, the 933A is adaptable to most of the commonly-wired systems.
Page 43: Display Lighting Key
2.4.5 Display Lighting Key Press the Display key to view the display lighting menu and adjust it. Three display menu choices are available: BACKLIGHT ON, BACK- LIGHT OFF and BACKLIGHT AUTO-OFF. BACKLIGHT AUTO-OFF provides display backlighting for a period of 10 minutes and shuts oﬀ the backlighting after 10 minutes have expired to save the internal battery and extend the lifetime of the backlight.
Page 44: Numeric Keypad
2.4.7 Numeric Keypad Use any of the numeric keys to select various menu items or to enter data into the Model 933A. When entering numeric data, use the right or left arrow key to move the cursor to the right or left digits – see Figure 2.8. 2.4.8 Log Key Press the Log key to immediately record a complete set of data to ﬂash...
Page 45: Hold Key
Use the DISPLAY key to cancel the transfer. To capture a bitmapped ﬁle, use a terminal program, like Hyper Ter- minal or Tera Term Pro; See Section 2.6 “Bitmapped File Downloading” later in this chapter. 2.4.11 Hold Key Press the Hold key to alternate between the Measurement Mode and Hold Mode.
Page 46 Data Modes There are ﬁve data modes for storing and handling data, including (1) Key Logging logging one record to ﬂash by pressing the LOG key, (2) Auto Logging logging multiple records to ﬂash using the Autolog feature, (3) Trigger Log notiﬁcation of triggered data being held in ﬂash, (4) Review Data notice that you are reviewing data stored in ﬂash, and (5) Send...
Page 47: Pscsv Software
PSCSV Software PSCSV software is an included accessory with the 933A. It was developed by Arbiter Systems to assist you in conﬁguring the 933A, for managing and downloading logged data. While most features are accessible from the front panel, some are only available with PSCSV. See “PSCSV Basics” in Chapter 6, and “Triggers and Event Recording”...
Page 48: Conﬁguring
2.5.3 Conﬁguring Conﬁgure all SETUP functions through PSCSV or through the front panel keys. 2.5.4 Downloading Data When downloading data, all of the data is in binary format and can be located in the directory of your choice on the computer running PSCSV. Bitmapped File Downloading Purpose The PRINT key has one basic function: to send a bitmapped ﬁle of...
Page 49: Tera Term Pro Bmp File Transfer
2.6.1 Tera Term Pro BMP File Transfer To transfer a bitmap of the display using Tera Term Pro, use the same steps as in Section 2.6. You should normally select File > Transfer XMODEM > Receive. 1. A ﬁle Save window should appear next. Type in the name with a bmp extension.
Page 50: Hyperterminal Bmp File Transfer
2.6.2 HyperTerminal BMP File Transfer To transfer a bitmap of the display using Hyper Terminal, use the same steps as in Section 2.6. You should normally select Transfer > Receive File. 1. When the Receive File window appears, select the location for the new ﬁle capture and choose Xmodem.
Page 51: The Setup Menu
Chapter 3 The Setup Menu Setup Key The Model 933A has two main function keys named DISPLAY and SETUP. Most of the interaction between the user and 933A will begin with these two keys. From the SETUP key you will be able to conﬁgure all of the 933A functions.
Page 52: Input Setup Menu
Input Setup Menu Use the Input Setup Menu to conﬁgure the 933A to correctly match the electrical system you are measuring. The 933A provides six standard choices incluing a method for customizing the input. A secondary menu allows you to select the frequency mode, bandwidth, frequency reference and phase reference.
Page 53: Custom Input Conﬁguration
Custom Input Conﬁguration Selection Choose the Custom Input Conﬁguration menu if you want to individually select the inputs and reference signals. This includes input signals, nominal frequency (50 Hz, 60 Hz), choice of signal for frequency reference and phase reference. Choose “Absolute” for Phase Reference if you have a GPS or IRIG-B input.
Page 54: Clock Time Set
Clock Time Set 3.3.1 Internal Real-Time Clock Before making measurements, take time to set up the real-time Clock. Ca- pable of operating in three diﬀerent modes, each clock mode oﬀers diﬀerent performance advantages. Whatever mode you ultimately decide to use, it is important to understand the performance diﬀerences, and to conﬁgure the clock so that the clock performance matches your expectations.
Page 55: Clock Setup In Free-Running Mode
3.3.2 Clock Setup in Free-Running Mode In free running mode the internal oscillator in the 933A is not disciplined by an external clock signal, such as IRIG-B or GPS. When manually setting the internal clock on the 933A always set it to your Local time. Verify this in the second line of Figure 3.4, which states, Instrument Time:LOCAL.
Page 56: Clock Setup In Synchronized Mode
3.3.3 Clock Setup in Synchronized Mode 1. Set the internal clock in the free-running mode as described in Section 3.3.2. 2. Connect the timing signal from an IRIG-B or GPS source. 3. Check your clock settings. Make any changes as required. Select UTC or Local 1.
Page 57: Serial Setup
ACTIVATE GPS RCVR (soft key). After it is programmed, you will see the GPS synchronizing symbol in the status indicators (see Figure 2.9). Serial Setup RS-232 port parameters include Baud Rate, Word Length, Stop Bits and Parity. Figure 3.5: RS-232 Setup 3.4.1 Setting up the RS-232 port In each of the menus described below for speciﬁc port settings, use the...
Page 58: Autolog Setup
Autolog Setup If you need to automate the tasks of measuring and logging data to the internal ﬂash memory card, then you may want to conﬁgure the Autolog feature. The purpose is to allow you to begin logging automatically at a speciﬁed time and date, at a chosen rate, and then quit.
Page 59: Review Log Data
“How many 10-second intervals do you want?” For 15 minutes, this means 100 intervals (realize that the ﬁrst record occurs at 9:30:00 a.m.). When ﬁnished, press the EXIT DURATION soft key. 5. Press the AUTO LOG ENABLE soft key to arm the Autolog feature so that the 933A begins measuring when its clock reaches the Start Time.
Page 60: Ct/Pt Setup Menu
CT/PT Setup To automatically compensate for CT’s and PT’s (current and potential transformers), the 933A provides the CT/PT Setup menu to install these constants. By doing this, the 933A can directly display the primary current or voltage by converting the actual secondary current or voltage to the primary value.
Page 61: Custom Dst Setup Menu
Custom DST Setup Use the Custom DST (Daylight Saving Time) Setup if you want to customize the daylight saving changeover feature to one that is not oﬀered under Clock Time Set. Features include setting the start and stop date and time. To set the internal clock, see Section 3.3.2, Clock Setup in Free Running Mode.
Page 62: Current Setup Menu
Current Setup Use Current Setup to adjust the current input sensitivity by a factor of approximately 20. Adjustable settings are either 1 or 20 Amps for each channel (A, B, C or N). By switching to 1 Amp, you are increasing the sensitivity of any one, or all, of the current input channels.
Page 63: Low Current Module Setup Menus
The 933A- 03 has a unique single jack that allows for voltage and current input signals. Arbiter Systems produces dedicated cable assemblies (purchased separately) for the Model 933A-03. Figure 3.11: Low Current Module Setup Menus 3.9.1...
Page 64: Trigger Review Menu
3.9.2 Conﬁguring Before using the current module, make sure to press the SETUP key, then 6 Current Setup to conﬁgure the range. You should see the screen/menu similar to that shown in Figure 3.11. Notice from the table in screen shot that there are two ranges for current and two ranges for voltage.
Page 65: The Display Menu
Chapter 4 The Display Menu Display Selection Press the DISPLAY key to select and view the various electrical mea- surements. This includes the active signal(s) connected to the 933A and any data stored on ﬂash. When using the REVIEW key to view recorded data, the Display Selection menu is again used to help you select the type of data.
Page 66: Min–Max Setup
Min–Max Setup Use the Min–Max Setup, within any data display screen, to view the normal, minimum, maximum and average data values. To restart Min– Max accumulation, press the RESTART MIN/MAX in the Min–Max menu. Figure 4.2: Min–Max Setup To select Min / Max / Average or Normal: 1.
Page 67: Tabular Results
Tabular Results Tabular Results include the measured electrical and power-related values for the selected phase, including minimum, maximum, average and normal. The ﬁgure below shows all of the A-phase tabular results. Figure 4.3: Tabular Results Tabular Results include ˆ all conﬁgured voltage & current phases ˆ...
Page 68: Graphical Harmonics Display
Harmonic Results Harmonic Results includes all harmonics from the fundamental to the 50th harmonic for the speciﬁc phase voltage and current. Soft keys allow selection of phase and neutral. 4.4.1 Graphical Harmonics Select 1 HARMONICS from the Display Selection menu to view Graph- ical Harmonics.
Page 69: Waveform Display
Waveform Display Waveform Display indicates the waveforms of rms voltages and currents for the conﬁgured system. Also provides a magniﬁcation function for better viewing. Tabular values displayed at the bottom of the waveform display are instantaneous voltages and currents for conﬁgured system. Figure 4.6: Waveform Display To Display Waveform Results:...
Page 70: Magniﬁed Waveform Display
4.5.1 Magnify Waveforms Magnify Waveform Press the MAGNIFY ON/OFF soft key to view a magniﬁed display of the waveform. Use the right and left cursor keys to move the vertical line cursor for viewing instantaneous values. Soft keys allow you to separately view the voltage and current waveforms. Figure 4.7: Magniﬁed Waveform Display Press the Magnify ON/OFF soft key to switch back to viewing the...
Page 71: Show Ratio Display
4.6.1 Show Sequence Press the Show Sequence soft key to replace the Neutral reading with any sequence voltages or currents. 4.6.2 Show Ratio Press the Show Ratio soft key to display the ratios of Va to Vc, Va to Ia and Ia to Ib.
Page 72: Power Tabular Display
Power Tabulation Displays the Active, Reactive, Apparent and Q Results, as well as Power Factor, of power measurements for the conﬁgured system. Min–Max Results changes the soft keys to allow access to Normal, Minimum, Maximum and Average Results. Figure 4.11: Power Tabular Display Press the EXIT Min–Max soft key to exit the Min–Max RESULTS menu and return to the Power Tabulation main menu.
Page 73: Min-Max Control
Power Quality Displays two types of ﬂicker; Instantaneous (One Second) and PST (10 minute). One-second ﬂicker is displayed every second and PST continually indicates a 10 minute count-down timer with the result of the calculation in the same display. Press indicated soft key to switch between 1–Second and PST.
Page 74: Flicker Information
4.8.2 Flicker Information Flicker measurements deal with a ﬂuctuation of the line voltage. It is a very speciﬁc problem related to human perception and incandescent light bulbs, but not a general term for voltage variations. The basic concept behind placing limits on voltage ﬂuctuations is that they cause lights to ﬂicker, which can be irritating and may cause discomfort.
Page 75: Energy Tabular Display
Energy Tabulation Energy Tabulation makes all energy-related parameters accessible from one screen. This includes Watt-hours, VAR-hours, VA-hours, Q-hours and energy restart function (soft key on the far right). Figure 4.14: Energy Tabular Display To select Energy Tabulations: 1. Press the DISPLAY key and choose 6–Energy Tabulation. 2.
Page 76: Phasor Display
4.10 Phasor Display Displays the voltage and current phasors for the conﬁgured system measured by the 933A. Screen includes tabular and vector data, soft keys for viewing the voltage phasors, current phasors or both. Display also includes instrument data including time, date and battery charge level. For synchrophasors, using “Absolute”...
Page 77: Basic Data Display
4.11 Basic Data List Basic Data List summarizes many measured and calculated values on one screen, including all conﬁgured voltages, currents, power and energy- related data and totals. Reﬁnements include Energy Delivered, Basic plus Quality, Basic plus Sequence, Basic plus Phase and Min–Max Selection. To select basic data list items: 1.
Page 78: Conﬁg And Status Display
4.12 Conﬁg Status Press 9–CONFIG & STATUS to view conﬁgured electrical system, com- munication, time and date, calibration information, ﬁrmware versions by date. Also included is a battery and ﬂash status screen that breaks down each category in more detail: Battery Status, Main Flash, Log Flash, Event Flash and DSP Flash.
Page 79: Gps Status Display
4.12.1 Status with GPS Synchronization When selecting 9 Conﬁg & Status with GPS connected for clock synchronization, a soft-key named SHOW GPS STATUS will appear. Press the SHOW GPS STATUS soft key to view GPS status information. Press the SHOW GPS STATUS soft key to display geographical position and satellite tracking information.
Page 80: Main Review Screen
Chapter 5 Reviewing 933A Data Review event and data records stored in the Model 933A by pressing the REVIEW key and selecting the type of records you want to review. The main data-review screen is shown below. Figure 5.1: Main Review Screen Review Data Selections The following choices are available by pressing the appropriate soft key from the menu above:...
Page 81: Show Power Quality
5.1.1 Show Log Data SHOW LOG refers to the 1-second data that is logged during a LOG key press, an Auto Log function, or from a Trigger (User, Power Quality, or from the optional Auxiliary I/O Module). 5.1.2 Show User Event Records SHOW USER refers to the event record, including the exact time and date of the User programmed event.
Page 82: Locating Event Records
3. You can reduce or increase the rate at which you can search through records by pressing the REDUCE RATE or INCREASE RATE soft keys. 4. Press the numeric key that corresponds to the data record you wish to review. 5.
Page 83: Review Display Selection
show up in the list. The “T” symbol on the right side of the individual record indicates that the data record is from a trigger. Figure 5.2: Notice that 11 records show up in the list. “A” indicates Autologs, “K” indicates Key Logs and “T”...
Page 84: Phasor Record Review
Figure 5.4: Phasor Record Review; compare the time and date with Figure 5.2 record 0. 5.2.4 Review Selections Soft Key Press the REVIEW SELECTIONS soft key to select the type of logged data you wish to view – Event Logs, Key Logs or Auto Logs. ˆ...
Page 85: Review All Logged Records
Reviewing User Event Records In general, records are stored chronologically with the latest record at the top of the list. When viewing event records held in ﬂash memory, the instrument is placed in Hold Mode, and you may access all recorded event data from the keypad.
Page 86: Searching For Records
5.3.2 Searching for Records Use the soft keys and the right/left cursor keys to page and scroll through the records list. This is very useful when there are hundreds or thousands of records. Note that once moving, the search has inertia after lifting your ﬁnger oﬀ...
Page 87: Reviewing Records
5.3.3 Viewing Waveform Data at Time of Event When viewing event records, the 933A can immediately reveal the high- speed waveform data recorded at the time of the event. Press REVIEW > SHOW USER > Event# (press the enter or number key corresponding to event record) to reveal the waveform record.
Page 88: Reviewing Power Quality Event Data
Reviewing Power Quality Event Data The 933A treats Power Quality event records in much the same way as User event records, only it follows the rules of IEC 61000-4-30, paragraph 5.4, for Voltage Dips and Swells. When you select a speciﬁc event record (using either the ENTER or numeric keys) it will reveal the waveform at the time of the event.
Page 89: Selecting Events To Download
Reviewing Data using PSCSV To review 933A data using PSCSV software, you must ﬁrst make a connection to the 933A. For information on making a connection between the 933A and PSCSV-933, go to Section 6.2.4 in PSCSV Basics. To review data recorded in ﬂash triggered by an event, click the Download Event button and a small window (see Figure 5.9) should appear with the following data types: ˆ...
Page 90: Downloading User Records With Progress
5.5.1 User Event Record Example Outlined below, is an example of downloading User Event records. Select USB for downloading waveform data, otherwise the download time could be very lengthy. Figure 5.11: Downloading User Records with Progress Downloading Procedure Make sure that you are connected to the 933A. If not connected using PSCSV, see Section 6.2.4.
Page 91: Downloading Per-Second Data
6. Click Save, or choose another ﬁlename and click Save, and a list of event records should appear as seen in Figure 5.12. Figure 5.12: Viewing Triggered Event Records notice the trigger number and Trigger activity. 5.5.2 Per Second Data Per–Second Data are the actual data recorded during an event.
Page 92: Downloaded Per-Second Data In Spreadsheet
Figure 5.14: Downloaded Per–Second Data in Spreadsheet Notice that the spreadsheet of data types are organized by the tabs at the bottom of the window and ﬁlls to the right. See Figure 5.14. The data window above contains normal one-second data including volt- ages, power, frequency and ﬂicker.
Page 93: Downloaded Power-Quality Event Data
Figure 5.15: Downloaded Power-Quality Event Data Figure 5.16: Downloaded Power-Quality Data 5.5.4 Waveform Data Recorded waveform data may be the result of User or Power Quality triggered events. Make sure that you are connected to the 933A. If not, see Section 6.2.4 in PSCSV Basics. Click the Download Event button or select Connection >...
Page 94: Downloaded Waveform Data
Figure 5.17: Downloaded Waveform Data PSCSV933 provides trigger information the bottom of the waveform display, whether the trigger is active or inactive during the waveform recording. For example, if the triggering condition is false the display will indicate, ”No triggers active”. If a speciﬁc trigger is active, then it will indicate a message with the trigger number;...
Page 95: Pscsv Basics
Chapter 6 PSCSV Basics Introduction Power Sentinel CSV 933, or PSCSV, is the application software designed to operate with the Model 933A. This chapter was written to help you become familiar with how to use PSCSV to conﬁgure the 933A operation and manage data collected with the Model 933A.
Page 96: Main Pscsv Screen
Windows, Menus and Toolbars The PSCSV main screen (shown in Figure 6.1) provides access to its many features by assembling them together according to functional groups called Menus, Toolbars, Function Buttons and Windows. TIP: When you ﬁrst start PSCSV, only a few icons in the program will be available, but PSCSV will NOT be linked (having an open serial connection) to a speciﬁc Model 933A.
Page 97: Edit Menu, Preferences
6.2.2 Menu Deﬁnitions Most of the Menu selections are duplicated by the Toolbar buttons. File Menu The File menu > Open command allows you to open a 933A data ﬁle already saved on your computer. Use the Connection menu to open a connection between the 933A and a computer.
Page 98 View Menu Use the View menu to control the appearance of data streaming from the Model 933A. Items that can be controlled are described below. ˆ Time Format: format accompanying data in either GPS Local, UTC or PC Local time. ˆ...
Page 99: Toolbar And Button Deﬁnitions
6.2.3 Toolbar and Button Deﬁnitions Main Toolbar Open: opens a speciﬁc 933A ﬁle (saved to a computer running PSCSV) has browse features Export CSV: exports selected 933A ﬁle records to .CSV for use in spreadsheet programs. Select either current data, or from data ﬁles. Create a Snapshot: saves a sample of data being broadcast from the 933A, to a separate ﬁle for viewing.
Page 100 Pause: pauses the ﬂow of data from the 933A into the PSCSV data window. Broadcast data accumulates while paused. Basic Data: initiates the ﬂow of basic data into the main window. Energy Data: initiates the ﬂow of energy data into the main window. Harmonic Data: initiates the ﬂow of harmonic data into the main window.
Page 101 Decrease Vertical Scale: decreases vertical scale resolution when viewing phasor data from frequency plot tab. Records Toolbar Use the records toolbar to page through the data, especially when there are a large number of records. Conﬁgure Toolbar Conﬁgure toolbar buttons allow you to conﬁgure ports, conﬁgure measure- ment parameters and conﬁgure trigger parameters.
Page 102: Connection Window
6.2.4 Connecting with the 933A Two communication ports are available for remotely conﬁguring the 933A, or for downloading the data to a computer. To link the 933A to a computer, you will need to: (1) connect the correct cable between the 933A and the computer, and (2) open a connection from the Connection window.
Page 103: Conﬁguring The 933A
6. At this point, you have access to the instrument for conﬁguring or downloading data. Go to the appropriate sections to perform these actions (e.g. see Section 6.3). USB Port 1. Make sure that the 933 FTDI USB driver is installed on your pc. See Section 2.3.9 for further information on communicating via USB.
Page 104: Conﬁgure Rs–232 Ports
change the baud rate, the 933A will not respond. You will have to close the connection and reconnect at the new baud rate. The available settings are Baud Rate, Data Bits, Stop Bits and Parity. Figure 6.4: Conﬁgure RS–232 Port PMU-1 When dealing with phasor data, PSCSV is both a conﬁguration and data acquisition tool.
Page 105: Conﬁgure Phasors, Pmu-1
Figure 6.5: Conﬁgure Phasors, PMU–1 Positive Sequence, Negative Sequence, Zero Sequence components and Digital DSP Triggers. Turn them ON or OFF. Analog allows you to select all of the power-related parameters (Watts, VARs, and VA) that you wish to activate. Window Length sets the integer number of measurements averaged for stability;...
Page 106: Conﬁguring Measurement Parameters
Rate (R) times the number of cycles (or Window Length, W). Cycles Used = R W. For example in the screen shot from Figure 6.5, this value is 20 10 = 200. Maximum values for Cycles Used are 1440 for 60 Hz and 1200 for 50 Hz.
Page 107: Conﬁgure Measurement Parameters, Dsp Mode
Figure 6.6: Conﬁgure Measurement Parameters, DSP Mode Loss Compensation Loss Compensation allows you to compensate for the iron and copper losses (real and imaginary) when connecting through a transformer. Compensate for transformer loss only through PSCSV, not through 933A front panel. Anticreep Anticreep sets a threshold below which the 1133A will not accumulate energy in the speciﬁc registers.
Page 108: Data Filter Tool
overwriting previously stored data. At the bottom of the Save As window is a check box with an associated size in megabytes. Filter Data Tool Select View > Filter Data to conﬁgure the types of data that will appear in any of the Broadcast Data screens.
Page 109: Broadcast Data
Broadcast Data 6.3.1 Basic Data Basic Data includes all of the conﬁgured input signals (voltages and currents - magnitude and phase), sequence components, frequency and frequency-related quantities, power-related quantities, and ﬂicker. These values are computed as one-second data and a fresh measurement appears on the screen each second.
Page 110: Energy Data
6.3.2 Energy Data Energy Data includes all energy-related qualities, including Watt-hours, Volt-Amp-hours, VAR-hours and Q-hours These values are computed as one-second data and a fresh measurement appears on the screen each second. To limit the number of items on the screen, use the Filter Data tool, which allows you to select only the items of interest.
Page 111: Harmonic Data
6.3.3 Harmonic Data Harmonic Data includes all harmonic voltages and currents, magnitude and phase, from the fundamental to the ﬁftieth harmonic; that is 200 values for each phase. These values are computed as one-second data and a fresh measurement appears on the screen each second. To limit the number of items on the screen, use the Filter Data tool, which allows you to select only the items of interest.
Page 112: Harmonic Summary Data
6.3.4 Harmonic Summary Data Harmonic Summary Data includes RMS THD, RMS K, THD F, THD T and K Factor for all of the conﬁgured voltages and currents. All harmonic summary values are delivered to the open window. Summary Data Screen Summary view presents a graph in real time over a one-minute interval with the beginning and ending measurements and overall minimums and maximums.
Page 113: Waveform Data
6.3.5 Waveform Data Waveform Data includes a number of cycles of all conﬁgured phase voltages and currents. Control the number of complete cycles using the View > Time Interval window control and choose a time interval value (from 50 ms to 5 seconds). A cursor allows you to pick out instantaneous voltages or currents.
Page 114: Phasor Data
6.3.6 Phasor Data Phasor Data includes all conﬁgured phase voltages and currents, frequency and sequence values. Data log times are also indicated in the display. To control the number of items on the screen, use the Input toolbar, which allows you to select the voltage(s) or current(s) of interest. Note that ﬁltering does not limit what is being stored in the data ﬁle;...
Page 115: Lists Of Broadcast Values
6.3.7 Lists of Broadcast Values Data values available when selecting Basic Data from the Broadcast Toolbar are listed below. Basic Data 55 Values 1. A, B and C phase voltages and currents magnitude and phase angle 2. Positive, Negative and Zero Sequence Voltages and Currents magnitude and phase angle.
Page 116: Data Conversions
Data Conversions 6.4.1 Exporting COMTRADE Files These instructions cover exporting COMTRADE ﬁles generated from waveform data captured by the Model 933A. During the exportation process, two COMTRADE ﬁles, a .dat and a .cfg ﬁle, are generated from waveform ﬁle and saved on the host pc. Running PSCSV 933 Software, the opened waveform data is converted directly into these two ﬁles.
Page 117: Downloaded One-Second Data
6.4.2 Exporting to CSV Format While you are reviewing any data downloaded from the 933A, you may choose to convert it to CSV format and review it on your spreadsheet. In the session below, Per Second data is viewed after being downloaded. Notice that there should be a CSV button, also accessible by selecting File >...
Page 118: Downloaded One-Second Data
6.4.3 Exporting to PQDIF Format While you are reviewing any data downloaded from the 933A, you may choose to convert it to PQDIF format. In the session below, Figure 6.10 illustrates Per Second data being viewed after being downloaded. Export the selected data by selecting File > Export PQDIF.
Page 119: Triggers And Event Recording
Chapter 7 Triggers and Event Recording Introduction Triggering is very useful for testing and troubleshooting electrical power systems. During the occurrence of an electrical event, the 933A can begin recording essential data for analysis. In this section we will look at how the Model 933A uses triggers to record data, and how to conﬁgure these triggers from both the 933A front panel and from PSCSV.
Page 120: Setup
7.1.2 User Triggers User triggers are general purpose in nature (compared to power quality triggers) and allow more ﬂexibility. When active, a trigger signals the Model 933A to record data based on measured parameters, which are then processed by the Model 933A DSP. There are a total of 32 diﬀerent triggers available that you can assign as either a User or Power Quality trigger.
Page 121: Selecting A User Trigger Mode
the ENTER key to open a screen entitled EDIT User TRIGGER (by number). Figure 7.2: Selecting a User Trigger Mode 3. Choose the triggering parameters in this screen. Use a combination of the cursor keys, enter and numeric keys to enter the data. Normally, you will not need to press the Enter key each time you select a new ﬁeld –...
Page 122: Logging Time
7.2.2 Logging Time 4. Press the LOGGING TIME soft key to deﬁne the time period to log data when a trigger becomes active. There are two values to set: MaxLogTime and PostFault (time). MaxLogTime deﬁnes the number of seconds to record data during which the speciﬁc trigger is active (i.e.
Page 123: Save Settings Soft Key
7.2.4 SAVE SETTINGS Soft Key 7. Press the SAVE SETTINGS soft key to store any trigger changes. You may do this after setting up a number of triggers. Without pressing the Save Settings key, you will lose any conﬁguration settings that you just made.
Page 124: Setting A Power Quality Trigger
Reference: Sets a numerical value (ﬂoating point) used with the Limit Type x ref > limit for the value of ‘ref’. Can be used in a window comparison. For example, use x ref to determine the frequency deviation, δf . δf = x ref = 59.995 60 = 0.005Hz.
Page 125: Power Quality Trigger Selection
7.3.1 Setting Up a New Trigger 1. From any screen, press the SETUP key, then select 7- Trigger Setup from the number keypad. You should see a screen similar to that in Figure 7.6, depending on whether the trigger is already conﬁgured, or OFF.
Page 126: Power Quality Trigger Parameter Deﬁnitions
Edit PQ Trigger (#) Category Screen Choose a value for each category where applicable. Generally, you can select each category using the up/down cursor keys and select a value in that category using the left/right cursor keys. Numerical values (e.g. Limit) are entered directly from the numeric keypad.
Page 127: Example Of Hysteresis
another trigger. Dwell (half cycles): Dwell, an integer, refers to the time in half cycles (at the nominal frequency) for the triggering condition to be true before which the trigger will become active. Hysteresis Hysteresis allows the user to set up some triggering conditions to reduce the tendency of a wavering signal (e.g.
Page 128: Power Quality Reference Selection Softkey
Figure 7.9: Power Quality Reference Selection Softkey Figure 7.10: Conﬁguring the Power Quality Reference...
Page 129 Sliding Reference Set the Reference Format to Sliding when you want to follow daily variations in voltage or current that do not require a trigger unless it exceeds the expected rate of change. For example, if due to usage requirements the line voltage sags during the day and swells during the night, you might want to use a sliding reference to avoid unnecessary triggers.
Page 130: Event Waveform Capture
Remember that if you have several triggers armed, any of them may be responsible for the 933A logging data if they become active. Event Waveform Capture 7.4.1 Capture Method and Features The Model 933A samples each of the six measurement channels at 10,240 samples per second at 16 bit resolution, and begins sampling when triggered from a speciﬁed event.
Page 131: How Much Data Do I Record
7.4.3 How Much Data do I Record? It takes about 18 minutes to ﬁll up 128 MB of waveform ﬂash with the six input channels - three voltages and three currents. Decide how much waveform data you really need to record following an event. A few seconds of data is should be ample for each record, however the 128 MB allows for additional event recordings, providing the postfault data is kept short.
Page 132 Note: The 933A records complete sets of one-second data around the occurrence of the event, depending on the set Logging Times. The 933A stores the main data records in the standard ﬂash module, and stores high- speed waveform in another 128 MB ﬂash module used exclusively for that purpose.
Page 133: Auxiliary I/O Module
Auxiliary I/O Module Triggering with the Auxiliary I/O Module is very straightforward and is easy to set up. See Page 11 for accessory information. 7.5.1 Auxiliary I/O Module Description The Auxiliary I/O Module has three contact outputs and four event inputs. One of the output contacts is a solid state set (KYZ-rated) and the other two are standard Form C mechanical contacts.
Page 134: Event Input Setup, Active
Figure 7.14: Event Input Setup, Active Mode: conﬁgures which input state triggers the 933A to begin recording; for voltage inputs: Active Hi or Active Lo; for contact inputs: Active Close or Active Open. MaxLogTime: time the 933A will log data while the triggering conditions are active (i.e.
Page 135: Event Input Setup, Inactive
Figure 7.15: Event Input Setup, Inactive 7.5.3 Conﬁguring Relays The Auxiliary I/O Module has three relays; one solid state (KYZ) and two mechanical, Form C contacts. Relays 2 and 3 are useful for signaling by change of state from any one of 32 triggers. Figure 7.16: Relay Setup Relay 1, KYZ-Rated Contacts Relay 1 is a set of solid state contacts useful for keeping track of energy...
Page 136 Scale factors are expressed in basic units (e.g. Watt Hours per Pulse) and should be set up not to exceed 20 pulses per second, the limit of the 933A. To arrive at the minimum scale factor value so not to exceed this threshold, take the maximum value of the basic unit being measured and divide by 72,000.
Page 137: General Relay Setup Procedure
7.5.4 General Relay Setup Procedure 1. Set up the Trigger (either User or Power Quality ) on the 933A or by using PSCSV software. 2. Set up the desired relay by specifying the trigger in step 1, as seen in the RELAY SETUP screen in Figure 7.16. Figure 7.17: Relay- Trigger Reference Conﬁguring Triggers with PSCSV...
Page 138: User Triggers
7.6.1 User Triggers 1. Select “Users Triggers” in the left panel of the Conﬁgure Trigger Parameters window. 2. Select an unused trigger (by number) by choosing the drop-down arrow under the column named “Input Signal” and adjacent to the desired trigger. 3.
Page 139: Power Quality Trigger Detail
7.6.2 Power Quality Triggers 1. Click the Power Quality Triggers label in the left panel of the Conﬁgure Triggers window. 2. Select an unused trigger (by number) by choosing the drop-down arrow under the column named “Input Signal” and adjacent to the desired trigger.
Page 140: Speciﬁcations
Chapter 8 Speciﬁcations Introduction While the Model 933A directly measures voltages, currents and frequency, all other values such as power and energy are derived from these measurements and the internal clock. Flexible input connectors and instrument conﬁguration allow you to connect to most common electrical systems.
Page 141: Instrument Interface
Input Current Range (3P/1P) 1 – 20 Arms, maximum - per element Low range 1 mA – 1 A Overrange 23.5 Arms, nominal (maximum continuous input current: 20 Arms per element). Volt-Amps, Watts, Volt-Amps-Reactance Range Product of rated voltage and current ranges and number of elements.
Page 142 Communications Serial RS-232C, RJ11 modular connector Version 1.1, B-Type receptacle Protocols Proprietary PowerSentinelCSV (PSCSV) Supported CSV, COMTRADE, PQDIF Flash Memory Data Storage Capacity 128 MB x 2, standard; 2 separate ﬂash cards One used for 1-second data One used for waveform Data Selectable from all functions measured and total- ized by 933A;...
Page 143: Optional Auxiliary I/O Module
System Time, Phase and Frequency System Time Unlimited accumulation with 1µs resolution Frequency 7 digits, xx.xxxxx Hz System Phase 0 to 360 with 0.01 resolution Synchronization Optional IRIG-B Unmodulated Input TTL-Level Shift per IEEE 1344 as output from any Arbiter Systems clock model.
Page 144: Measurement Speciﬁcations
Optional Remote GPS Tracking GPS-L1 (1575.42 MHz) 12 channel (tracks up to 12 satellites) Acquisition 2 minutes typical Accuracy UTC-USNO 1 µs (only 1 satellite with correct position needed) Out-of-Lock Via system interface and status display; Indication optional, via contact closure. Timebase Error GPS locked Less than...
Page 145: General
Accuracy, continued Phase Angle, φ 0.01 , phase-to-phase or voltage-to-current Under range 0.05 (current 10 to 50 mA rms) VA, VAh 0.05% of reading 0.1% (current 10 to 50 mA rms) VAR, VARh Same as W, Wh except replace PF with Power Factor 0.0002 sin(φ)
Page 146: Power Requirements
Power Requirements Internal Battery Type NiMH Operation 8 hours, typical Charging 4 hours Standby Use 5 VA, typical External Power Range 85 to 264 Vac, 47 to 63 Hz or 120 to 275 Vdc, 25 VA typical 5 VA typical stand by use Input IEC connector with fuse;...
Page 147: Functional Description
Information in this section describes some of the components, functions and capabilities of the Model 933A. Overview The Arbiter Systems Model 933A Portable Power Sentinel consists of several blocks. They are: voltage and current inputs, and analog-to-digital converter; digital signal processor; host processor; display and keyboard;...
Page 148: Clock Synchronization
Arbiter 1084A/B/C or 1093A/B/C or an optional twelve-channel global positioning system (GPS) receiver. Proprietary technology developed by Arbiter Systems and reﬁned in several generations of GPS timing products also help to achieve accuracy. By comparing the internal 10-MHz crystal oscillator to the 1 PPS from an IRIG input or the output of a GPS receiver, the 933A can maintain its frequency at any time within a few parts in 10 and time within one microsecond.
Page 149: Error Analysis
Error Analysis All identiﬁed sources of error in the 933A have been quantiﬁed using worst- case manufacturers’ performance data. These have then been combined using a root-sum-of-squares (RSS) method to yield a performance estimate. Eﬀects due to initial calibration, measurement noise, temperature, and aging are all included.
Page 150: Signal Sampling
Signal Sampling Each of the signals, representing the scaled voltage and current inputs have their own ADC. Each signal is sampled simultaneously at a rate of 10,240 samples per second. If connected to an external timing source (e.g. GPS) it provides the sample clock to the 933A, it is synchronized to UTC-USNO (GPS), allowing measurements of phase angle across a power grid to be compared directly.
Page 151: Voltage And Current
accurate. The averaged data are provided primarily as a convenience or for system control purposes; it is not intended for billing purposes. Voltage and Current Voltage and current are measured in a similar fashion to power, using overlapping 1024-point measurements. In this case, however, the cross product is replaced with the square of the voltage or current samples.
Page 152: Transformer Compensation
9.11 Transformer Compensation There are two diﬀerent types of transformer compensation. They are used to correct for the losses in a transformer when primary-side metering is used to meter the energy delivered to a customer at the secondary of the transformer.
Page 153: Phase And Frequency
9.13 Phase and Frequency As a part of its measurement process, the 933A performs a fast Fourier transform (FFT) of the windowed voltage and current samples. accordance with IEC 61000-4-7, this process is performed twenty times per second, using overlapping 1024-sample Hanning window data. This yields new FFT results twenty times per second for each voltage and current input, for a total of 120 FFT’s per second.
Page 154: Harmonics
absolute phase. This is because the subtraction is actually one of time; the purpose being to ’realign’ the reference point to correspond to zero degrees on the fundamental. The phase angle corresponding to this time shift is proportional to the frequency. 9.14 Harmonics Harmonics are measured using overlapping Hanning window FFT’s of 1024...
Page 155: Flicker
taking the arctangent of the real and imaginary components of the bin closest to each harmonic. This information cannot be used, however, in the averaging process described in IEC 61000-4-7, because this speciﬁcation requires the rms average of a series of measurements. This, by deﬁnition, requires magnitude data only.
Page 156: Voltage Fluctuations
9.17 Voltage Fluctuations Voltage ﬂuctuations are monitored by classifying the 20/second voltage data, per phase, with a 256-step linear classiﬁer covering a range of of nominal voltage. These data are then summarized as a cumulative probability table over a speciﬁed interval typically 15 minutes.
Page 157: Load Balance
voltage input. Normally, if the unit is connected properly, the positive- sequence voltage will be equal to the line voltage and the negative- and zero-sequence voltages will be approximately zero. In the event that a user-speciﬁed limit on the imbalance (See “Triggering,” later in this section) is exceeded, an event will be recognized.
Page 158: Optional Contacts & Event Inputs
any of the following: ˆ Time of event ˆ Type of event ˆ State of measured quantities ˆ Pre and post-event data ˆ Any of the measured quantities - e.g. voltage, power, waveform, etc. The 933A must be conﬁgured in advance to specify the events being recognized and actions to be taken.
Page 159: Serial Channels
9.24 Serial Channels The two standard serial channels are RS-232 and USB. Each channel has access to most functions of the 933A (excluding autolog and programming Auxiliary I/O module). The RS-232 channel has a RJ11 (6-position) modular connector useful for connecting with a standard phone cable. Use a RJ11 to DB-9F adapter at the end of the phone cable to connect the 933A to a computer.
Page 160: Detecting Oscillatory Transients And Other Anomalies
is a 16-bit unsigned integer, having a range of 0 to 65535 cycles. Since comparisons are performed 20 times per second, this corresponds to a range of dwell time of 0 to 3276.75 seconds. A value of 0 allows the trigger to be recognized at any time the corresponding condition is true;...
Page 161 Table 9.2: Signal Functions Available for Triggering Function Rate Channels Available Oﬀ 20/sec Voltage 20/sec A,B,C, Ave. Current 20/sec A,B,C, Ave. Active Power (Watts) 20/sec A,B,C, Total Relative Power (VARs) 20/sec A,B,C, Total Apparent Power 20/sec A,B,C, Total Power Factor (PF) 20/sec A,B,C, Total Sequence Voltage...
Page 162 Table 9.3: Trigger Channel Parameter Summary (32 Channel) Function Range or Options Input Signal 1-31, per Table A.2 above (set to 0 if not used) Channel 0-3, per right column in table above Trigger Dependency 0-2, Oﬀ, Active, Inactive Master Channel 0-31, any other trigger channel Limit Type 0-3;...
Page 163: Connection Diagrams
Chapter 10 Connection Diagrams...
Page 164: 1P2W1E Direct Connection
10.1 1P2W1E – Direct Connection Figure 10.1: 1–Phase, 2–Wire, 1–Element Direct Connection...
Page 165: 1P2W1.5E Direct Connection
10.2 1P2W1.5E – Direct Connection Figure 10.2: 1–Phase, 2–Wire, 1–1/2-Element Direct Connection...
Page 166: 1P3W2E Direct Connection
10.3 1P3W2E – Direct Connection Figure 10.3: 1–Phase, 3–Wire, 2–Element Direct Connection...
Page 167: 3P3W2E Delta Direct Connection
10.4 3P3W2E Delta – Direct Connection Figure 10.4: 3–Phase, 3–Wire, 2–Element, Delta Direct Connection...
Page 168: P4W2.5E – Direct Connection
10.5 3P4W2.5E – Direct Connection Figure 10.5: 3–Phase, 4–Wire, 2.5-Element Direct Connection...
Page 169: 3P4W3E Direct Connection
10.6 3P4W3E – Direct Connection Figure 10.6: 3–Phase, 4–Wire, 3–Element Connection...
Page 170: P2W1E – Using Ct/Pt
10.7 1P2W1E – Using CT/PT Figure 10.7: 1–Phase, 2–Wire, 1–Element, Using CT/PT Connection...
Page 171: P2W1.5E – Using Ct/Pt
10.8 1P2W1.5E – Using CT/PT Figure 10.8: 1–Phase, 2–Wire, 1 1/2–Element, Using CT/PT Connection...
Page 172: P3W2E – Using Ct/Pt
10.9 1P3W2E – Using CT/PT Figure 10.9: 1–Phase, 3–Wire, 2–Element, Using CT/PT Connection...
Page 173: P3W2E – Using Ct/Pt
10.10 3P3W2E – Using CT/PT Figure 10.10: 3–Phase, 3–Wire, 2–Element Delta, Using CT/PT Connection...
Page 174: P4W2.5E – Using Ct/Pt
10.11 3P4W2.5E – Using CT/PT Figure 10.11: 3–Phase, 4–Wire, 2 1/2–Element, Using CT/PT Connection...
Page 175: P4W3E – Using Ct/Pt
10.12 3P4W3E – Using CT/PT Figure 10.12: 3–Phase, 4–Wire, 3–Element, Using CT/PT Connection...
Page 176: A Glossary
Appendix A Glossary DHCP Dynamic Host Conﬁguration Protocol (DHCP) is a communications protocol that lets network administrators manage centrally and automate the assignment of Internet Protocol (IP) addresses in an organization’s network. Using the Internet Protocol, each machine that can connect to the Internet needs a unique IP address.
Page 177: A.4 Ethernet
Digital Signal Processing: DSP refers the hardware (DSP microcontroller and associated components) and ﬁrmware (the programming code running the microcontroller) that process the input signals and calculate the required output data. Ethernet Ethernet is the most widely-installed local area network (LAN) technology. Speciﬁed in a standard, IEEE 802.3, Ethernet was originally developed by Xerox and then developed further by Xerox, DEC, and Intel.
Page 178: A.7 K Factor
K Factor K–Factor is a weighting of the harmonic load currents according to their eﬀects on transformer heating, as derived from ANSI/IEEE C57.110. A K–Factor of 1.0 indicates a linear load (no harmonics). The higher the K–Factor, the greater the harmonic heating eﬀects. It is calculated based on the following equation: + (V (A.1)
Page 179: A.10 Linking
A.10 Linking Establishing communications between the Model 933A and a computer device. Normally, this is done using PSCSV software. A.11 RMS K RMS K is the rms sum of all of the harmonic energy, including the fundamental (i.e. 1 50), with each harmonic multiplied by the square of the harmonic number.
Page 180 A.14 THD F THD F is the Total Harmonic Distortion compared to the fundamental and expressed as a percentage. THD F is calculated from thee following equation. (A.4) T HD(F ) = 100% where V is fundamental voltage, and V is the highest measured har- monic.
Page 181: B Uploading New Firmware
Obtaining the Latest Firmware Download the latest ﬁrmware version and 933uploader vXXXX.exe pro- gram from the Arbiter Systems web site. The web address is listed below. http://www.arbiter.com/pscsv/933index.php The ﬁrmware will be in zipped format and does not need to be unzipped to use.
Page 182: B.2 Uploading Procedure
Uploading Procedure 1. Connect the cable(s) and adapters between the computer and the 933A RS-232 port. 2. Start the uploader software, 933Uploader.exe. It should appear as shown in Figure B.1. 3. Check the communication settings on the Model 933A. Press the DISPLAY key, then 9-Conﬁg &...
Page 183: B.2 File Information For Newly Extracted Firmware
7. Click the Open button or select File > Open. Browse to locate the zipped ﬁrmware that you downloaded, select the ﬁle and click Open. The uploader should automatically extract the zipped ﬁle ready for upload to the 933A. The uploader window should appear as in Figure B.2 and provide the ﬁrmware information.
Page 184 10. The 933A should be ready to use, and not need to have power cycled. If you should have any questions about uploading new ﬁrmware to the Model 933A, contact the Arbiter Systems technical support at the information listed on page ii.
Page 185: C Ce Mark Certiﬁcation
Appendix C CE Mark Certiﬁcation Introduction The following page contains the individual CE Mark Certiﬁcations for the model covered in this manual. This includes Model 933A.
Page 186 March 27, 2008 Directives: 89/336/EEC Electromagnetic Compatibility 73/23/ EEC Low Voltage Safety Model Number(s): 933A Portable Power Sentinel Manufacturer: Arbiter Systems, Inc. 1324 Vendels Circle, Suite 121 Paso Robles, CA 93446 Harmonized EN55011 Class A, Radiated and Conducted Emissions Standard...
Page 187 Index 933A Accessories CE mark, 175 400 Amp direct CT, 8 CE mark certiﬁcations, 175 811AT current lead set, 7 clock 811CT current lead set, 7 free running, 30, 38, 39 813AT voltage lead set, 5 sync with gps, 38 813BT voltage lead set, 5 sync with IRIG-B, 38 816AT current lead set, 6...
Page 188 communication, 22 DNS, 165 current, 20 downloading data gps, 21 broadcast data types, 95 ground, 19 Basic Data, 95 IEC-320, 23 Energy Data, 96 Harmonic Data, 97 IRIG-B, 22 list, 19 Harmonic Summary, 98 RS=232C, 23 Phasor Data, 100 time sync, 21 Waveform, 99 USB, 22 using Hyperterminal, 33...
Page 189 power and energy, 138 Kp register scale factor, 121, 167 PT and CT compensation, 139 Aux I/O Module, 119 serial channels, 147 contacts, 121 signal sampling, 138 pulse metering, 167 system time deviation, 144 transformer linking, 168 compensation, 140 933A and PC, 81 triggering, 147 load balance, description, 145 voltage and current, 139...
Page 190 conﬁg and status, 62 phasor data, 86, 90, 100 energy, 59 phasor measurement, description, 144 harmonics, 52 power calculation, 138 min–max readings, 50 power input connector, 17, 23 phasors, 60 Power Quality, see measurement power quality, 106, 110 power, 56 power quality, 57 Powering the 933A voltage and current, 54...
Page 191 environmental, 132 records, 87 event inputs, 130 transformer compensation, 140 ﬂash memory, 129 triggering, description, 147 front panel, 128 Triggers input conﬁgurations, 127 deﬁnitions, power quality, 112 deﬁnitions, user, 109 input connector ratings, 128 input current, 128 dependency, 109 input frequency range, 128 erasing, 118 example, waveform, 117 input voltage, 127...
