6.4.3

Exporting to PQDIF Format

While you are reviewing any data downloaded from the 933A, you may
choose to convert it to PQDIF format.

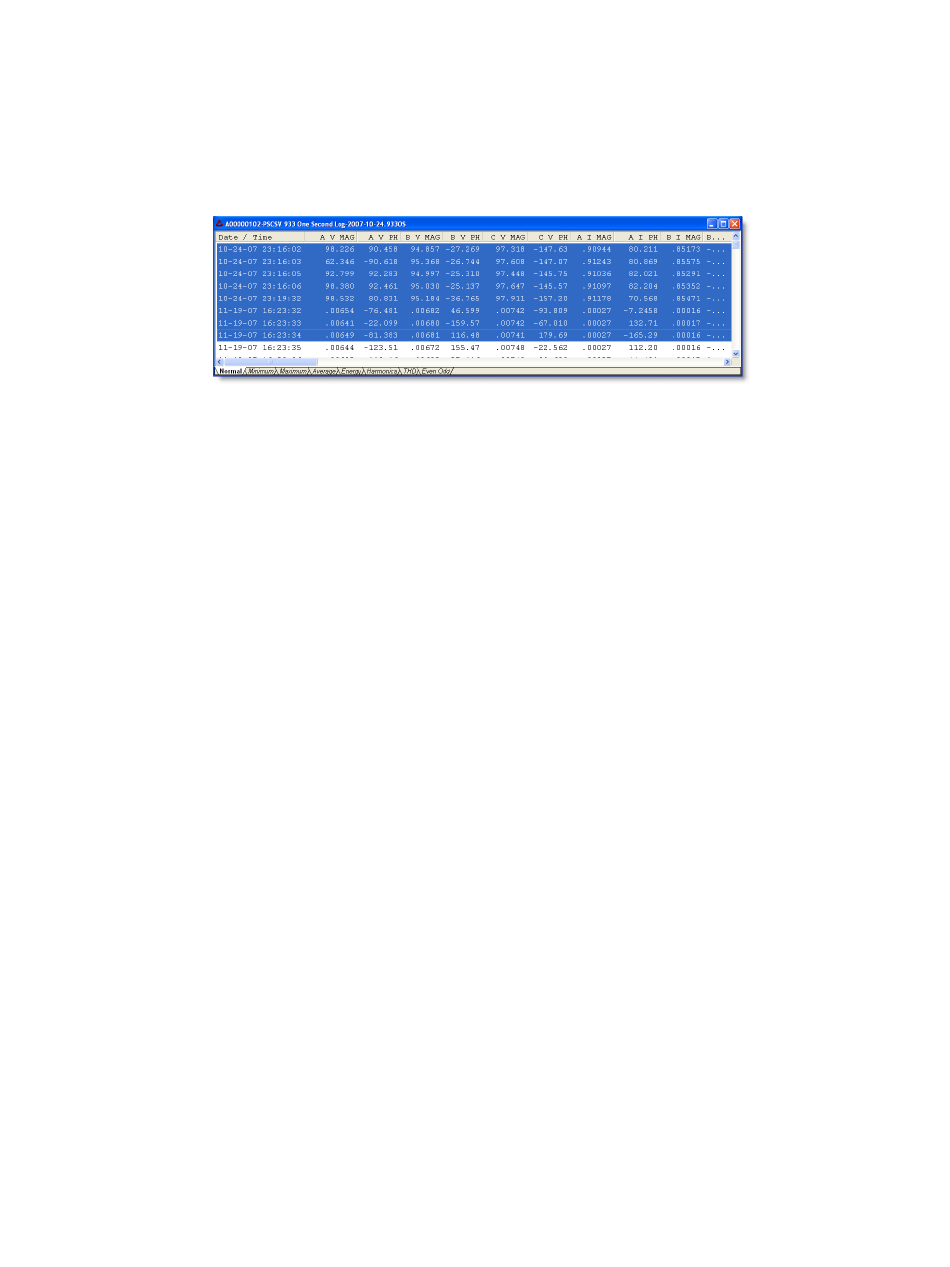

In the session below, Figure 6.10 illustrates Per Second data being viewed
after being downloaded. Export the selected data by selecting File >
Export PQDIF.
A Save As window should appear with a suggested file name. Either click
the OK button or type in a new file name and click OK.
Figure 6.10: Downloaded One–Second Data
Note that the "Export PQDIF" feature works on any broadcast data
(except waveform or phasor) that has been downloaded or was broadcast
from the 933A. Any data that was broadcast after you saved the converted
data will not appear in the file. If you want to include any later data in
the same file, simply go through the export CSV procedure again.
6.4.4 Save As Snapshot
Save As Snapshot creates a separate data file of all of the data recorded
during a normal broadcast session up to the time that you create the
snapshot file. Broadcast data will continue to fill the original broadcast
data file. If you decide to create a later snapshot, the file will have all of
the original data but with added data records determined by the interval
number of seconds between the two snapshots created.
