B.2 Uploading Procedure
1. Connect the cable(s) and adapters between the computer and the
933A RS-232 port.
2. Start the uploader software, 933Uploader.exe. It should appear as
shown in Figure B.1.
3. Check the communication settings on the Model 933A. Press the
DISPLAY key, then 9-Config & Status. Under the heading COM-
MUNICATION, make sure you verify the baud rate.
4. On the 933A Flash Update Application (933uploader.exe), select
Settings > Serial Port and select the correct port.
5. Select Settings > Upload Mode > RS-232 Serial Port.
6. Select Settings > Baud Rate > (select the same baud rate as the
933A discovered in step 3).

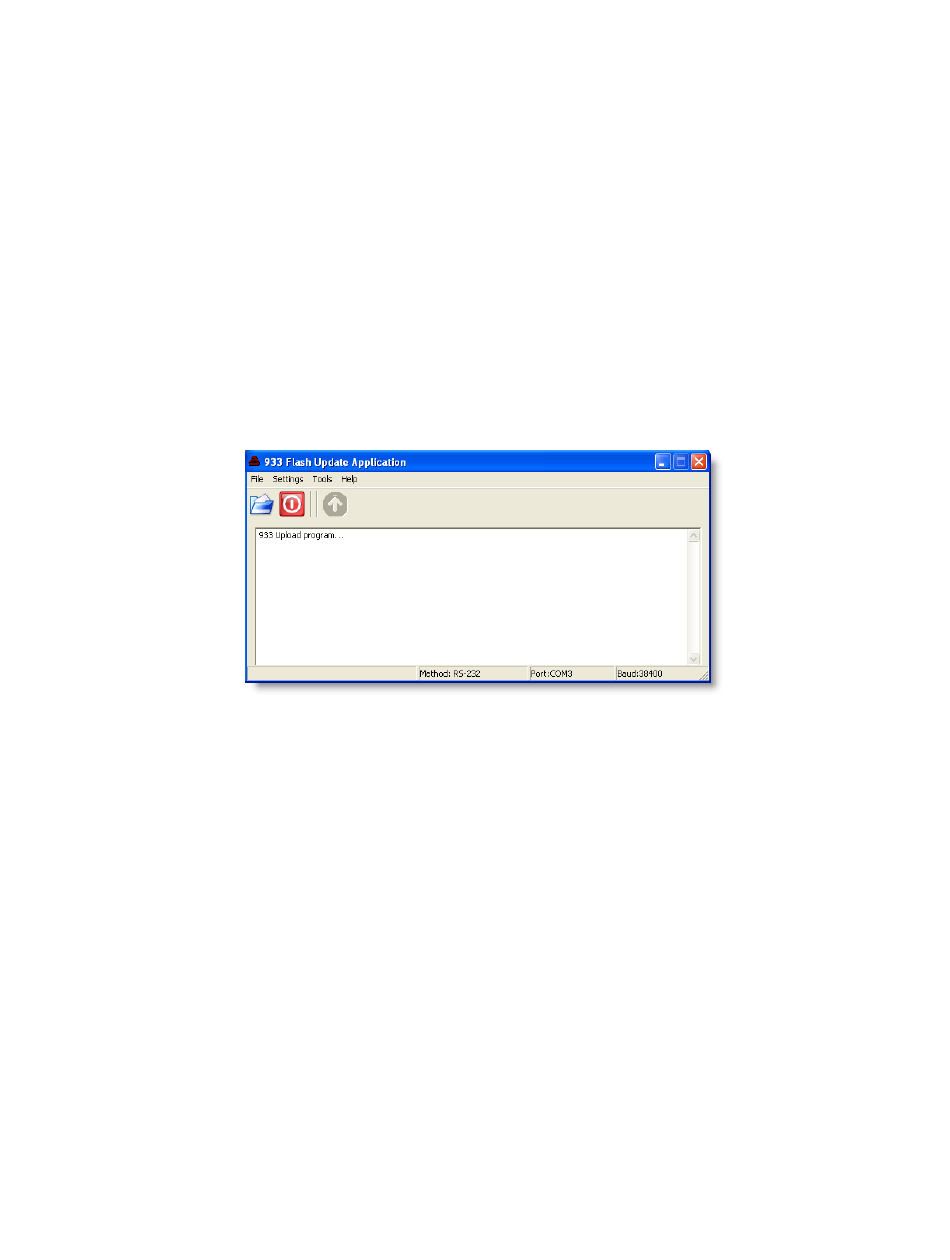

Figure B.1: Starting the 933A Uploader
